Features
| Warranty length | 2 Years |
|---|---|
| Brand | Acapella |
Tech Specs
Transmission
Bass: 20Hz - 350Hz
Drivers: 10" drivers
Midrange: 350Hz - 6000Hz (780mm)
High Freq: 6000 Hz - 40 kHz w TW1
Construction
Bass: bass modules w 10" drivers

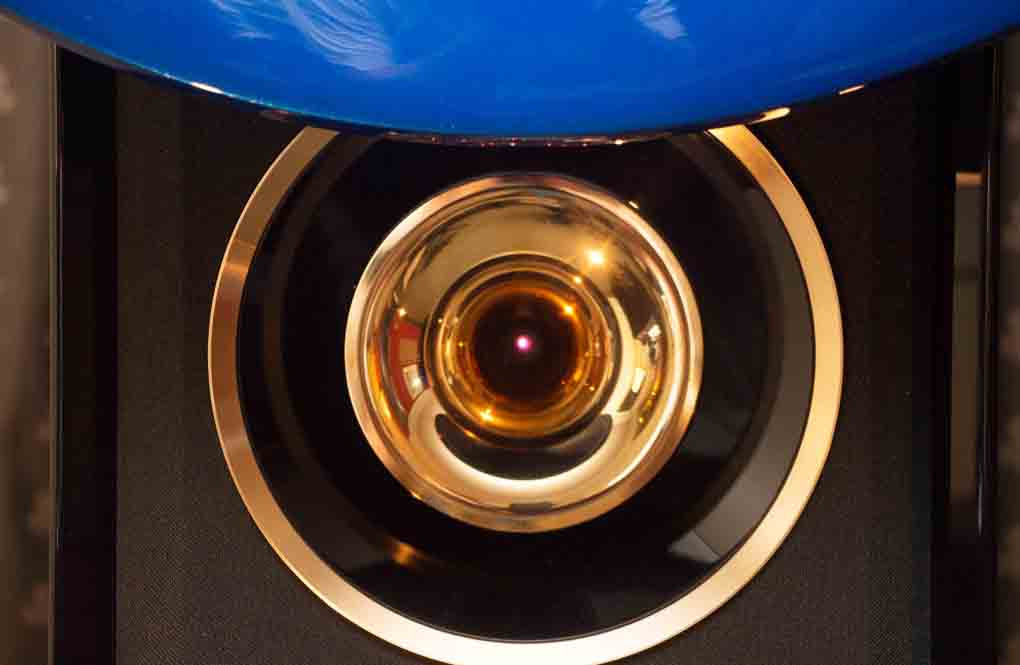

Midrange: 2" driver
Horn: 780mm Hyper spherical
Tweeter: ion with spherical horn
General
Freq Response: 20Hz - 40kHz
Efficiency: 93dB/1W/1m
Power consumption: 15watts
Impedance: 8 ohms
Dimensions (HWD): 1890 x 780 x 940mm
Weight: 140kg
Product Description

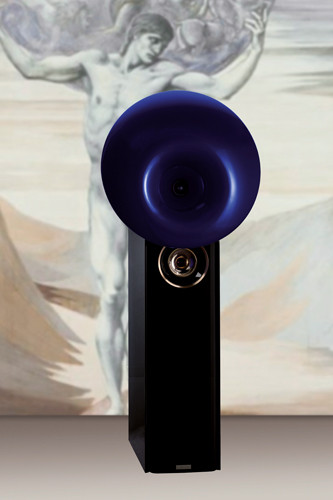

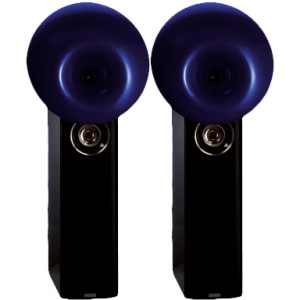

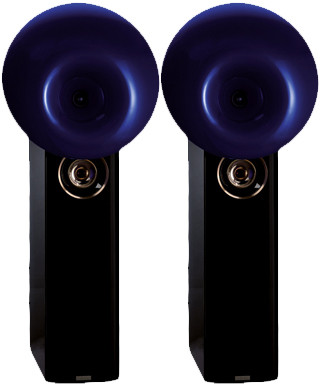

First used in Acapella's 'Poseydon' and 'Apollon' speakers, the Atlas features a hyper spherical midrange horn. This horn configuration is 780mm in diameter and incorporates a 2" driver with perfect phase relationship and omnidirectional sound.
This means you get a remarkably open and transparent sound despite the relatively smaller loudspeaker design. Traditionally accompanied by the Acapella Ion Tweeter TW 1, this highly musical midrange along with the bass foundation is provided in a sleek housing that also serves as the support for the ion tweeter and the spherical horn.
