Features
| Warranty length | 3 Years |
|---|---|
| Colour | Black |
| Brand | Anthem |
Tech Specs
Phono Preamp
- Input Impedance: 100Ω, 47kΩ (MC/MM)
- Input Capacitance: 270pF (MM)
- Max (20Hz-kHz): 3.6/37.7mV (MC/MM)
- Gain (adj ±20dB): 55/35dB (MC/MM)
- RIAA Response: ±0.1dB (20Hz-kHz)
- THD+N (20Hz-kHz): 0.008%/0.005% (MC/MM)
- SNR: (1kHz, IEC-A): 82/96dB (MC/MM)
Freq Response
- DIG: (44.1/192) 10-50kHz (-0.03/-0.5dB)
- Analogue DSP: 10Hz-40kHz (+0.02, -0.2dB)
- Analogue Direct: 10Hz-80kHz (+0,-0.1dB)
Preamp
- Max Out (<0.1%): 2.2Vrms (ANG: 3.3Vrms)
- XLR: (1/2/3) Ground, Normal, Inverted
THD+N
- Digital: 44.1kHz, 0dBFS, 0.0008%
- Analogue: 1Vrms, 0.0020%
SNR
- Digital: 44.1kHz, 0dBFS, 112dB
- Analogue DSP: 2Vrms, 110dB
- Analogue Direct: 2Vrms, 120dB
Power Amp
- Power Out: 8/4/2Ω, (200/400/550W)
- THD (100W) 0.002% / 0.015% (1/20kHz)
- IMD (100W): ITU-R (19+20kHz) 0.0007%
- SMPTE: (60+7k Hz) 0.005%
- SNR (IEC-A, ref 200W): 114 dB
- Freq Response: (20Hz - 20kHz) ±0.1dB
- Bandwidth (-3dB @200W, 8Ω): 80kHz
- Slew Rate: 30 V/μs
- Damping Factor: (20Hz - 1kHz) 330
- Ch Separation: 101/61dB (100/10k Hz)
General
- Power Required: 220-240/120V (50/60Hz)
- Standby Consumption: 0.38/0.45W
- Max Power Output: 500W
- Dimensions (HWD): 172 x 432 x 445mm
- Weight: 18kg (40lbs)
Product Description

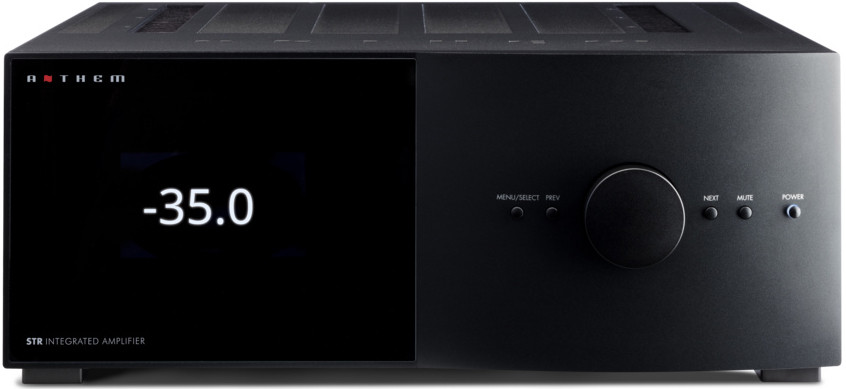

This Anthem STR integrated amplifier in black was opened to show a customer the finish - he ultimately decided to order a silver one, as such this unit was carefully repacked. It is unused, as new and is complete with the Anthem warranty. If you don't mind that the box has been opened and resealed, this is a rare deal on this excellent amplifier.
For more info, see our main Anthem STR integrated amplifier page
