Features
| Warranty length | 5 Years |
|---|---|
| Colour | Black |
| Brand | Arcam |
Tech Specs
- Continuous power output, per channel, 8Ω/4Ω
...2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
...2 channels driven, 1kHz, 0.2% THD 85W/120W
...7 channels driven, 1kHz, 0.2% THD 60W/85W
...Residual noise & hum (A-wtd) <0.15mV
- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Nominal output level 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
...Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 16.5kg
- Weight (packed) 19.8kg
Supplied accessories
- Mains lead
- Remote control with 2 x AAA batteries
- Quick Start Guide (full manual online)
- DAB/FM aerial
- 3 x Wi-Fi/Bluetooth antennas
- Calibration microphone
- USB cable
Product Description

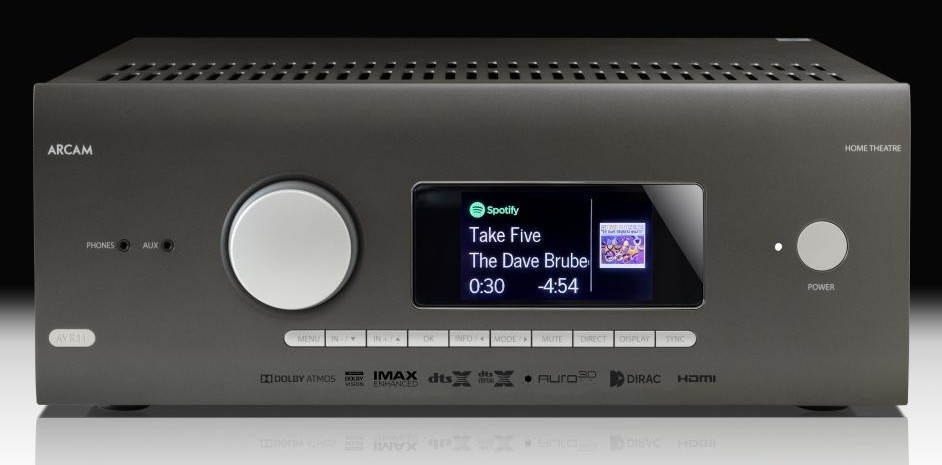

Arcam AVR11 AV receiver is the successor to the AVR10 and has improved on its predecessor offering excellent performance with music and multi channel soundtracks at an attractive price point. AVR11 combines the latest technology with an immersive experience unlike any others we've heard at this level.
Loves Music & Movies
AVR11 is designed first and foremost to love sound and movies equally, allowing them both to truly shine with the highest of fidelity. With built in compatibility for Dolby Atmos, Apple Airplay 2 and Dolby vision to name but a few the AVR11 truly sits up there as a rightful replacement to the AVR10.
Giving The Power
AVR11 features a over-engineered power supply that delivers just the perfect amount of power to drive 7 channels of AB amplification (based on using it with Arcam amplifiers) which ensures you hear the minutest differential in the sound signature that you won’t hear anywhere else.
Gets The Room
This AVR11 delivers perfect room optimisation thanks to Dirac room optimisation included which can be furthered with a Dirac live bass control licence (sold separately) AVR11 also intergrates seamlessly with streaming services such as Spotify Connect, Chromecast, Tidal and the Musiclife app (via UPnP)]
Key Features
- Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding
- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 7 Channels of Class AB power amplification
- Wi-Fi / Ethernet, RS232 and IR control
- Google Chromecast® built-in for streaming audio
- Apple® Airplay2
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP app
- Supports MQA
- Roon Ready

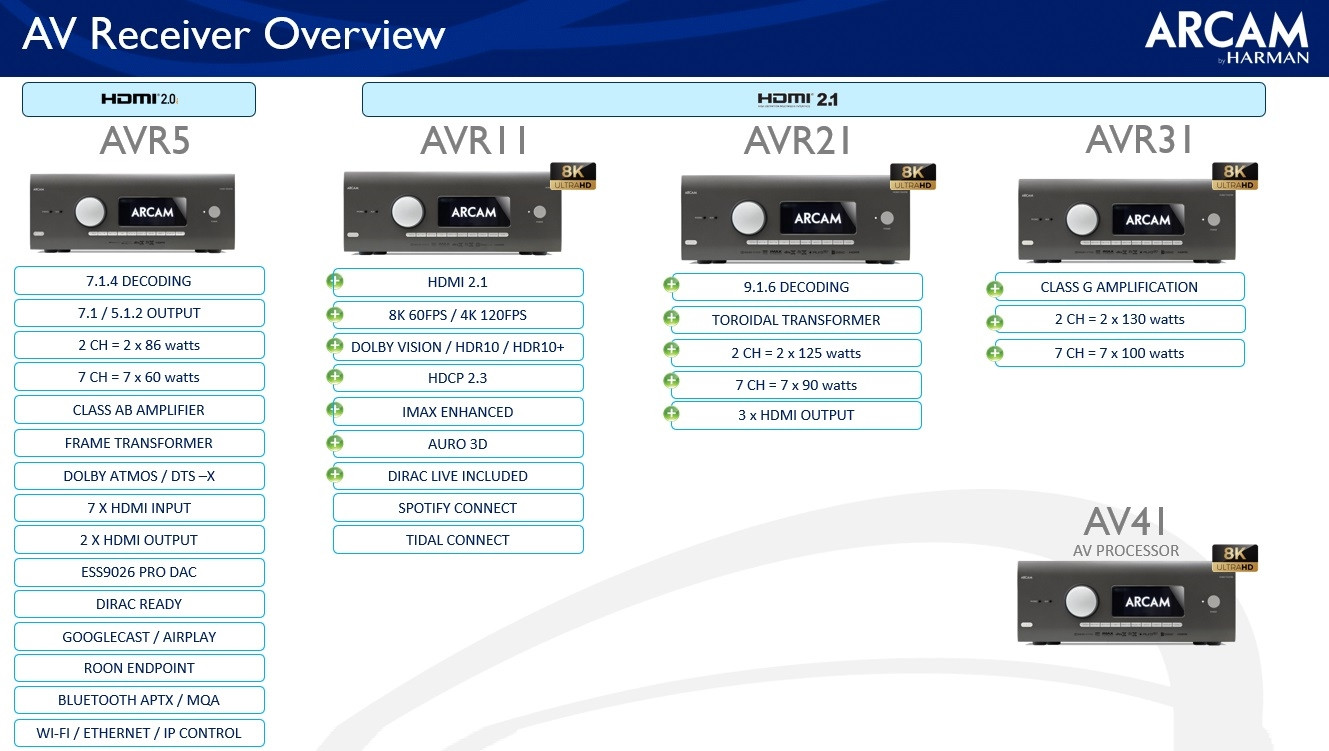

What does AVR11 include that AVR5 doesn't?
- HDMI 2.1
- 8K 60FPS / 4K 120FPS
- Dolby Vision / HDR10 / HDR10+
- HDCP 2.3
- Imax Enhanced
- Auro 3D
- Dirac Live Included
- Spotify Connect
- Tidal Connect
