Features
| Warranty length | 5 Years |
|---|---|
| Colour | Black |
| Brand | Arcam |
Tech Specs
- Continuous power output, per channel, 8Ω/4Ω
...2 channels driven, 20Hz - 20kHz, <0.02% THD 120W/200W
...2 channels driven, 1kHz, 0.2% THD 140W/220W
...7 channels driven, 1kHz, 0.2% THD 100W/180W
...Residual noise & hum (A-wtd) <0.15mV
- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Nominal output level 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
...Power consumption (idle, typical) 100W (Thermal dissipation approx. 350 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 18.1kg
- Weight (packed) 21.4kg
Supplied accessories
- Mains lead
- Remote control with 2 x AAA batteries
- Quick Start Guide (full manual online)
- DAB/FM aerial
- 3 x Wi-Fi/Bluetooth antennas
- Calibration microphone
- USB cable
Product Description

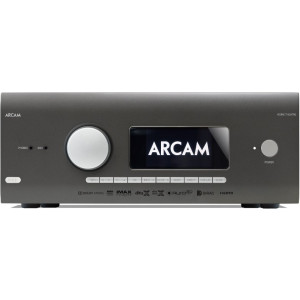

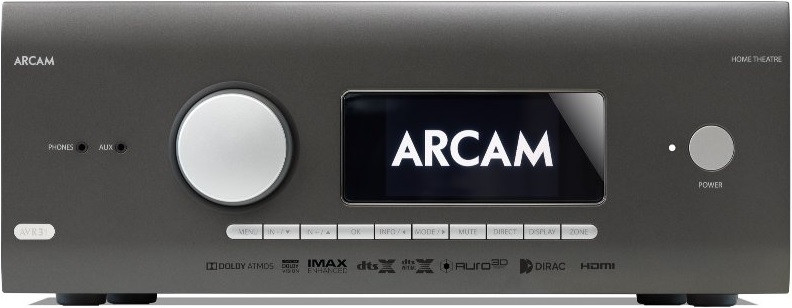

Arcam AVR31 AV receiver replaces the flagship AVR30 (which in itself was outstanding) and improves upon its predecessor in every way possible. This powerhouse is designed to deliver the very best audio performance with a variety of music and multi-channel soundtracks alike.
Pure & Passion
AVR31 boasts with 16 dedicated channels that are Dolby Atmos, DTS:X as well as Auro 3-D enabled it to truly deliver a rich sound in high fidelity across the sound spectrum. There are 7 channels of Class G amplification on this unit that deliver the crispest of sound that other units simply can’t keep up with.
All the inputs
With 7 HDMI inputs, 3 HDMI outputs with Zone 2 (all at HDMI 2.1 standard) this AVR packs some serious firepower to deliver the experience that you crave without any compromising on quality be it visual or audio.
Excellent Support
The AVR31 brings support for intergrated streaming options such as Apple AirPlay 2, Spotify Connect, Tidal Connect, Chromecast and more. All which when combined with the Dirac room optimisation means you can demand the absolute best from it and not be left wanting.
All The Drive
This unit delivers excellent sound from digital sources thanks to the Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators which are optimised for the ultimate listening experience, so you can sit back and relax and not worry you're hearing content as it was intended.
Why AVR31?
Arcam AVR31 is designed from the ground up to deliver quite simply a high power, realistic home cinema experience that can’t be replicated, with rich sound as well as 16 channels of Decoding for multiple codecs to take it that extra mile. You're safe in the knowledge there is very little on the market that comes close.
Key Features
- 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
- 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 7 Channels of high power Class G amplification
- Wi-Fi / Ethernet, RS232 and IR control
- Google Chromecast® built-in for streaming audio
- Apple® Airplay2
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP app
- Supports MQA
- Roon Ready
What does AVR31 include that AVR21 doesn't?
- Glass G amplification for purer sound
- Higher Power 2 CH = 2 x 130 Watts
- Higher Power 7 CH = 7 x 100 Watts
