Features
| Warranty length | 5 years (on registration) |
|---|---|
| Brand | Atlas Cables |
Tech Specs
- Construction: Concentric multicore LF/MF, Solid core HF (1.2mm)
- Material: 6n OFC
- Dielectric: PTFE (Teflon™)
- Screen: none
- Capacitance: 163.98 pF/m
- Inductance: 0.2303 µH/m
- Resistance: 0.0060 Ohms/m
- VOP: 0.69
- Outside Diameter: 8.5mm
Product Description

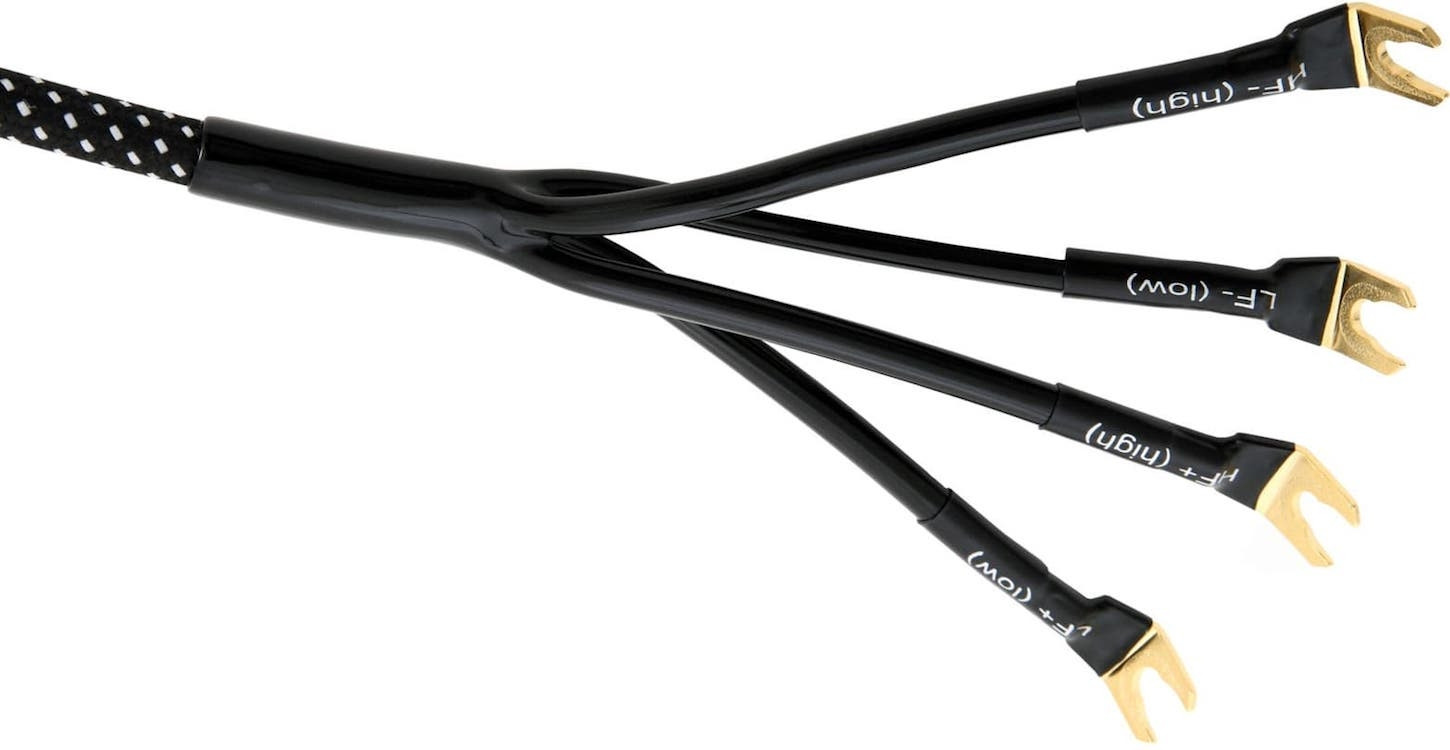

Atlas Hyper Achromatic Bi Wire Speaker Cable Z 2:4 (Terminated Pairs) is the bi-wire variation of Atlas’ Hyper Achromatic Speaker cable.
Why the Bi-Wire 2:4 Cable
Atlas’ Hyper Achromatic Z Bi-Wire cable offers performance benefits when the two halves of the loudspeaker's crossover are electrically separated to allow bi-wiring and bi-amping settings.
OFC Copper
The Hyper Achromatic Z bi-Wire uses conductors that consist of 72 0.25mm² high-purity Oxygen Free Copper strands, which is insulated within a high-efficiency PTFE dielectric coating.
Termination
The cable is terminated with Atlas’ Tin Cobalt finished metal Z plugs. These Aluminium-alloy Z plug’s have non magnetic qualities, like the very popular black ABS, as well as insulating qualities.
The cable is also available with Atlas’ cold-weld high quality OFC spades terminations and Atlas’ Transpose Modular Termination System. The Transpose system options include Z-plugs or OFC spades in gold or silver.
This cable is also available in a 4:4 connector configuration.
