Features
| Warranty length | 2 Years |
|---|---|
| Brand | Audio Technica |
Tech Specs
- Type: Dual Moving Coil
- Mounting: 1/2” centers
- Frequency Response: 15 - 50,000Hz
- Body Material: Aluminium/Synthetic Resin
- Channel Separation: 30dB (1kHz)
- Output Channel Balance: 0.5dB (1kHz)
- Output Voltage: 0.4mV (1kHz, 5cm/sec)
- Vertical Tracking Angle: 23°
- Vertical Track: 1.8 - 2.2g (2g stnd)
- Stylus Curvature Radius: Shibata
- Stylus Construction: Nude square shank
- Cantilever: Nude tapered boron
- Coil Impedance 10Ω (1kHz)
- Coil Inductance 22 µm (1kHz)
- DC Resistance: 10Ω
- Compliance: 40×10, 10×10 (6cm/dyne)
- Load Impedance: Min 100Ω
- Dimensions (HWD): 16 × 16.6 × 26.5mm
- Weight: 6.9g
Product Description

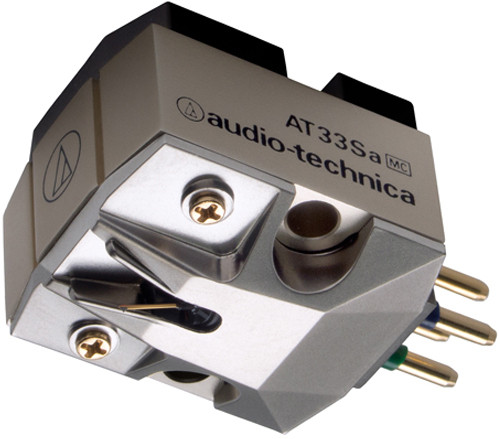

The AT33Sa is the first Audio-Technica MC cartridge model to feature a Shibata stylus. In addition to its superior high-range performance as a line-contact stylus, the Shibata stylus produces mid and bass sound that is strong and rich. The Shibata stylus is mounted on a boron cantilever with a double damper to greatly improve sound quality.
Tapered Boron Cantilever
The AT33Sa uses a tapered boron cantilever. Tapering the cantilever and revising the number of coil rotations reduce the weight, giving the cartridge better high range performance and wide range reproduction.
Neodymium Magnet
The neodymium magnet provides maximum energy of 50kJ/m3 and the permendur yoke has high saturation flux density with outstanding magnetic properties, which further enhances the concentrated magnetic field of the coil gap. Together, they further boast the magnetic field concentrated in the coil gap area.
PCOCC Coil
The PCOCC (Pure Copper by Ohno Continuous Casting process) is a monocrystalline high-purity oxygen-free copper coil which enables purer transmission because it is not subject to grain boundaries in the direction of transmission.
Dual Moving Coil
The basic structure is an original MC type, with separate cylindrical coils to the left and right channels. Since power is generated independently in each of the left and right channels, this structure offers truly superior separation. If the signal from the opposite channel escapes, this can cause intermodulation distortion and have a decisive impact on audio quality and how the stereo sound spreads.
The structure of this product ensures a clear and smooth sound. Additionally, the two coils have a reverse-V shape which reduces effective moving mass as seen from the stylus tip, limiting unnecessary movement of the coil and further eliminating distortion.
VC Mould
The VC mould that affixes the coils is made with hard synthetic resin containing potassium titanate to make it highly strong and rigid. This improvement results in a lighter product, which reduces unnecessary vibration.
Tough Rigid Body
The product’s housing is made of precision-cast hard aluminium alloy. Hard synthetic resin sandwiching in the structure on the top and bottom suppresses parasitic resonance. This minimises unnecessary noise while enhancing rigidity and the signal-to-ratio.
