Features
| Warranty length | 2 Years |
|---|---|
| Brand | Audio Technica |
Tech Specs
- Type: VM Type
- Mounting: 1/2” centers
- Frequency Response: 20 - 30,000Hz
- Channel Separation: 30dB (1kHz)
- Output Channel Balance: 1.0dB (1kHz)
- Output Voltage: 4.0mV (1kHz, 5cm/sec)
- Vertical Tracking Angle: 23°
- Vertical Track: 1.8 - 2.2g (2g stnd)
- Stylus Curvature Radius: Special Line Contact
- Stylus Construction: Nude Rectangular Shank
- Stylus Size: 0.28 x 1.5 mil
- Cantilever: Aluminium Tapered Pipe
- Coil Impedance 2700Ω (1kHz)
- DC Resistance: 10Ω
- Compliance: 40×10, 10×10 (6cm/dyne)
- Load Impedance: 47,000Ω
- Load Capacitance: 100 – 200pF
- Dimensions (HWD): 17.3 x 17 x 28.2mm
- Weight: 8.0g
Product Description

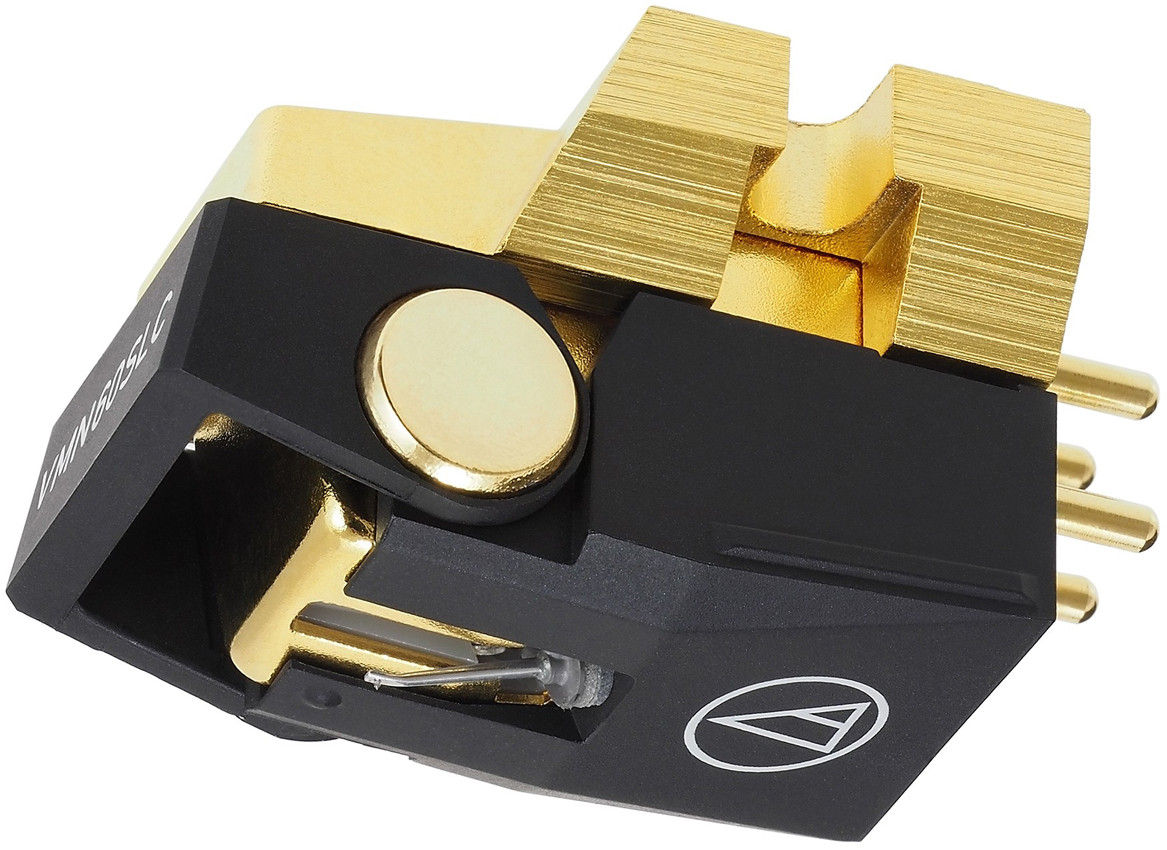

Audio Technica VM760SLC Moving Magnet Phono Cartridge uses an ultra-lightweight stylus tip ground to a high level of precision to achieves low distortion rate with fuller frequency reproduction during playback.
Dual Magnet Design
Audio Technica’s internationally-patented dual magnet design replicates the structure of the cutter head. Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V".
The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Paratoroidal Coils
Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. The permeability of the cores is also optimised through the use of laminated cores.
Centre Shield Plate
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
700 Series
Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli. The Special Line Contact with diamond stylus construction has the ability to track the most complex record groove.
Key Features
- Aluminium tapered cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between L/R channels reduces crosstalk
- Die-cast aluminium alloy housing reduces vibration
