Features
| Brand | Audio Affair |
|---|
Tech Specs
Audiolab 6000a
Type
- Amp: Integrated with DAC
- Class AB power: 2x 50/75W (8/4O)
- DAC: ESS Sabre32 Reference
- Digital filter: 3 user-selectable
- Active filter: Class A post-DAC
- Low noise JFET MM phono stage
- Dedicated current-fdbk headphone amp
- 3 op modes: Integrated/Pre-Power/Pre
Performance
- Gain: +8/55dB (Line/Phono MM)
- Sensitivity: 720/3.1mV (Line/Phono)
- Impedance: 10K/47K,100pF (Line/Phono)
- THD: < 0.0004% (Line, 1KHz @ 2V)
- Freq Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max (0dB)
- SNR: > 110/76dB (Line/Phono, A-wtd)
DAC
- DAC: ES9018K2M
- THD: < 0.0006% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.05V
- Max Sampling Frequency: 192KHz
- S/N Ratio: > 112dB (A-weighted)
Power Amplifier
- Gain: +29dB
- Max Out: 2x 50/75W (8/4O, <1%)
- Input Sensitivity: 720mV
- THD: <0.003% (1kHz @ 40W/8ohm)
- S/N ratio: > 110dB (A-weighted)
- Max Output Current: 9A
Connections
- Bluetooth streaming: aptX
- Digital In: 4 SPDIF (2/2 opt/coax)
- Analogue In: 4 (3 line + MM phono)
- Power amp input
- USB In: for firmware updates
- 12V trigger: In/Out
- Speaker binding posts out
- Outputs: Headphone and preamp
Headphone Amplifier
- THD: < 0.01% (1kHz, 50mW)
- Impedance: 2.35/20-600O (Out/Load)
General
- Standby Consumption: <0.5W
- Power Requirements: 240V~, 50-60Hz
- Dimensions (WHD): 445 x 65.5 x 300mm
- Weight: 7.8kg (Net)
KEF LS50 Meta
Drivers
- Design: Two-way bass reflex
- Driver array: Uni-Q drive units
- MF/LF: 5.25" aluminium cone
- HF: 1" vented aluminium dome
- HF: Metamaterial Absorption tech
Performance
- Crossover frequency: 2.1kHz
- Freq range (-6dB): 47Hz - 45kHz
- Typical bass response (-6dB) 26 Hz
- Freq response (±3dB) 79Hz - 28kHz
- THD (90dB, 1m): <0.4%, 175Hz - 20kHz
- THD (90dB, 1m): <0.1% 300Hz - 10kHz
Amplifier
- Maximum output: 106dB
- Amp power (recommend): 40-100W
- Nominal impedance: 8Ω (min. 3.5Ω)
- Sensitivity (2.83V/1m) 85dB
General
- Dimension (HWD): 302 x 200 x 280.5mm
- Weight: 7.8 kg (17.2 lbs)
Product Description
Audiolab 6000A Amplifier and KEF LS50 Meta Speaker Package consists of an integrated amplifier and a pair of compact bookshelf speakers.

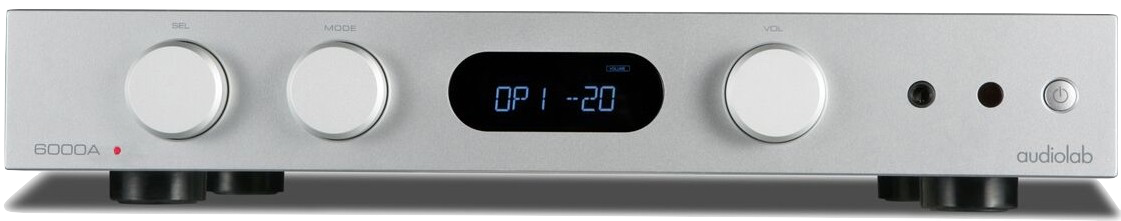

Audiolab 6000A
Audiolab’s 6000A is a flexible integrated amplifier designed to meet all the requirements of the modern Hi-Fi system. It is truly versatile, equipped with both digital and analogue inputs, a phono stage to eliminate the need of an external phono pre-amp, headphone amp and built-in Bluetooth so you can stream wirelessly from your phone and tablet.
Find out more information on the Audiolab 6000a amp here.
KEF LS50 Meta Speakers
KEF’s LS50 Meta Speaker pair are high precision, powerful loudspeakers built on KEF’s innovative and successful acoustic technology. Based around the 12th Generation of Uni-Q driver array design and Metamaterial Absorption Technology, the solid stand-mount loudspeakers produce detailed and clear audio to fill your room.
Find out more information on the KEF LS50 Meta Speakers here.
