Features
| Brand | Audio Affair |
|---|
Tech Specs
Audiolab 6000A Integrated Amplifier
- Amp: Integrated with DAC
- Class AB power: 2x 50/75W (8/4O)
- DAC: ESS Sabre32 Reference
- Digital filter: 3 user-selectable
- Active filter: Class A post-DAC
- Low noise JFET MM phono stage
- Dedicated current-fdbk headphone amp
- 3 op modes: Integrated/Pre-Power/Pre
- Gain: +8/55dB (Line/Phono MM)
- Sensitivity: 720/3.1mV (Line/Phono)
- Impedance: 10K/47K,100pF (Line/Phono)
- THD: < 0.0004% (Line, 1KHz @ 2V)
- Freq Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max (0dB)
- SNR: > 110/76dB (Line/Phono, A-wtd)
- DAC: ES9018K2M
- THD: < 0.0006% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.05V
- Max Sampling Frequency: 192KHz
- S/N Ratio: > 112dB (A-weighted)
- Gain: +29dB
- Max Out: 2x 50/75W (8/4O, <1%)
- Input Sensitivity: 720mV
- THD: <0.003% (1kHz @ 40W/8ohm)
- S/N ratio: > 110dB (A-weighted)
- Max Output Current: 9A
- Bluetooth streaming: aptX
- Digital In: 4 SPDIF (2/2 opt/coax)
- Analogue In: 4 (3 line + MM phono)
- Power amp input
- USB In: for firmware updates
- 12V trigger: In/Out
- Speaker binding posts out
- Outputs: Headphone and preamp
- THD: < 0.01% (1kHz, 50mW)
- Impedance: 2.35/20-600O (Out/Load)
- Standby Consumption: <0.5W
- Power Requirements: 240V~, 50-60Hz
- Dimensions (WHD): 445 x 65.5 x 300mm
- Weight: 7.8kg (Net)
KEF Q150 Speakers
- Model: Q150
- Design: Two-way bass reflex
- Drive Units: 130mm aluminium Uni-Q,
25mm vented aluminium dome HF
- Frequency Range Free Field: 47Hz (-6dB)
- Frequency Response: 51Hz-28kHz (±3dB)
- Crossover Frequencies: 2.5kHz
- Maximum Output: 108dB
- Amplifier RequirementS: 10-100W
- Sensitivity: 86dB (2.83V/1m)
- Nominal Impedance: 8 Ohms (min.3.7 Ohms)
- Dimensions (H x W x D): 303 x 180 x 278 mm, 307 x 180 x 278 mm (with Rubber Feet)
- Weight: 5.6 KG
- Unit Measurement: Pair
Product Description

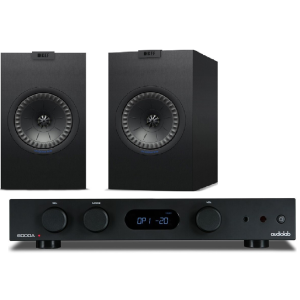

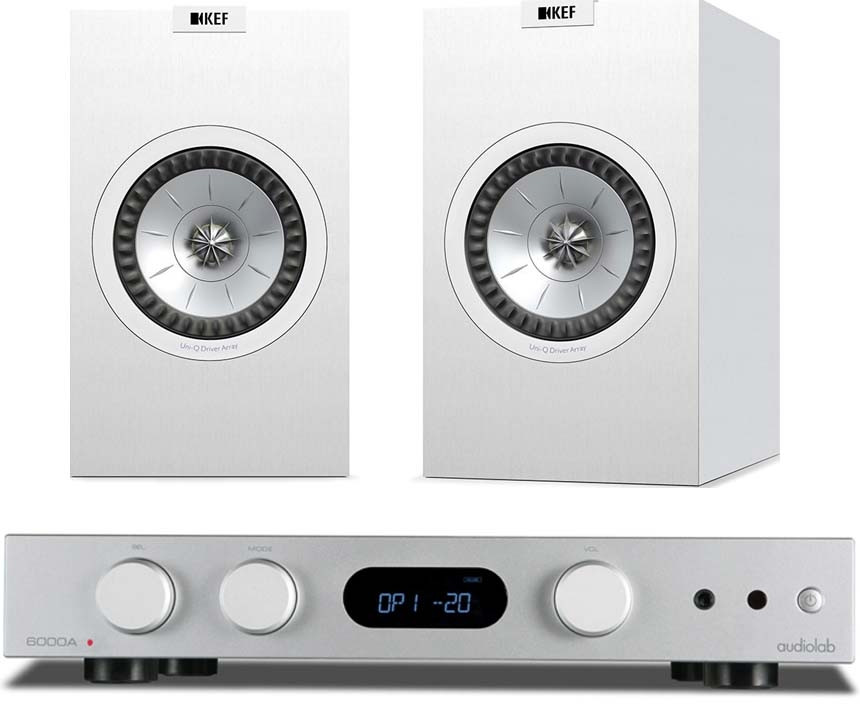

An Audio Affair recommended package combining the Audiolab 6000A Integrated Amplifier and KEF Q150 Speakers.
Audiolab 6000A Integrated Amplifier
This integrated amplifier is made for the modern day audio enthusiast. With integrated digital and analogue connections, as well as wireless connectivity for personal audio devices, it offers flexibility and delivers an dynamic range of sound.
KEF Q150 Speakers
KEF Q150 is a compact bookshelf speaker in the Q series range. Featuring an enhanced Uni-q driver and Computational Fluid Dynamics. For it's small stature it offers an impressively detailed sound with crystal clear clarity and reduced internal resonance.
More Information?
For more info on our Integrated Amplifier, click our main Audiolab 600A page
For more info on our Speakers , click our main KEF Q150 page.
