Features
| Warranty length | 5 Years |
|---|---|
| Colour | Black |
| Brand | Dali Speakers |
Tech Specs
- Frequency Range: (+/-3 dB) [Hz] 57 - 25,000
- Sensitivity: (2,83 V/1 m) [dB] 90.0
- Nominal Impedance: [ohms] 2 x 8
- Maximum SPL [dB]: 105
- Recommended Amplifier Power: [W] 2 x 20-80
- Crossover Frequency [Hz]: 2,600
- High frequency driver, Quantity m2 x 20 mm
- High frequency driver, Diaphragm type Soft Textile Dome
- Low frequency driver, Quantity 1 x 6½"
- Low frequency driver, Diaphragm type Polypropylene Cone (Dual voice-coil)
- Enclosure type: Open back
- Connection Input: 2 x Single Wire
- Magnetic Shielding
- Recommended Placement: In-Ceiling

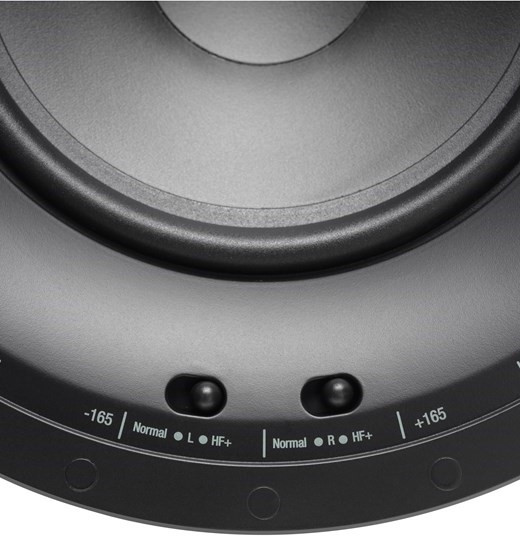

- Functions: 2 x Normal/HF+
- Dimensions (ØxD) [mm]: 250 x 99.5
- Cut-Out Dimensions (ØxD) [mm]: Ø225
- Optional Accessories: Square Grille
- Weight [kg]: 2.0
Product Description

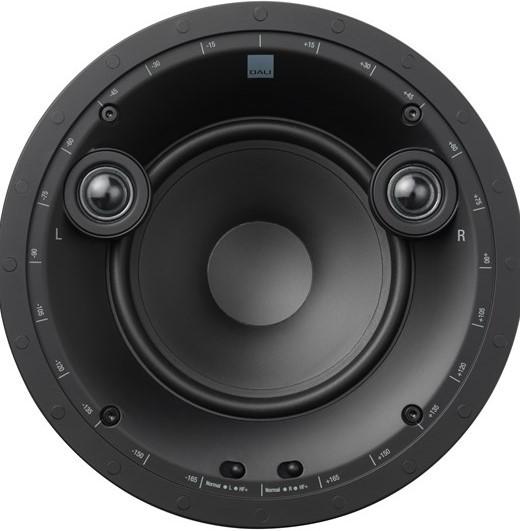

Dali Phantom E-60 S Ceiling Speaker is the first custom install stereo speaker from the Danish hifi specialists. It's compact build features two 20mm soft dome tweeters, a design customised for a seamless fit in any wall and ability to fill any room large or small.
Invisible Design
The Phantom E-60 S is part of Dali's Phantom E-series for custom installation. You can place this speaker anywhere in a room, even at challenging positions and on-off axis due to two audio settings used to adjust the performance of the speaker. It has a near invisible design with super slim magnetic front grilles that blend near perfectly into any ceiling. The grilles can be painted to match any interior, offering an ultra discreet installation.
Easy Installation
You don't have to worry about a complicated setup as these E-60 S uses a dogleg mounting system that reduces the installation process to a simple one-step action. You just tighten the dedicated screws to swing out the dogleg brackets and you're done.
Secure Fit
These in ceiling speakers are wide dispersion which is great for use flush mounting against a wall or ceiling. Thicker materials have been used for the outer edges to ensure a stronger, more secure fit against the mounting area and improve speaker rigidity.
Unique Crossover
The E-60 S has a signal path in a dual mono construction with separate inputs and crossover PCB's for each channel. The crossover is uniquely designed for the E-60 S and uses PTC to safeguard the driver components from damage and overheating caused by very loud volumes of play. Rattling is also eliminated due to optimised internal wiring within the speaker.
Soft-Dome Tweeters
Featuring two 2mm super lightweight soft dome tweeters coupled with Phantom's acclaimed polypropylene woofer to deliver a top class two-channel performance. Stereo performance is optimised due to an 144mm distance between the tweeters, and discrete right and left signals from input to drivers thanks to the separate crossover boards.
Flexible Woofer
The woofer is super flexible, allowing the Phantom E-60 S to be used in spaces traditional Dali speakers are unable to. It has a tilted and angled woofer for an enhanced sound staging and better directionality. It uses a low loss cone, magnet motor system and surround for a high quality home audio experience.
