Features
| Shape | Square |
|---|---|
| Warranty length | 2 Years |
| Brand | Dali Speakers |
Tech Specs
Design
Speaker Type :Subwoofer
LF Driver: 9" long stroke Aluminium
Enclosure Type: Bass Reflex
Magnetic Shielding: No
Place: Floor, Near wall or corner
Recommended Distance: 10 - 30cm
Sound Characteristics
Freq Range: (+/-3dB) 37-200Hz
Maximum SPL: 111dB
Crossover Freq: 40 - 120Hz
Bass Reflex Tuning: 39.0Hz
Input Impedance: 25kΩ
Inputs: Mono (LFE), RCA, Stereo
Functions: Crossover Freq, Phase Switch
Power
Max Amp Power Out: 220 RMS W
Continous IEC: 170 RMS W
Standby: (Auto Power) On/Off Switch
Volume: Gain
Max Power Consumption: 250W
General
Accessories Included: Manual
Finish: Black Satin, White Satin
Dimensions (HWD): 307 x 288 x 311mm
Weight: 11.0 Kg
Product Description

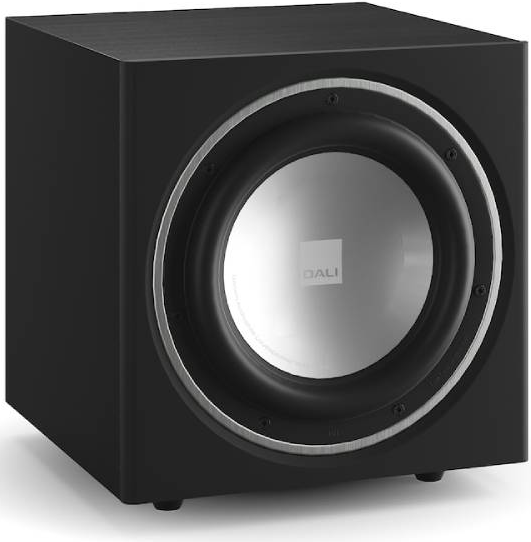

The launch of the DALI SUB E-9 F marks a new stage of what is possible at this level of subwoofers, available in black satin or white satin (walnut and gloss finishes are now discontinued). The new subwoofer from DALI features a 9” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

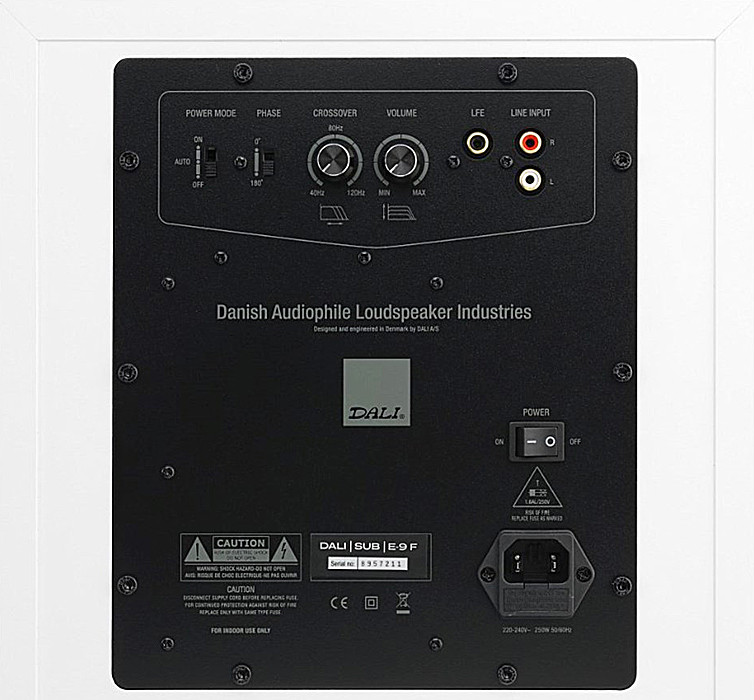

The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
SUB E-9 F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall.

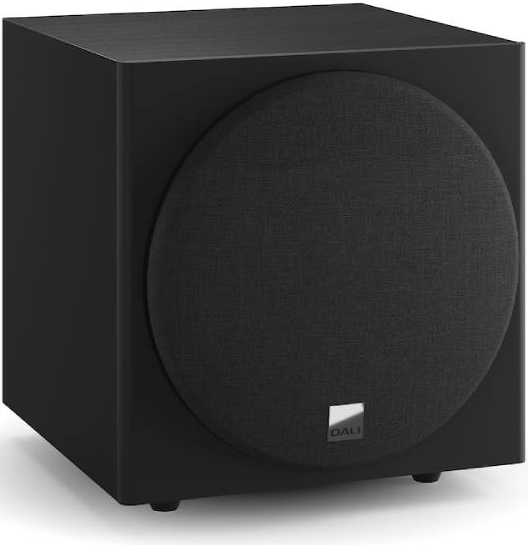

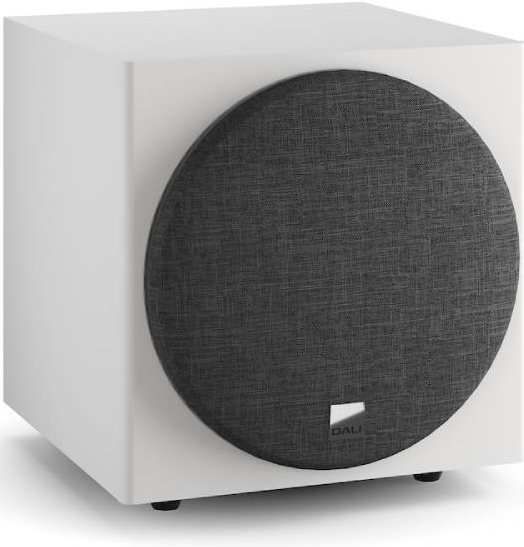

Please note: supplied from Dali without grille but the matching grille (shown in some photos) is available separately (and can be mounted by magnets only – when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed).
