Features
| Shape | Square |
|---|---|
| Warranty length | 2 Years |
| Brand | Focal JM Labs |
Tech Specs
Type: 2-way sealed enclosure In-Wall
Cut-out Size (HW): 379x262mm
Frame size (HWD): 16-1/3 x 11-3/4"
Depth from wall: 99mm
Adjustment Tweeter: 3dB / 0dB / + 3dB
Protection autoreset: Polyswitch fuse
Freq response (+/-3dB): 60Hz - 40kHz
Mid/Bass: 6-1/2" (16.5cm) "W"
HF: 27mm pure Beryllium IAL inverted dome
Recommended amplifier power: 25 - 150W
Crossover frequency: 2 600Hz
Nominal impedance: 8 Ohms
Sensitivity (2.83 V/1 m): 88dB
Net weight: 14.1lb (6.4kg)
Product Description

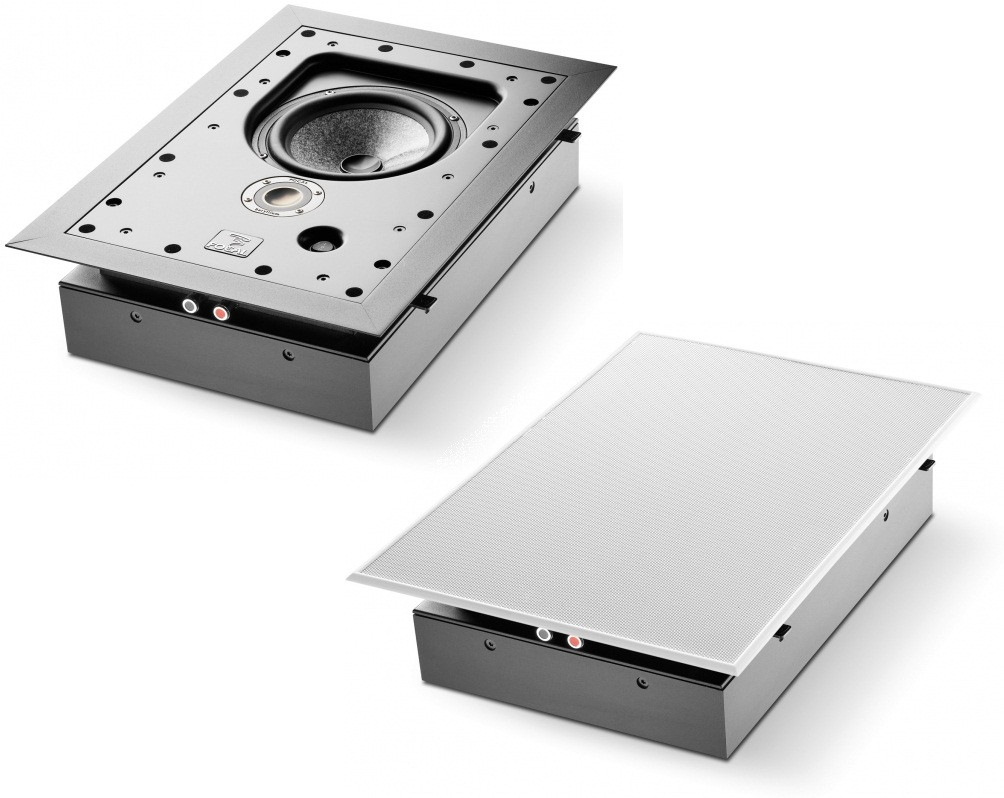

The Focal Electra IW 1002 BE is designed to compete with any high-end loudspeaker thanks to its pure Beryllium inverted dome tweeter, and its latest generation W cone woofer loaded with integrated sealed volume. The highest-fidelity in invisible version.
'W' Composite Sandwich Cone
The 'W' composite sandwich cone employed in the Electra II provides three unique characterises that optimise acoustic performance. Lightness, rigidity and damping are completely controlled allowing for the frequency response curve to be totally optimised, for the purest audio signal transmission.
Berylium Dome Tweeter
Focal Elecra II IW1002Be On Wall Frame features a pure Beryllium inverted dome tweeter which is able to cover over 5 octaves. Beryllium material was selected for it's incredible rigidity, it improves the perception of micro details such as transients and offers unmatched levels of purity.
IAL Technology
Employed in these on wall speakers is an innovative technology called Infinite Acoustic Load (IAL) for exceptional sound definition. This technology is found in the tweeter to achieve an extended frequency response with incredible definition.
