Product Video
Features
| Shape | Square |
|---|---|
| Warranty length | 2 Years |
| Brand | Focal JM Labs |
Tech Specs
Type: 3-way sealed In-Wall
Cut-out Size (HW): 664x262mm
Depth from wall: 99mm
Adjustment Tweeter: -3dB/0dB/+3dB
Adjustment Midrange: -3dB/0dB/+3dB
Protection Autoreset: Polyswitch fuse
Recom amplifier power: 25 - 240W
Crossover frequency: 400hz - 2 000Hz
Nominal impedance: 8 Ohms
Sensitivity (2,83 V/1 m): 90dB
Frequency response (+/-3dB): 49Hz - 40kHz
Net weight: 22Ib (10kg)
Product Description

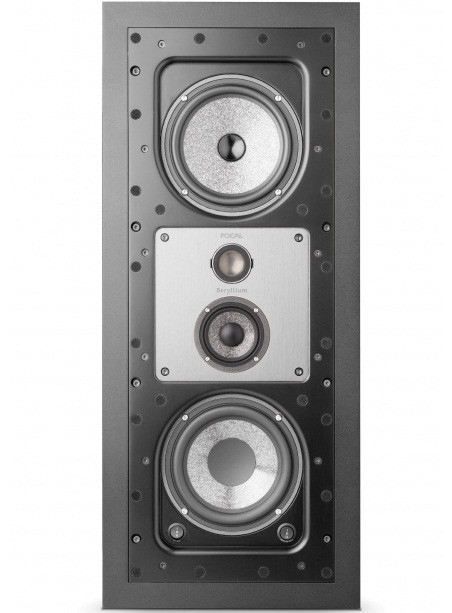

The Focal Electra IW 1003 BE integrates the best of focal; Beryllium IAL tweeter, Utopia 3 latest generation "W" cones, OPC filtering, and passive radiator. This reference in-wall loudspeaker is the high-end traditional alternative louspeaker is a perfectly discreet choice for public address systems.
'W' Composite Sandwich Cone
The mid-range driver and passive radiator feature 'W' cone which forms an exclusive composite sandwich allowing complete optimisation of the frequency response curve due to maintaining fantastic control of three key characteristics; rigidity, lightness and damping. This optimises acoustic performance for a high quality speaker performance.
Pure Beryllium IAL Tweeter
The Beryllium inverted dome tweeter has the unique ability to cover more than 5 octaves. Selected for it's incredible rigidity, Beryllium material improves the perception of micro details such as transients and delivers an ultra-wide response from 2kHz to 40kHz.
Focal Technologies
The Electra wall speakers incorporate the best Focal technologies. Infinite Acoustic Load (IAL), is an advanced technology employed to extend the frequency response with incredible definition. OPC filtering provides excellent phase control, adjusts the tweeter levels and has wall boost control connection.

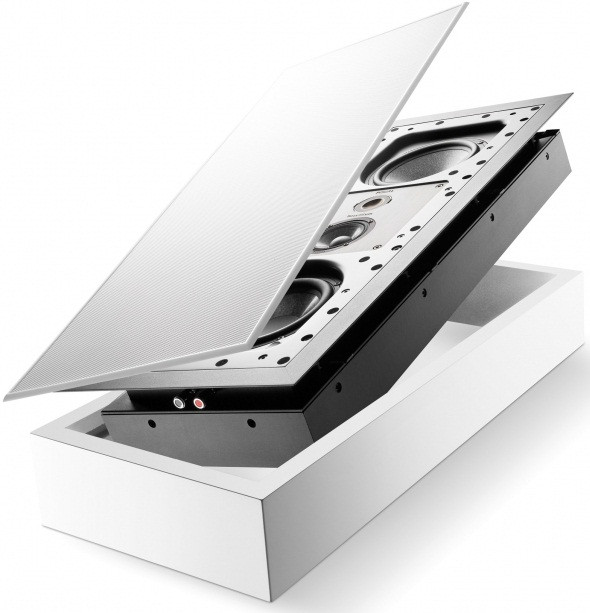

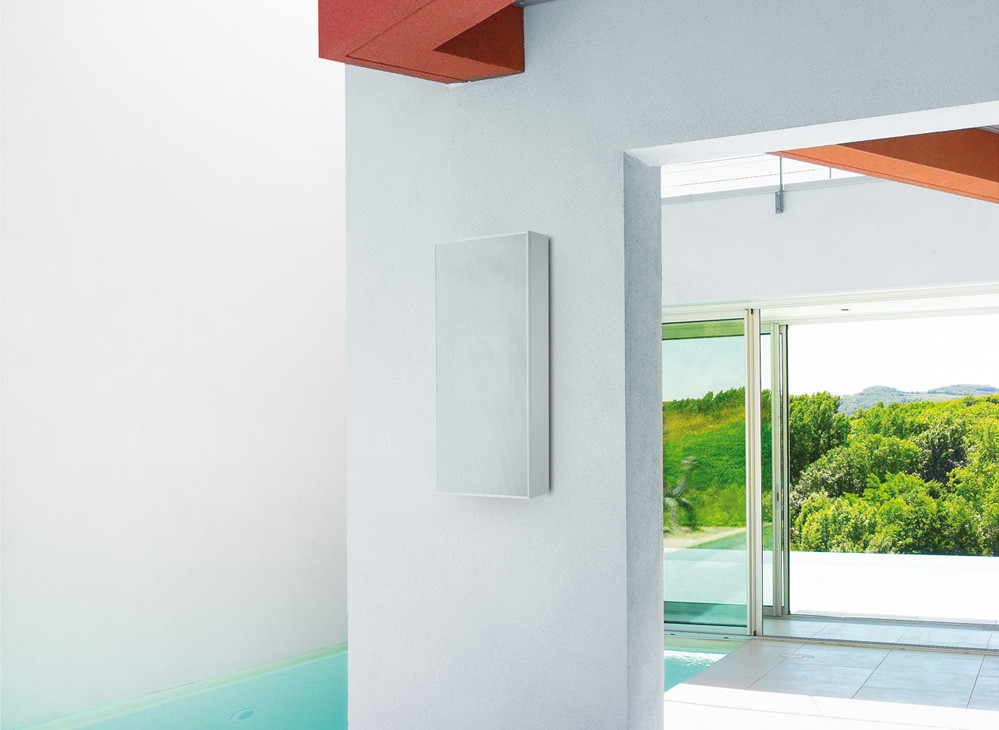

Easy Installation
The Focal Electra II IW1003Be On Wall Frame features a paintable grille for seamless integration into your living environment. The speakers can be mounted horizontally or vertically and installation is quick and easy thanks adjustable aluminium supports.
