Tech Specs

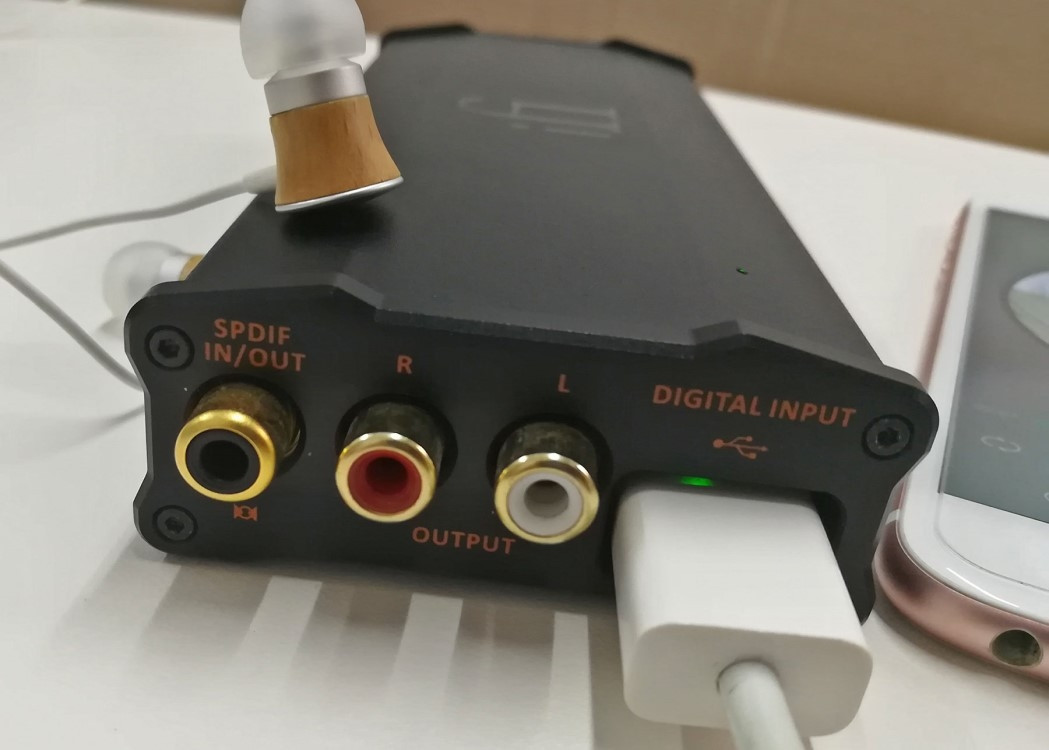

Inputs/Outputs:
- Inputs (rear): USB 2.0 type A “OTG” Socket (with iPurifier technology built-in)
- Intelligent SPDIF Coaxial
- SPDIF Optical
- Outputs (rear): Audio RCA L+R
- Intelligent SPDIF Coaxial
- Output (right side): SmartPower Socket
Controls:
- Controls (front):
- HP Output: Audio 6.3mm Headphone Jack
- Volume with Power On/Off switch: Precision analogue volume control
- 3.5mm Input
- X-Bass - On/Off
- 3D Holographic Sound: On/Off
Controls (left side):
- Power Mode: Turbo, Normal, Eco
- Polarity: Normal/Inverted
- Filter: 3 positions, 6 filters
Controls (bottom):
- Line Direct/Preamplifier: Preamplifier function Enable/Disable, 0/9dB gain selectable
- iEMatch: Perfect-matching circuit for IEMs (eliminate hiss)
DAC section:
- DAC: Dual-core DSD, DXD, PCM DAC by Burr Brown & Bit-Perfect DSD processing, - Bit-Perfect PCM processing
- Clock: Ultra low jitter GMT computer controlled Femto Clock
- Audio Formats: DSD 512/256/128/64 - 24.6/22.6/12.4/11.2/6.2/5.6/3.1/2.8 - DXD 2x/1x 768/705.6/384/352.8kHz & PCM 768/705.6/384/352.8/192/176.4/96/88.2/ 48/44.1kHz
- Filters: PCM: Bit-Perfect Processing/Minimum Phase/Standard - DSD: - Extreme/Extended/Standard Range - DXD: Bit-Perfect Processing
- Dynamic Range (Line): >117db(A)
- THD & N (0dBFS Line): <0.003%
- Output Voltage (Line): >2V
- Output Impedance (Zout): < 240Ω
- Jitter (correlated): Below AP2 test set limit
Headphone Power Output:
- HP Amp Output: Power (max) - Power (continuous.)
- Turbo mode: 10.0V/4,000 mW @ 16 Ohm - >1560 mW @ 64 Ohm
- Normal mode: 5.5V/1,900 mW @ 16 Ohm - >950 mW @ 32 Ohm
- Eco mode: 2.0V/500 mW @ 8 Ohm - >250 mW @ 16 Ohm
- Dynamic Range (HP): >115dB(A) (Eco Mode, 2V Out)
- THD &N (HP 500mW/16R): < 0.008%
- Output Voltage (HP): >8V (Turbo Mode)
- Output Impedance (Zout): <1Ω (iEMatch not engaged)
- Maximum Output Power: 4,000mW @ 16 Ohm Load
- Continuous Output Power: 1,000mW @ 64 Ohm Load
- Weight: 784g
Product Description
iFi Audio Micro iDSD Black Label DSD DAC and headphone amplifier delivers high quality audio with warmth and depth housed in a cool and contemporary unit that you can carry around with ease and enjoy up to 12 hours battery life.
Warmer, Smoother Sound
Improve the sound for your speakers or headphones with the Micro iDSD Black Label, which breathes new life in to your audio devices. It delivers exceptional warmth and smoothness with a sense of depth to your music, ultimately making your music sound better than ever.
Super-powerful
The Micro iDSD Black Label is the worlds most powerful battery powered DAC and headphone amp. It achieves an unparalleled native playback and enjoys cleaner, richer sound with XBass+ and 3D+ technology.
iFi Audio Technology
iFi Audio’s XBass+ technology cleans and restores the bass to give you an improved sound. 3D+ is designed to open up your music to create an immersive and wide experience.
Drives All Headphones
The Micro iDSD has 4,000mW of power that can drive some of the most sensitive IEM's and most demanding headphones on the market. It comes equipped with 3 power output settings, Eco, Normal and Turbo, allowing you to adjust it to any in ear units or headphones.
Battery Life
The Micro IDSD black label has a battery life of up to 12 hours and comes with USB charging port so you can charge your phone.
