Features
| Shape | Interesting |
|---|---|
| Brand | iFi Audio |
Tech Specs
- Input Voltage: DC 5V/2.5A

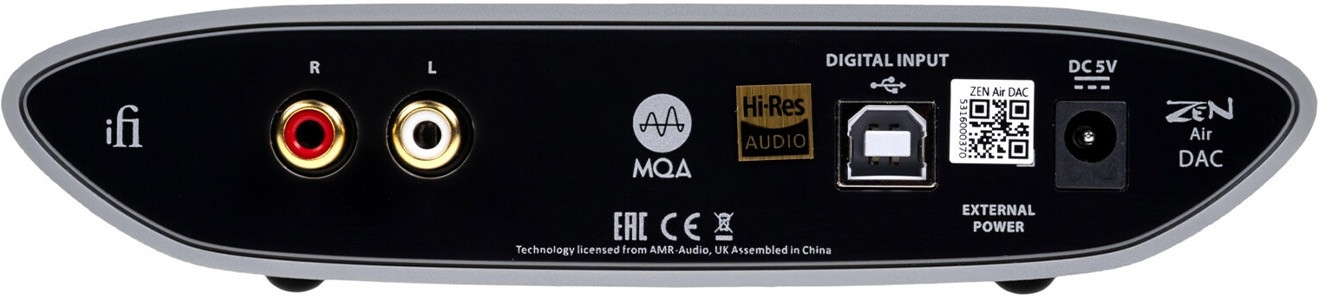

- Input: USB 2.0 B Socket
- Formats: 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM, 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD, 353/384KHz DXD, MQA
- DAC: Bit-Perfect DSD & DXD DAC by Burr Brown
- Power consumption: No Signal ~0.5W / Max Signal ~2.5W
- Dimensions: 158 x 117 x 35 mm / 6.2” x 4.6" x 1.4"
- Net weight: 315 g / 0.694 lbs
Line Section
- Output: 1V / 3.3V max.
- Output Impedance: ≤50Ω
- SNR: <-113dB(A) @ 0dBFS
- DNR: >113dB(A) @ -60dBFS
- THD+N: <0.04% @ 0dBFS
Headphone Section
- Output: 1V / 3.3V max. (variable)
- Output Power: >230mW @ 32Ω ; >36mW @ 300Ω
- Output Impedance: <1Ω
- THD+N: <0.04% (100mW @ 16Ω)
- SNR: >113dBA (3.3V)
Product Description
iFi Audio Zen Air DAC is a dedicated DAC model and part of the “Zen Air” range, a great value alternative to the already well received Zen models, featuring new and improved technology that will truly bring your audio to life.
Format Flexibility
On the Zen Air, you can harness its power across multiple source formats such as PCM (Pulse Code Modulation) which is the level above MP3 (such as CD, DVD & BlueRay), DSD (Direct Stream Digital) that is a super high quality format that works even better when the sample rate is higher on the original recording and finally MQA (Master Quality Authenticated) which is pretty much as it says designed to deliver master quality as it would have been engineered in a studio.
Excellent Flexibility
The inclusion of iFi Audio’s XBass+ technology allows you to truly tailor the soundscape to how you want it with analogue bass options plus support on the frequency spectrum up to 32-bit 384kHz range. This makes it perfect addition to your setup.
Headphone Options
On the Zen Air, you can either use this via USB on a PC, Macintosh, tablets, smartphones and more to really bring your headphones to life in your gaming or even office setup thanks to the high performance circuitry inside.
