Features
| Warranty length | 1 Year |
|---|---|
| Colour | Black |
| Brand | iFi Audio |
Tech Specs
- RCA: 3.5 (SE), 4.4mm (BAL))
- Headphone Out: 6.35 mm, 4.4 mm
- Gain: 0 dB, 6 dB,12 dB,18 dB adjust
- THD+N (A-Weighting): 0.0066% (BAL), 0.0058% (SE)
- Output Impedance (HP): BAL <2 Ohms, SE <1 Ohm
- ZOUT: Balanced line out: 200 Ohms
- SNR: 122 dB (BAL)
- Dynamic range: -122 dB (BAL)
- Frequency response: (-3dB): 10 Hz – 200 kHz
- Function Button: HD6XX adaption and/or XSpace; Bypass
- IMD: 0.01%
- Power: Maximum output power (16 ohms): 3.0V/600 mW (BAL), 4.0V/1000 mW (SE)
- Maximum output power (300 ohms): 5.1V/756 mW (BAL), 7.6V/196 mW (SE)
- Maximum output power (600 ohms): 15.2V/385 mW (BAL), 7.6V/98 mW (SE)
- Maximum power consumption: 13W/2.6A
- Dimensions: 160 x 117 x 35mm
- Weight: 0.85kg
Product Description

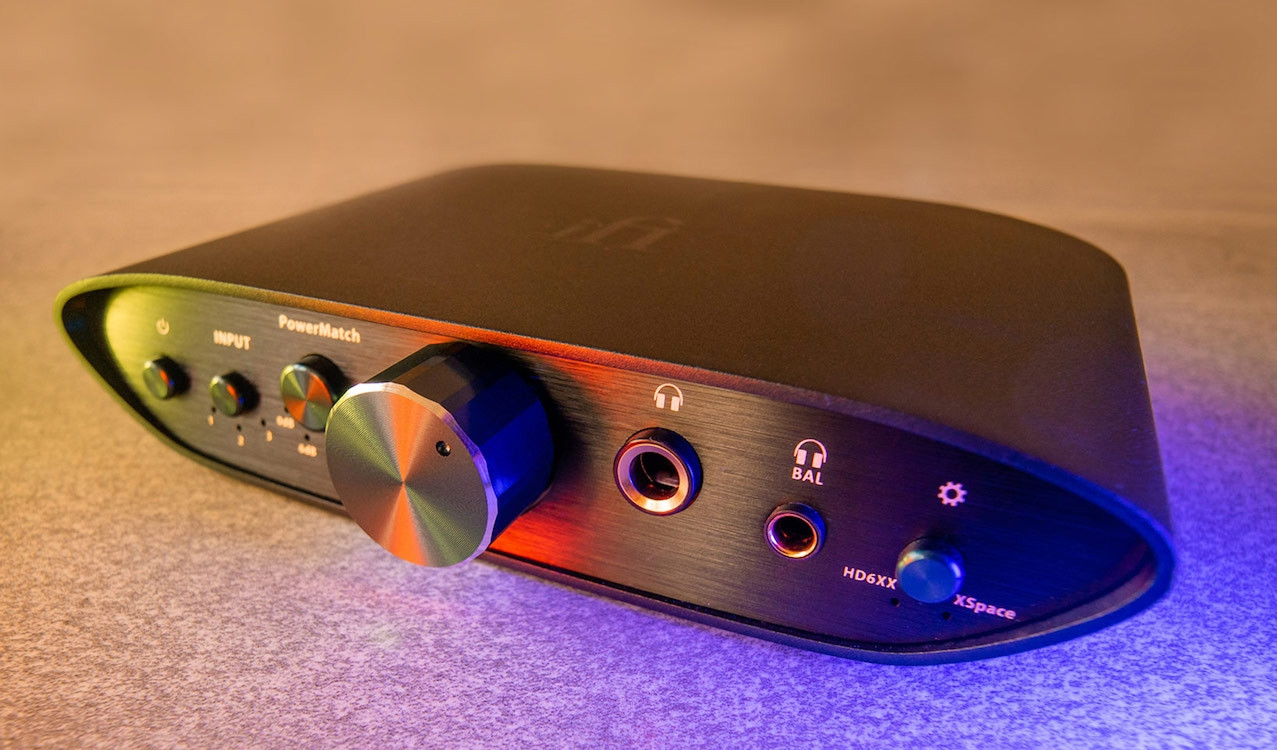

iFi Audio Zen Can Signature 6XX Headphone Amplifier is an all-analogue headphone amp that has improved features over the original Zen Can model. The Zen Can Sig 6XX comes with all of the amazing features of the original unit, but with additional improved circuitry and customised EQ settings resulting in achieving the best performance possible out of your headphones.
This version of Zen Can Signature is specifically designed to pair with the Sennheiser HD 6XX headphones, although you can adjust the settings to match to other headphones as well.
How Does the Signature 6XX Differ to the Signature?
iFi Audio's Zen Can Signature 6XX is in it very own class of headphone amplification, with enhanced audio quality and additional specification that improve the listeners experience. When compared with the original model, the 6XX has enhanced driving capabilities and features.
ActivEQ
iFi Audio's ActivEQ technology combines active and passive components are combined resulting in a specific EQ curve that is designed to use with the premium quality MassDrop x Sennheiser HD 6XX headphones.
How Can I Engage the ActivEQ Filter?
You can operate this feature by pressing the 'HD 6XX' button, this calibrates the signal to pair perfectly with the headphone's response characteristics. ActiveEQ is also compatible with the Sennheiser HD 660S headphones, which have very similar audio characteristics, as do many other headphone models.
Suit All Your Headphones

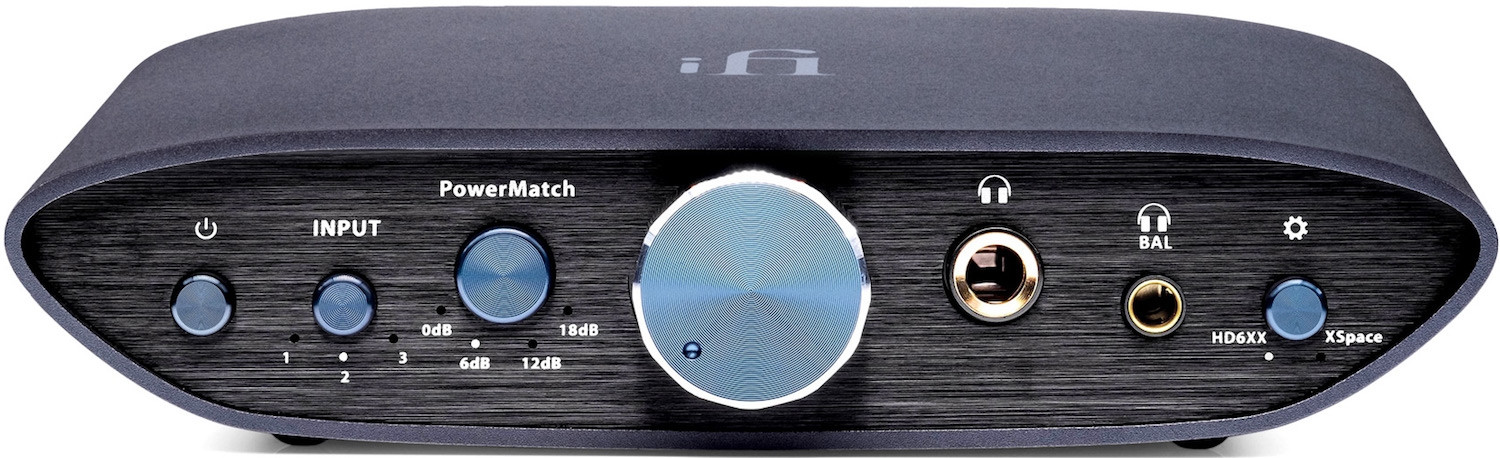

The four gain settings that the iFi Audio Zen Can Signature 6XX has to offer alter in steps of 6 dB's, 0dB, 6dB, 12dB and 18db, it enables the Zen Can 6XX to get the perfect gain levels to suit your specific headphones.
We recommend using the 0 dB unity gain for more sensitive in-ear monitors to get the best performance. Tougher headphone loads should use a higher gain setting. By selecting the right gain level you can experience an expansive soundstage which will achieve a more natural and immersive audio experience.
High End Circuitry
The iFi Audio Zen Can Signature 6XX's circuitry features a premium construction that you might find in luxury, high end headphone amps. It also has features inspired by the iFi Audio's flagship headphone amplifier, the Pro iCan.
The passed down features and enhanced circuitry, the Zen Can Sig 6XX delivers impressive drive capabilities, which even enables you to use planar headphones if you chose. Overalll this model produces a superior performance with super low distortion levels, rich detail, a vast dynamic range and the ability to drive an impressive variety of headphone types
Connections

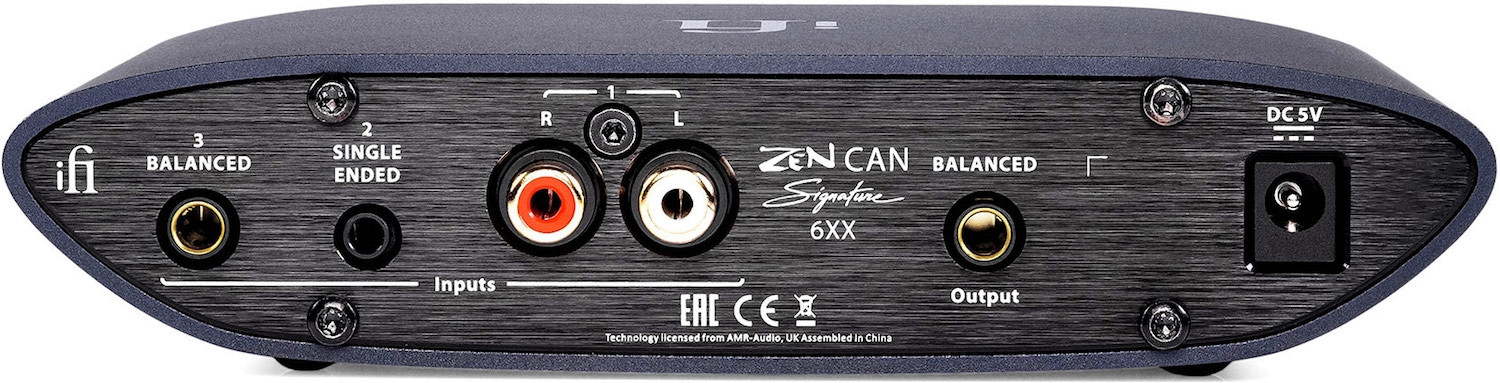

The Zen Can Sig 6XX features a balanced 4.4mm Pentaconn input and stereo RCA and 3.5mm inputs. For the outputs, a balanced output (4.4mm) is instrumented for connection to power amplifiers that include a balanced input, and for the headphones a 4.4mm Pentaconn balanced output has been implemented.
