Features
| Warranty length | 1 Year |
|---|---|
| Brand | iFi Audio |
Tech Specs
- Freq: 10–100K Hz, 20Hz–kHz (±0.3/±0.2dB)
- Dynamic Range (MM/MC: >108/>106dB (A-wtd)
- MM (36dB) SNR: > 85dB (A-wtd, 5mV)
- MC (60dB) SNR: > 85dB (A-wtd, 0.5mV)
- Overload Margin MM: > 26dB
- Overload Margin MC: > 22dB
- Crosstalk: <-71dB (1KHz)
- Max output: 7V (Load >=600)
- THD: <0.005% (MM 36dB 1V, 600R Load)
- Output Impedance: <100Ω
- Voltage: AC 100 – 240V, 50/60Hz
- Power Consumption: < 5W

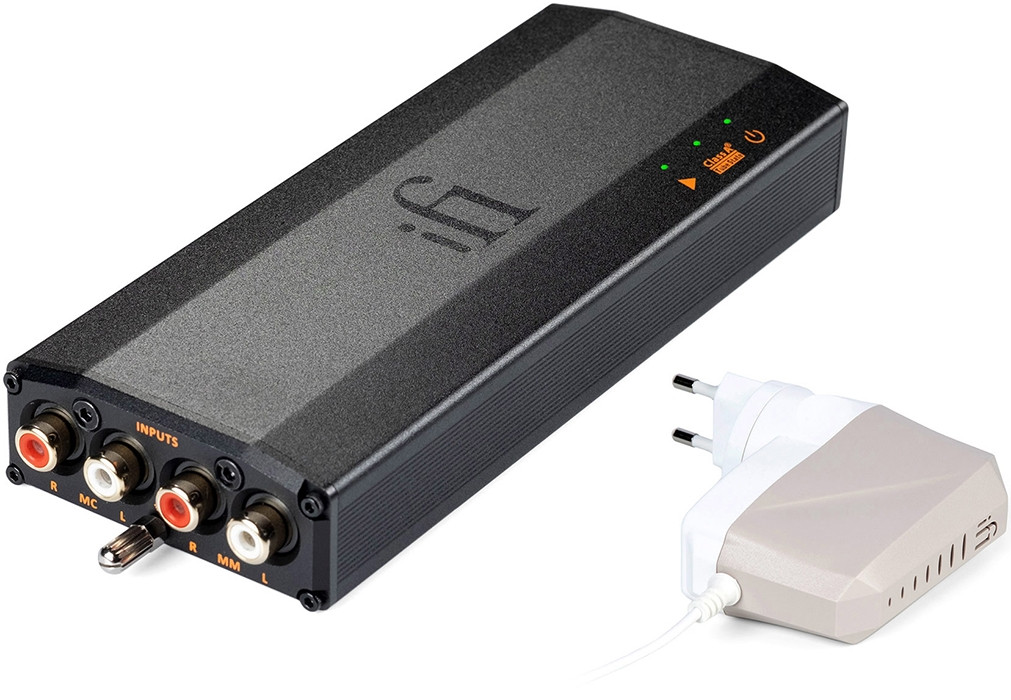

- Use with iPower X (15v)
(Do NOT use any other power supply)
- Dimensions: 158 x 58 x 28mm
- Weight: 0.58 lbs / 265g
Product Description

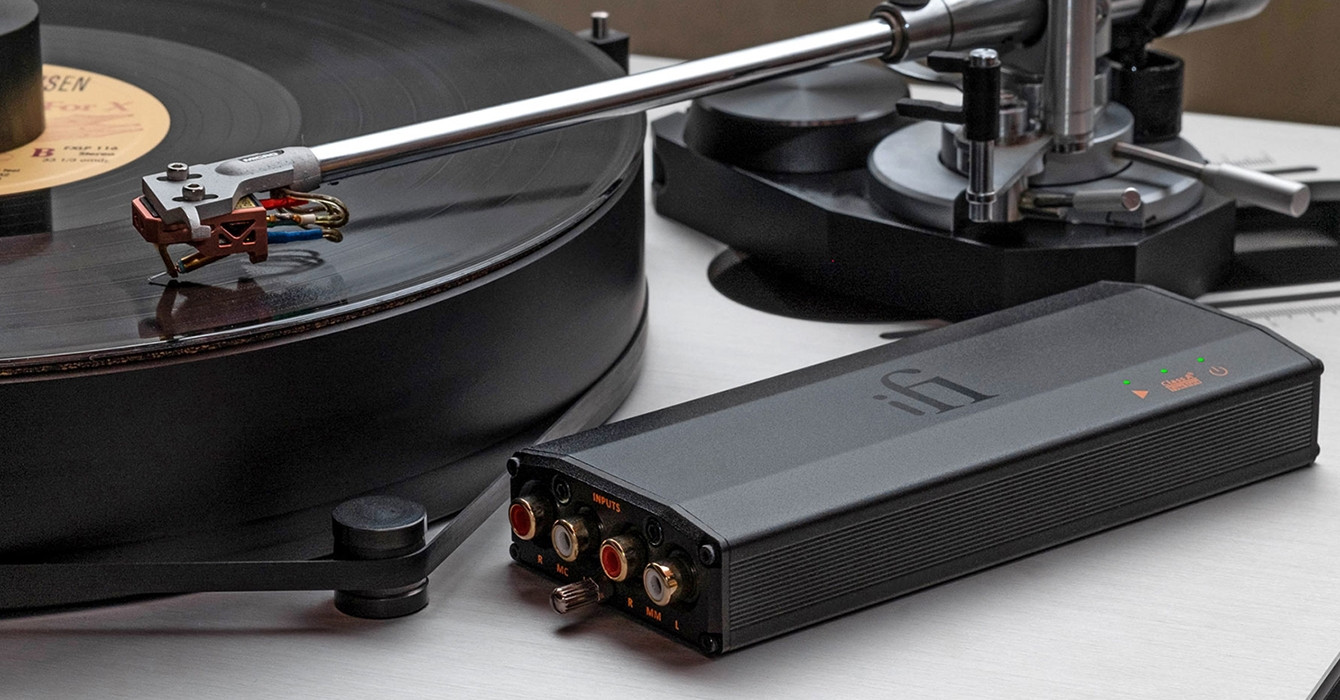

iFi iPhono3 Black Label Phono Stage uses only the best audiophile components from computer matched op-amps, high-gain bi-polar output transistors to Nichicon audio-grade capacitors for stellar sound.
iPhono3 Black Label
With a stunning, super-low 85dB noise floor, the iPhono3 Black Label is one of the quietest phono stages. Like any good phono stage, it amplifies the signal, not the noise. The whisper-quiet noise floor is there for any home audio system to discern.

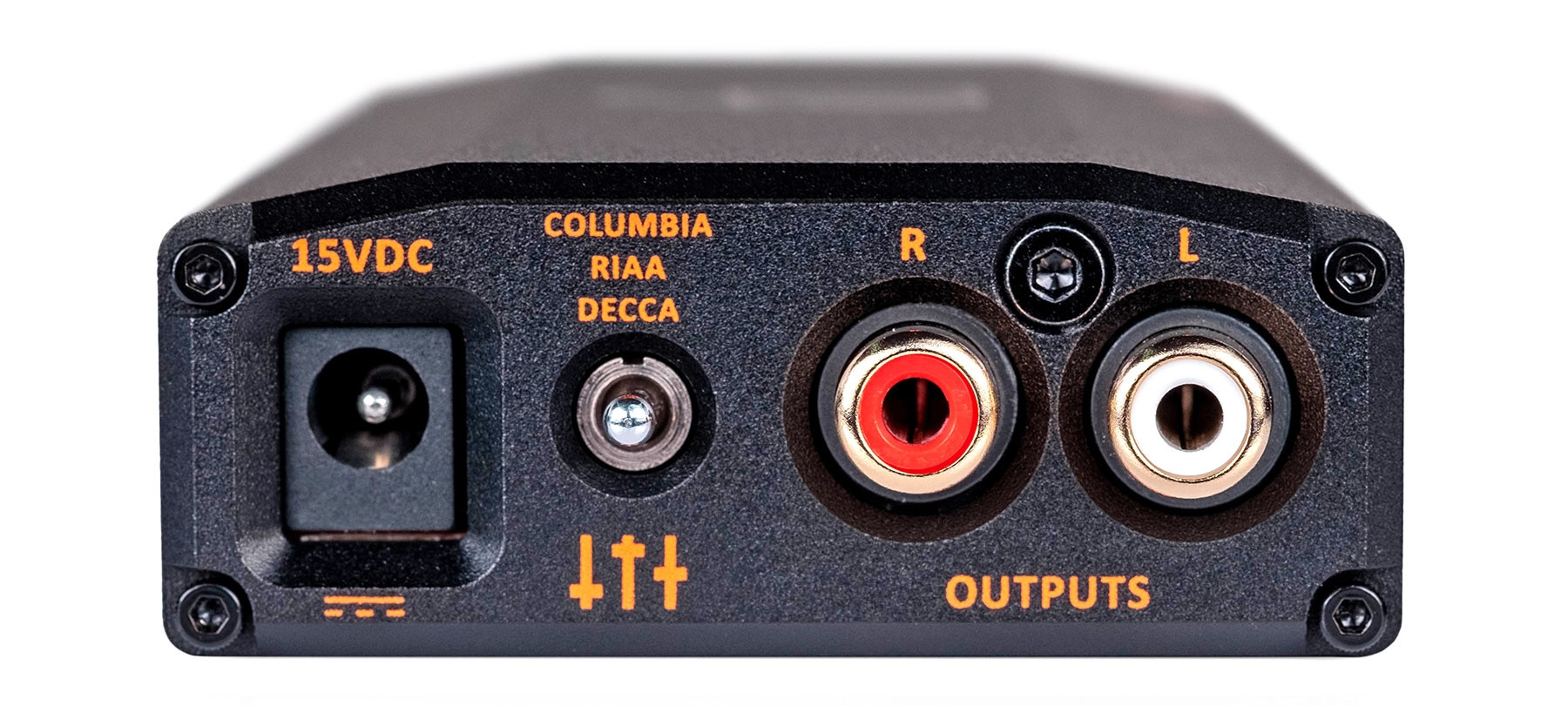

Exacting EQ Curves
Accurate EQ curve and explosive 108dB dynamic range transforms your listening room into a concert hall. The larger AMR PH-77 with 23 EQ curves remains the vinyl benchmark today Trickle-down tech used in the iPhono3 Black Label means it features the six most popular stereo EQ curves.
Match to your Cartridge
Whether it’s MM or MC, no two cartridges are identical in performance. iPhono3 Black Label lets you set the precise load/gain for the cartridge you have so you get the ultimate performance from your precious stylus. Set up just once then enjoy over and over again.
Designed to Delight
Beneath the modest footprint of the iPhono 3 Black Label are Class A TubeState and DirectDrive Servoless technologies specially developed by AMR for iFi audio. All underpinned by audiophile components from Burr-Brown, TDK and Nichicon. With such dedicated circuitry and devoted components, it has a whisper-quiet noise floor and measured THD of an incredible <0.005%.
DC-Infinity
The unique DC-Infinity circuit boosts the DC gain to approach infinity. Once the feedback loop is closed, this near-infinite DC gain cancels all offset voltages to deliver a direct-coupled output with 0V DC offset.
The key to this circuit is that it only changes the gain below approx 0.01Hz, while not changing the AC behaviour at higher frequencies. Any noise and distortion of the circuit occurs at the same level as the output signal and is around 100 times less than the noise and distortion of the actual amplifier circuit, so it effectively disappears.
Direct Drive Servoless
Direct Drive Servoless is an important element of the audiophile experience, which is not visible in measurements but is quite audible. Unlike a standard phono stage design, the iPhono3 Black Label continues the special design tradition of being direct coupled from cartridge to output without requiring a conventional DC servo.
