Features
| Warranty length | 1 Year |
|---|---|
| Brand | Linn |
Tech Specs
- Stylus Type: Nude Microlinear
- Cantilever: Boron
- Coil Wire: Copper
- Pin Connection Type: 1.2mm gold pin
- Mounting Points: 2
- Output Voltage: 0.4mV @ 5cm/s
- Channel Balance at 1 kHz: 1.0dB
- Channel Separation at 1kHz: 27dB
- Load Resistance: 100 Ω
- Load Capacitance: 100 nF
- Tracking Force: 1.8-2.2 g (2.0 g nom)
- Cartridge Mass: 7.6 g
Product Description

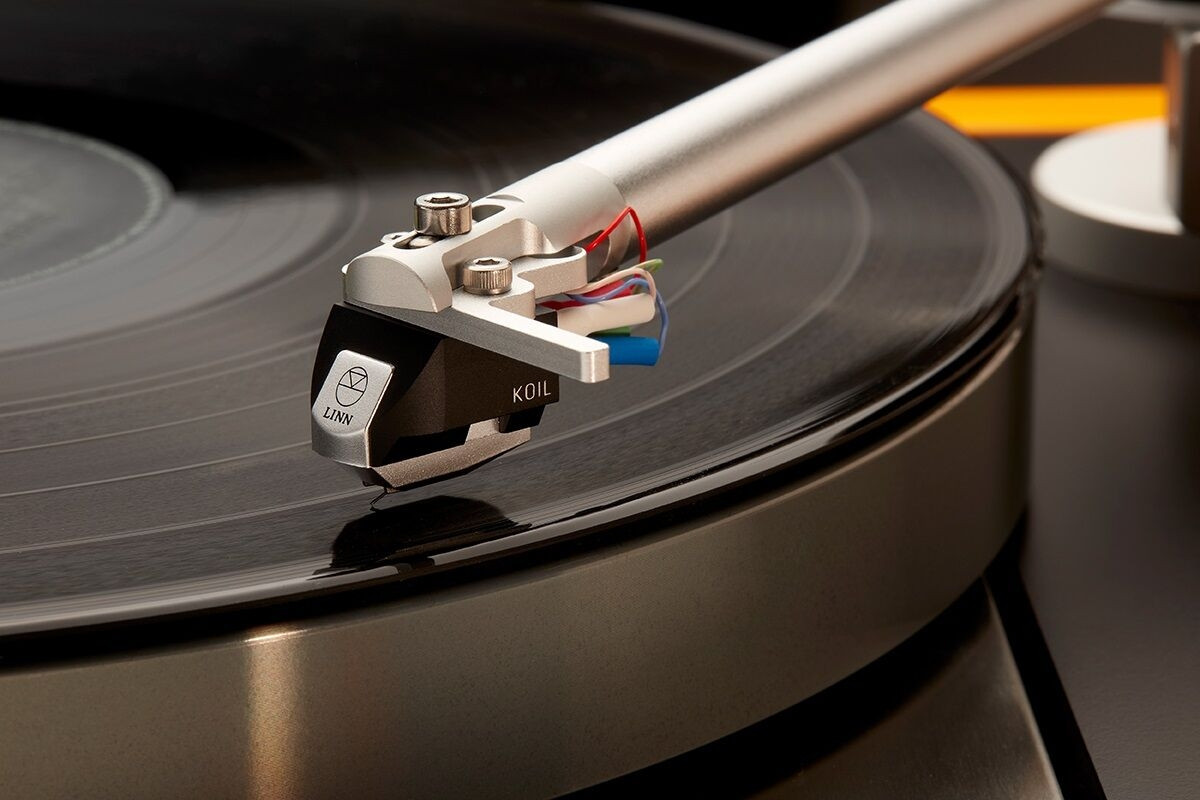

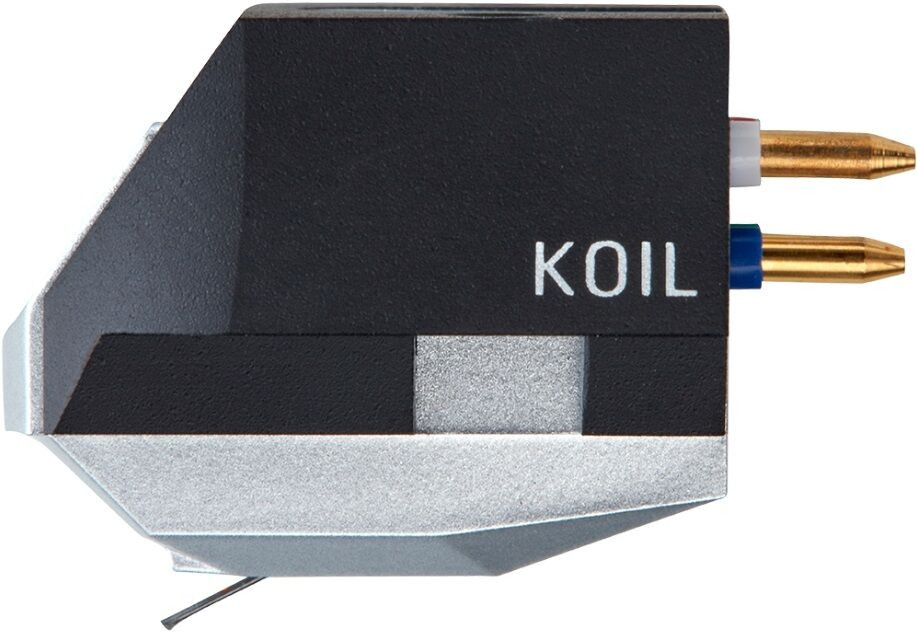

Linn Koil phono cartridge is a moving coil (MC) design, the same model available as an option with the Majik spec LP12 turntable as an alternative to the moving magnet (MM) Adikt cartridge.
Koil from Linn is the perfect gateway cartridge that opens you up to all that Linn can offer, a premium MC cartridge without without the price tag.
LP12 Upgrade
The Koil, is designed to fit any Linn turntable with ease but finds its true home on the Magik LP 12 thanks to the Boron cantilever and impressive build quality that has set Linn apart from the industry for several decades.
Well Designed
With any cartridge the tracking force is key to delivery of the cleanest audio possible from your vinyl and with the Koil you would need to use this at a force of 2.0g, which enables the microlinear styli to work effectively and cleanly across your chosen title.
Key Features
- Moving coil (MC)
- Nude Microlinear Stylus
- Low mass boron cantilever
