Features
| Warranty length | 2 Years |
|---|---|
| Brand | Luxman |
Tech Specs
- Structure: Non-twisted structure
- Core wire: High purity copper (7N-Class)
- D.U.C.C: Φ0.26mm ×60pcs, OFC Φ0.26mm ×40pcs
- Insulator: Polyethylene (red primary color)
- Shielded: OFC Φ0.18mm×38pcs Sheath：PVC
- Drain wire: OFC Φ0.08mm×30 pcs
- Conduct resistance: <4ｍΩ/ｍ （at 20゜C）
- Insulation: 5000MΩ/ｍ+（at 20゜C） <86pF/m
- Withstand voltage: AC1000V （1 minute）
- Diameter: 10.5 × 20mm
- Length: 3 metre pair
Product Description

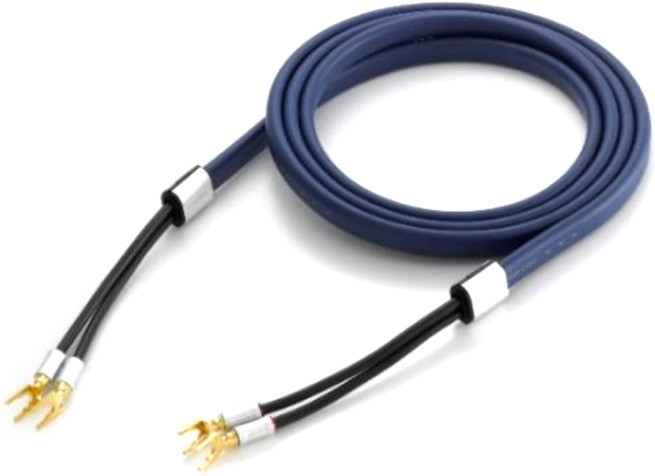

Luxman JPC-15000 Ultimate Speaker Cables is part of the flagship reference cables incorporate carefully chosen materials based in part on the 10000 series reference cables which gained popularity for their integrated L/R structure and their natural tonal quality.
Copper Conductor
Highly pure 7N-Class D.U.C.C (Dia Ultra Crystallized Copper) was chosen in order to produce the absolute highest sound quality. Many prototypes were constructed and assessed before finally finding the highest class of pure copper, D.U.C.C. Dia Ultra Crystallized Copper has the same crystal size as conventional OFC conductors, but this ultra-high-purity copper conductor is dedicated to high-end audio reproduction with an optimally controlled directional crystal structure.
JPC-15000 Series
Luxman is proud to release three different high-grade genuine audio cables which have been engineered utilizing a wide range of break-through technologies and know-how gained from decades of experience developing class leading audio amplifiers. In addition, newly developed user-adjustable branch holder allows longer cable branches without compromising the cable’s performance or appearance. Luxman’s 15000 series flagship reference cable reveals subtle detail while still providing rich, detailed and highly-resolved sound and will allow system components to perform at their very best.
Key Features
- Large diameter, high-purity 7N-Class 99.99998% pure copper ensures lower impedance
- DUCC for an even higher grade conductor with optimized structural crystal alignment and improved conductivity
- The integrated bound structure of the Left and Right channels minimises unwanted ground loops
- A newly developed adjustable branch holder with integral aluminum cover adjusts length of the terminal
- The non-twisted core structure eliminates unwanted inductance yielding unconstrained and lively sound
- Individual shielding for hot and cold transmission lines reduces line-to-line capacitance by half
- The internal and external sheathing pigment consists of non-magnetic carbon for sound quality with no coloration
- Newly developed, original high quality Y-lug speaker connectors
