Features
| Warranty length | 2 Years |
|---|---|
| Brand | Luxman |
Tech Specs
Rated Out: 2x30/2x60WRMS (8/4Ω)
Phono MM/MC: 2.5/0.3mV, 47kΩ/100Ω
Line Sensitivity:180mV / 47kΩ
THD: <0.005%/0.02% (1/20Hz-20kHz)
Freq Response: 20Hz~100kHz (-3dB)
S/N Ratio: Line 107dB

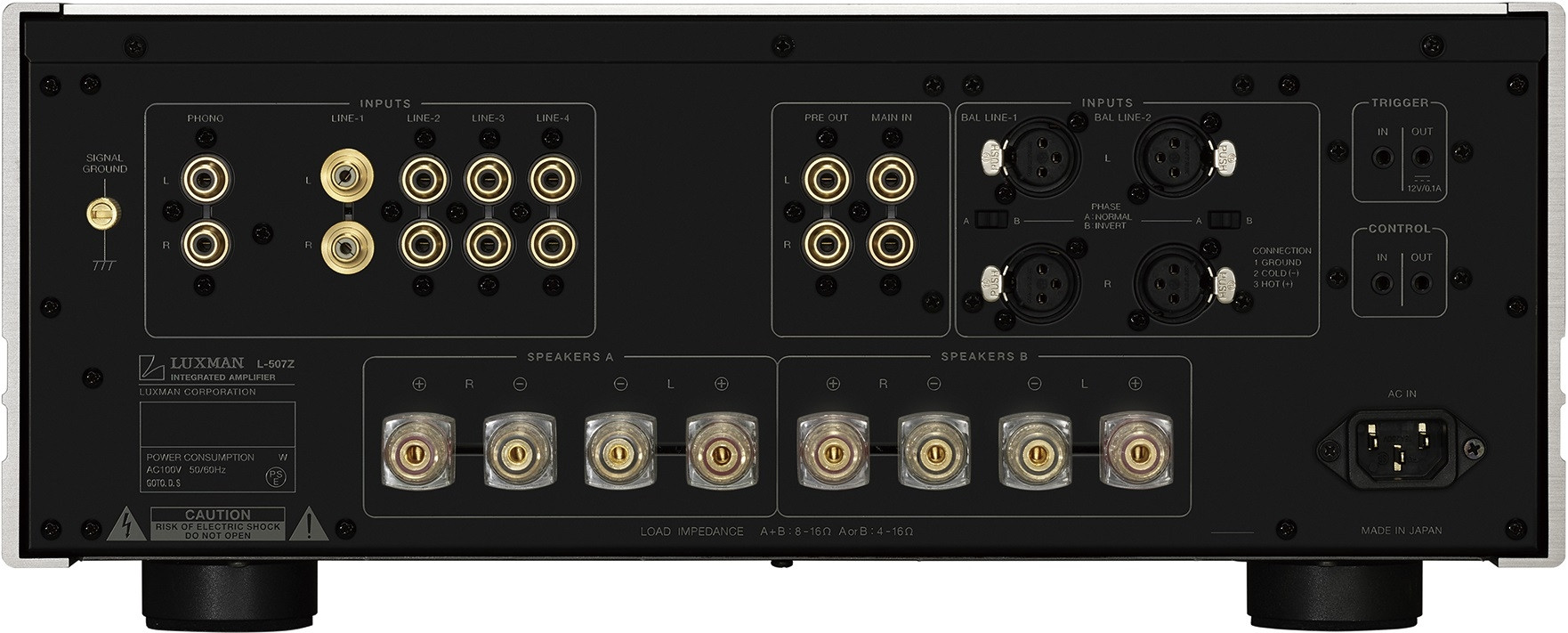

In: 4x Line, 2x Bal, Tape, Power Amp
MM/MC Input: Switchable
Line Out: Pre-Amp, Tape, headphones
Speaker Out: A/B switchable (A+B)
Dimensions (WHD): 440x 193 x 463mm
Weight: 28.4kg
Product Description
The Luxman L-507Z integrated amplifier replaces both the L-590AX-II and L-507UX-II. It represents the next leap in the rich history of Luxman, featuring a brand new amplification feedback system called LIFES, opening the door to a new horizon in high end amplification.
This amplifier builds on the design of the very successful L-509X and is tuned to have a signature Luxman sound. With 110 Watts per channel into 8 ohms this amplifier has enough power to drive even the most demanding of loudspeakers.
Bringing It To LIFES
The L-507Z brings to life a brand new amplification feedback engine called LIFES (Luxman Integrated Feedback Engine System) which builds upon nearly a century of experience in delivering quality sound for the most discerning of audiophile. Using their own epoch making ODNF (Only Distortion Negative Feedback) circuitry as a base, the team at Luxman have designed what is arguably the end-game in systems.
The sound is designed to respond and feel as if it were non-feedback equipped by reducing the number of parallel elements which bringing a performance upswing unheard of in amplifiers. L-507Z packs a 3-stage Darlington triple paralleled push-pull configuration capable of delivering 110W+110W (at 8ohm) and 210W+210W (at 4ohm) meaning it certainly packs a serious punch.
Luxman Style

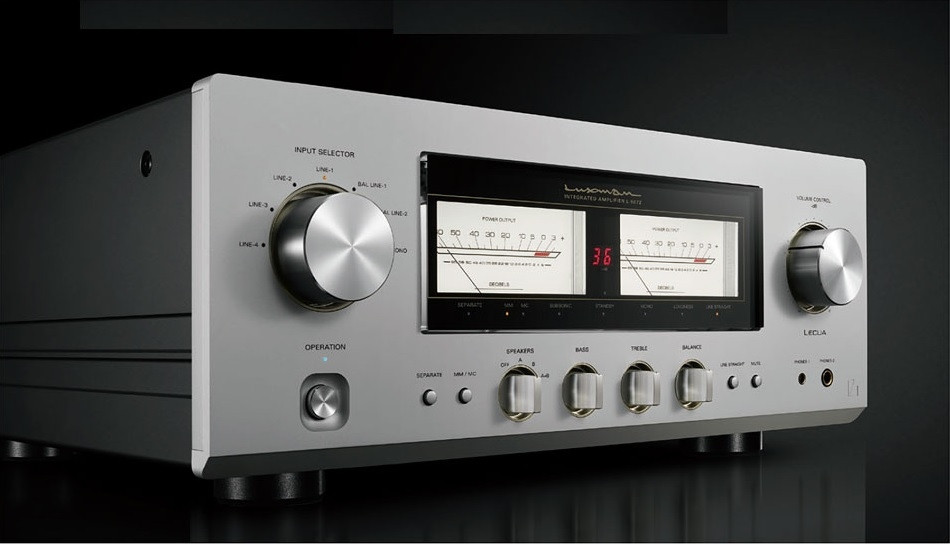

This unit is quintessentially Luxman, following a style and form that has given Luxman plaudits the world over for design and functionality. This unit is in a stylish white and aluminium finish, that would accentuate any home setup thanks to the clean, crisp and delicate styling cues.
Luxman Sound

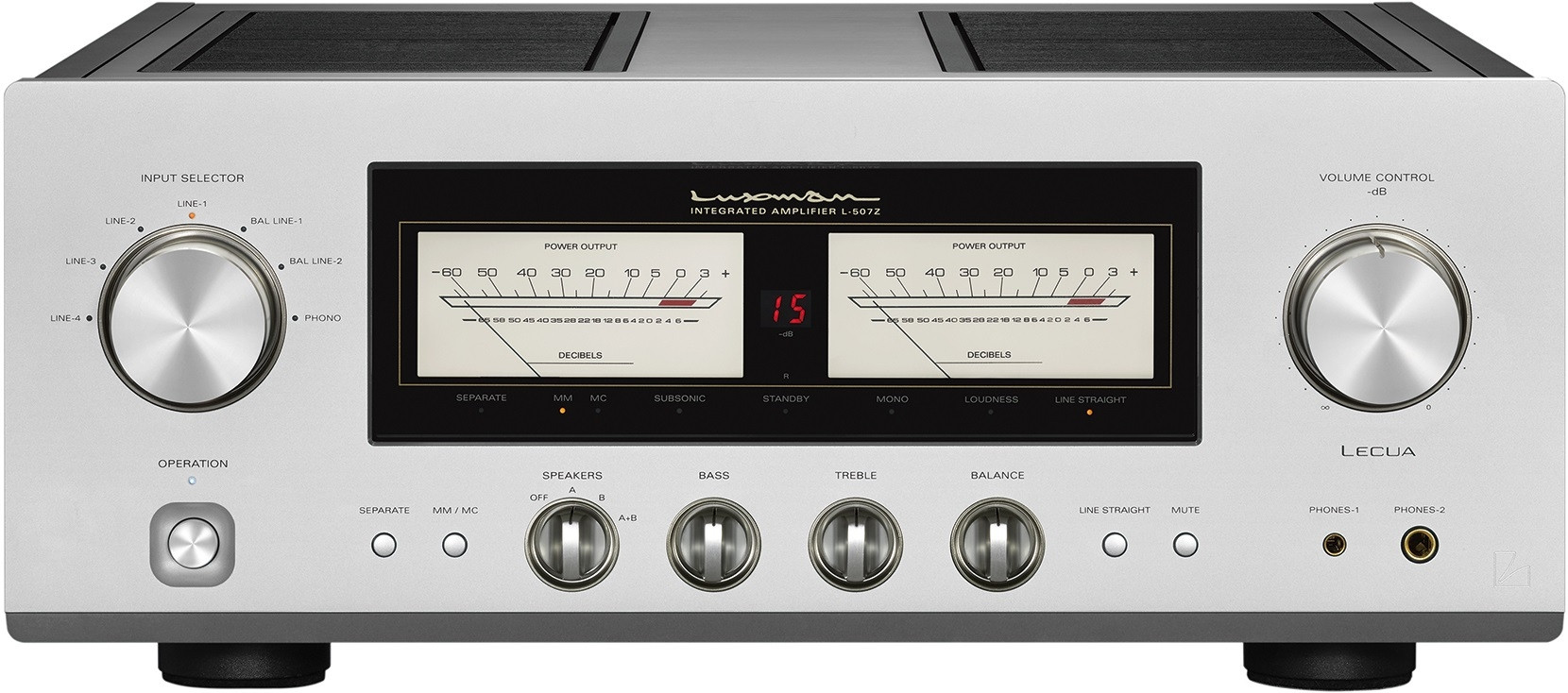

The large VU meter on the L-507Z is a nod to the previous generations of Luxman amplifiers but with a genuine purpose, to allow for precise and controlled listening that will allow your speaker set to truly shine whilst the L-507Z does the leg work for you.
Also featuring is a new addition to the headphone output this time around to compliment the 6.3mm is a new 4.4mm output for those who want to experience a truly three-dimensional sound experience.
Uncompromising Quality

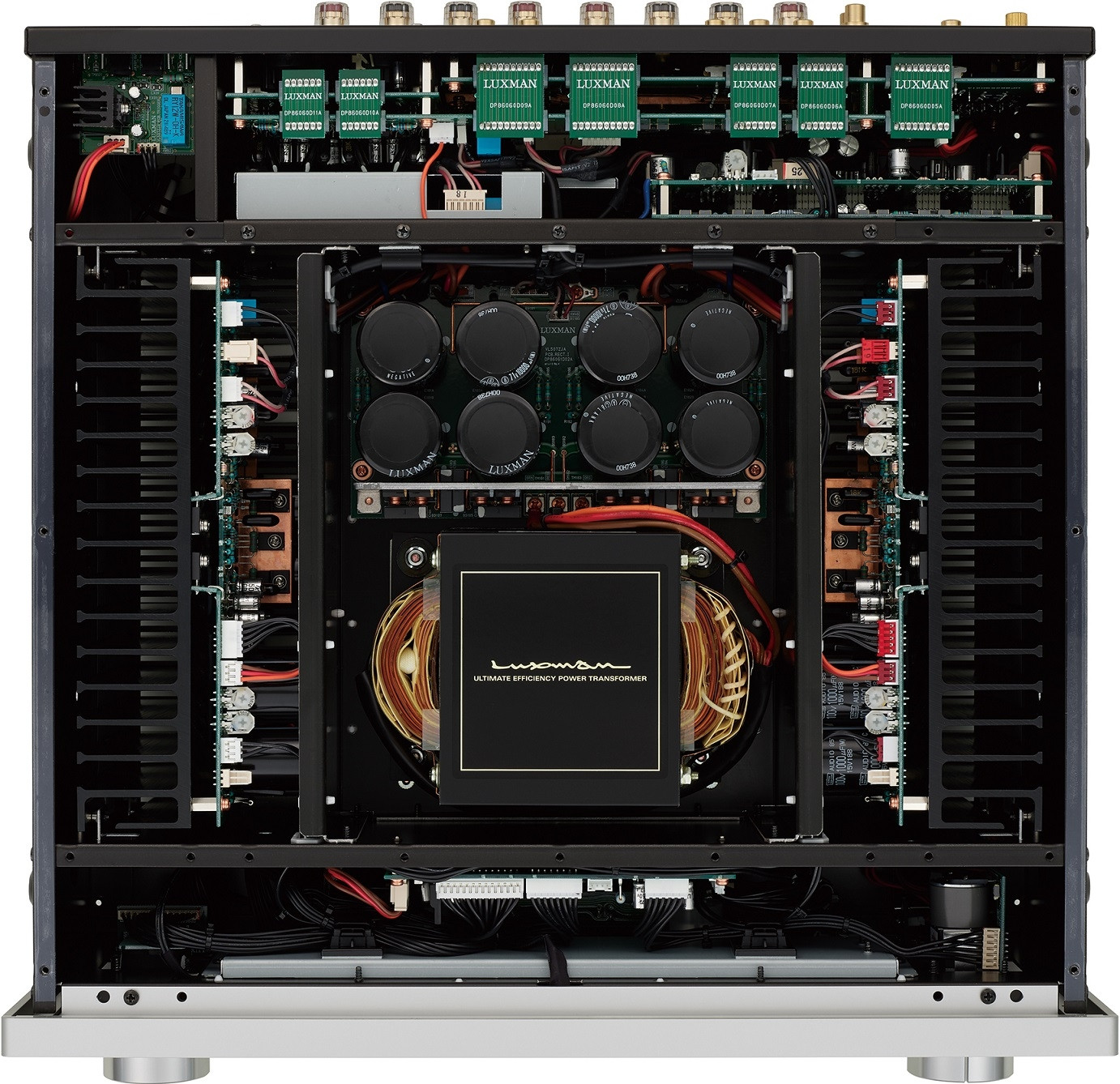

For L-507Z, no stone has been left unturned to produce this unit. It features some of the best circuitry, board design and materials found on the market today, giving you the confidence that the L-507Z could be your end-game amplifier and is the centerpiece of a system to be proud of.
