Features
| Warranty length | 5 Years |
|---|---|
| Colour | Black |
| Brand | Mark Levinson |
Tech Specs
Amplifier Section
- Output Power: 200W RMS p/ch @ 8Ω, 20Hz–20kHz
- Damping Factor: >400 @20Hz, referred to 8Ω
- Frequency Response: 20Hz–20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB
- Signal-to-Noise Ratio: >98dB (20Hz–20kHz, unweighted); >103dB (20Hz–20kHz, A wtd), referred to full output – maximum volume setting
- Voltage Gain: 40.7dB (maximum volume setting)
- THD: <0.01% @ 1kHz, 200W, 8Ω; <0.1% @ 20kHz, 200W, 8Ω
Preamp Section: Analog
- Input Impedance: >45kΩ (RCA & XLR)
- Input Overload: >5.5V RMS (RCA & XLR)
Preamp Section: Digital
- Sample Rates/Bit Depth: PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz/up to 32-bit; DSD: Native, single- and double-speed
General
Analog Audio Connectors:
- 3 pairs single-ended inputs (RCA)
- 1 pair balanced inputs (XLR)
- 1 pair single-ended line outputs (RCA)
- 1 pair loudspeaker outputs ("Hurricane" binding posts w/banana sockets that accept spade lugs with 6.3mm spacing up to 3mm thick)
Digital Audio Connectors:
- 1 balanced AES/EBU input (XLR)
- 2 coaxial S/PDIF inputs (RCA)
- 2 optical inputs (Tos-Link)
- 1 asynchronous USB input (USB-B)
Control Connectors:
- 1 RS-232 port (RJ-12 connector)
- 1 IR input (1/8" phone jack)
- 1 programmable 12V DC trigger output (1/8" phone jack), 100mA maximum
- 1 programmable 12 DC trigger input (1/8" phone jack)
- 1 Ethernet port (RJ45 connector)
- Mains Voltage: 100V AC, 115V AC, or 230V AC (factory-set)
- Power Consumption: Maximum 1000W (power on)
Unit Dimensions (H x W x D):
- Height: 175mm (without feet)/193mm (with feet)
- Width: 438mm
- Depth: 507mm
- Weight: 32.6kg – net/43.4kg – with packaging
Phono Stage
- RIAA Frequency Response: 20Hz to 20kHz, ±0.3dB
- Infrasonic Filter: Defeatable, 15Hz, 2nd order (12dB/octave)
Moving Magnet Mode:
- Input Resistance: 47kΩ
- Input Capacitance: Selectable; 50, 100, 150, 200, or 680pF
- Gain: 40dB @ 1kHz
- THD + Noise: <0.03%, 20Hz to 20kHz, 2VRMS output
- Signal-To-Noise Ratio (Referred To 2Vrms Output): >97dB (20Hz to 20kHz, wideband, unweighted)/>102dB (A-weighted)/>110dB @ 20Hz to 20kHz (spot noise)
- Maximum Input Level: >95mV @ 1kHz; >285mV @ 20kHz
Moving Coil Mode:
- Input Resistance: Selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47kΩ
- Input Capacitance: 50pF
- Gain: Selectable; 50, 60, or 70dB @ 1kHz
- THD + Noise: 50dB gain setting: <0.02%, 20Hz to 20kHz, 2VRMS output/60dB gain setting: <0.02%, 20Hz to 20kHz, 2VRMS output/70dB gain setting: <0.04%, 20Hz to 20kHz, 2VRMS output
- Signal-To-Noise Ratio (Referred To 2Vrms Output):
- 50dB gain setting: >87dB (20Hz to 20kHz, wideband, unweighted)
- 50dB gain setting: >94dB (A-weighted)
- 50dB gain setting: >100dB at 20Hz to 20kHz (spot noise)
- 60dB gain setting: >77dB (20Hz to 20kHz, wideband, unweighted)
- 60dB gain setting: >84dB (A-weighted)
- 60dB gain setting: >90dB at 20Hz to 20kHz (spot noise)
- 70dB gain setting: >68dB (20Hz to 20kHz, wideband, unweighted)
- 70dB gain setting: >74dB (A-weighted)
- 70dB gain setting: >80dB at 20Hz to 20kHz (spot noise)
- Maximum Input Level:
- 50dB gain setting: >30mV @ 1kHz; >105mV @ 20kHz
- 60dB gain setting: >9.5mV @ 1kHz; >90mV @ 20kHz
- 70dB gain setting: >3.2mV @ 1kHz; >30mV @ 20kHz
Product Description

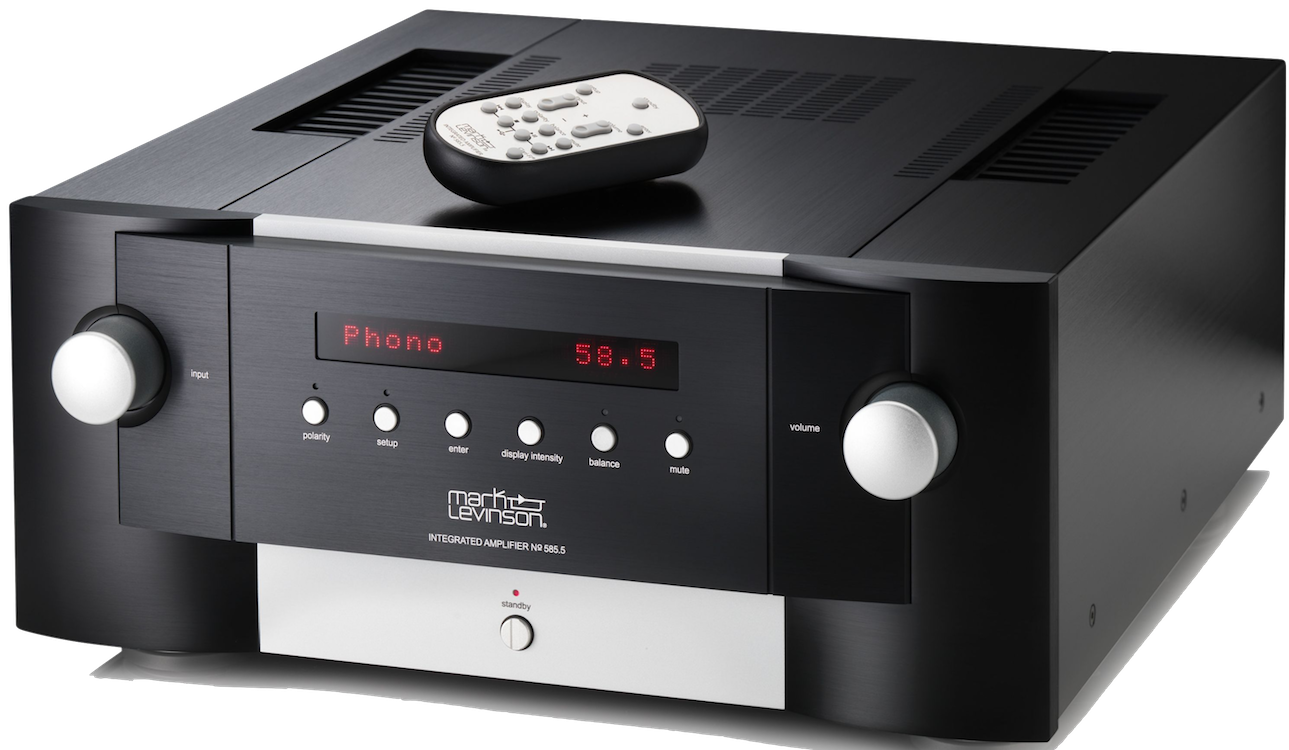

Mark Levinson No 585.5 Digital Audio Player is a fully discrete integrated amp that delivers an excellent audio performance for you digital and analogue music sources. The No 585.5 has a pure path phono preamp for connection to a MC and MM phono cartridges and Precision Link DAC for the best connection to digital sources.
Precision Link DAC
Mark Levinson’s No. 585.5 features a built in premium Precision Link DAC that is designed to reproduce audio signals with accuracy, detail and with extremely minimal noise. The Precision Link DAC is perfect for your digital audio sources!
Powerful, Dynamic and Distortion Free
With an oversized toroidal transformer and massive capacitors, the No. 585.5 can provide all the headroom you need, allowing you to push the volume with plenty of headroom and next to no distortion. The no.585.5 is powerful, clear and detailed.
Hi-Res Power Amp
The power amp section runs in class A/B and can power even the most demanding of speakers. The power amp produces a powerful and hi res audio performance, without distortion or noise.
Pure Path Circuit Design
The No 585.5 Digital Audio Player has been made with the finest materials chosen for their specific functions, inside and out, so it achieves the very best results for your digital audio. With Mark Levinson’s proprietary approach to circuit design, the 585.5 delivers an uncompromising audio performance.
Phono Inputs
You can connect a turntable directly to the 585.5 integrated amp as it has inputs for both MC and MM phono cartridges. This is perfect as it doesn’t require you to have an external phono preamp. The MC section has three gain settings and ten resistive cartridge-loading settings, and the MM section has a fixed gain with five capacitive cartridge-loading settings.
R-2R Ladder Volume
The No 585.5 uses Mark Levinson’s unique R-2R ladder volume control to allow the digital audio player to keep a consistent volume at any level, with balance and clarity.

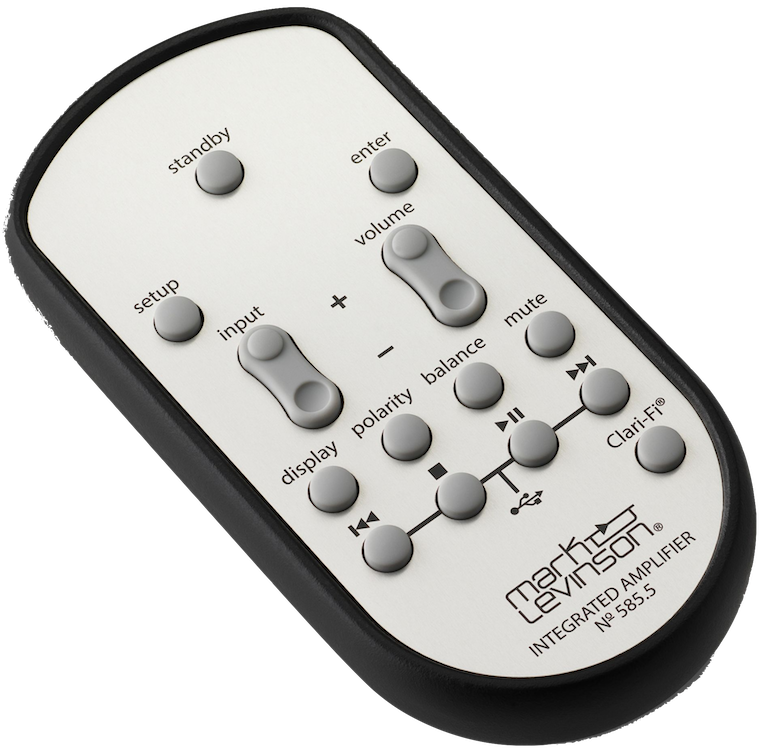

Remote Control
The No 585.5 comes with an aluminium remote control, which allows you to control functions like play/pause, volume and more advanced controls such as EQ and system functions. And whilst in SSP mode, you can allow your system processor to control the speakers powered by the 585.5.
