Features
| Warranty length | Lifetime |
|---|---|
| Colour | Black |
| Brand | Monitor Audio |
Tech Specs
- Frequency Response: 50 Hz - 30 kHz
- Impedance (Nominal): 6 Ohms
- Sensitivity (1W@1M): 89 dB
- Maximum SPL: 109.6 dBA
- Power Handling (RMS): 1200W
- Recommended Amp Requirements: 30 - 120 W
- Crossover Frequency / Slope: Bass low pass: 300 Hz @ 6 dB / Octave
- Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave
- Drivers: Unit Complement 3-Way
- 8" C-CAM RST cone bass driver
- 4" C-CAM IDC cone mid range driver
- 1" C-CAM Gold Dome tweeter (tweeter & midrange driver combined in a pivoting module)
- Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB) MF Level Switch (+ 3dB/ 0 dB/ -3 dB)
- Boundary Compensation Switch
- Overall Diameter: (including grille) 309 mm (123/16")inches)
- Overall Depth: (including grille) 187 mm (7 3/8")
- Cut Out Diameter: 274 mm (1013/16")
- Mounting Depth: 181 mm (71/8")
- Fixing Type: 3 position Tri-Grip dog leg fixings
- Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
- Pre-Construction Bracket: CB10 Pre-Construction Bracket (Light Brown)
- Weight: 4.3 kg
- Cable Connection: Gold plated push type terminals
Product Description

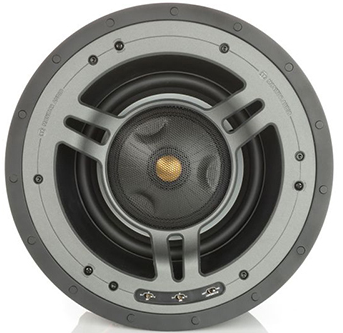

The Monitor Audio CP-CT380-IDC in ceiling speaker incorporates a IDC midrange driver, Gold dome tweeter and C-CAM bass driver as it features a 3-way speaker design that provides a much deeper bass, better power handling and greater system output.
IDC midrange driver
Featuring a pivoting inverted Dual Concentric driver unit that houses the 4 inch C-CAM inverted midrange driver which surrounds the 1 inch C-CAM Gold Dome tweeter. The pivoting IDC design offers precision and directional sound covering.
Discreet Design
The CP-T380 in ceiling speaker has a discreet design and is finished in a natural white with a paintable surface to blend into your own living environment. Additionally, extra scrim material is included for trouble free painting. You can choose from optional square or premium grille for this speaker.
Tri-Grip fixing system
Incorporating Monitor Audio's advanced Tri-Grip fixing system, the CP-CT380-IDC is far more simple to install than conventional clamping devices whilst providing three times the surface area and a better surface seal, resulting in a maximised bass response and improved midrange clarity.
Key Features
- Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- Highly efficienct performance
- High frequency level adjustment (+/-3 dB)
- Midrange frequency level adjustment (+/-3 dB).
- Boundary compensation controls.
- Magnetic and easily removable steel grille.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
