Features
| Warranty length | Lifetime |
|---|---|
| Colour | Black |
| Brand | Monitor Audio |
Tech Specs
- Frequency Response: 50 Hz - 25 kHz
- Nominal Impedance: 6 ohms
- Sensitivity (1W@1M): 89 dB
- Maximum SPL: 109.6 dBA
- Power Handling (RMS): 120 W
- Recommended Amp Requirements: 30 - 120 W
- Crossover Frequency: 2.5 kHz @ 12 dB / Octave
- Drive Unit Complement: 2-Way
- 8" C-CAM cone bass driver
- 1" C-CAM Gold Dome tweeter
- Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
- Boundary Compensation Switch
- Overall Dimensions (H x W x D): 472.5 x 303.5 mm (185/8 x 1115/16")
- Overall Depth (Including Grille): 106 mm (43/16")
- Cut-Out Dimensions: 438 x 269 mm (171/4 x 109/16")
- Mounting Depth: 99 mm (37/8")
- Fixing Type: 6 position Tri-Grip dog leg fixings
- Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
- Connection: Gold plated 'push' type terminals
- Weight: 4.95 kg (10 lb 14 oz)
- Pre-Construction Bracket: WB10 Pre-Construction Bracket (Light Brown)
Product Description

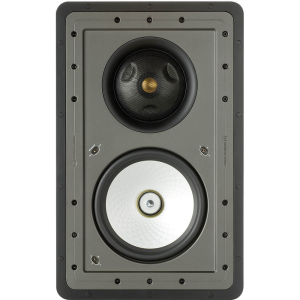

Monitor Audio CP-WT380 In Wall Speaker features a pivoting C-CAM Gold Dome tweeter alongside a 8" C-CAM bass driver with RST cone surface for a powerful controlled performance.
C-CAM Technology
Expect powerful audio from the CP-WT380 speaker which includes an 8" C-CAM cone bass driver and 1" C-CAM pivoting Gold Dome tweeter. The powerful bass unit is able to reach dynamic lows whilst enjoying reduced distortion due to the Rigid Surface Technology. Monitor Audio's pivoting Gold Dome Tweeter has a wide frequency bandwidth and is able to reproduce audio in a highly efficient, accurate way.
Compact and Flush mounting
The CP-WT380 in ceiling speaker is small in size and easy to install. It has a magnetic grille in a neutral white colour which is paintable meaning you can smoothly blend it to the decor of your walls. It features a beautifully flush mounting design for discreet installation.
Tri-Grip fixing system
Save on installation time with the CP-WT380 in wall speaker. The Controlled Performance range use patented Tri-Grip dog fixings which are easy to set up and give a secure but not overly tight fixing, and enhance the bass response and midrange clarity.
Key Features
- Pivoting C-CAM Gold Dome tweeter
- C-CAM bass driver featuring Rigid Surface Technology (RST)
- High overall efficiency
- High frequency level adjustment (+/-3 dB)
- Boundary compensation controls
- Magnetic and easily removable steel grille
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt
