Features
| Brand | Musical Fidelity |
|---|
Tech Specs
- Rated power: 230 W p/ch (8Ω)
- Output volt: 43v (w/o clipping)
- Current (peak to peak): 140A
- Damping factor: 210
- THD+N: <0.007%, 20Hz-kHz (Line)
- S/N Ratio: >120dB ‘A’-weighted
- Freq Response: –1dB, 10-100kHz
- Inputs: 2 RCA Pair, XLR Pair
- Loop-Out: 1 x RCA Pair
- Consumption: 750/0.5W (Max/Standby)
- Included: Mains Cable IEC (10-A)
- Dimensions (WHD): 440 x 125 x 390mm
- Weight: 19.7kg / 24.4kg
Product Description

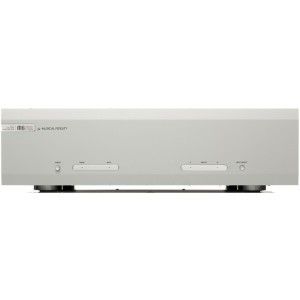

Musical Fidelity M6SPRX Power Amplifier is fully balanced, has a dual-mono system and high-end circuitry fit for high-fidelity applications. Beyond its elegant design lies a true hi-fi performer that will drive any speaker with ease, delivering a deep and detailed sound stage that will leave you breathless.
Dual Mono Design
The M6s PRX has Musical Fidelity’s exclusive dual-mono, fully complementary, bifilar choke regulation system, which has huge power supply benefits including a dramatic reduction in power noise and an effective mains noise filtration.
Audio Circuitry
The M6S PRX’s audio circuitry is based on the classic Titan power amp design with eight output transistors, per channel, and it’s outstanding technical performance. It achieves an extremely low wide-band distortion, low output impedance, enormous stability margins and a very high peak current delivery.
Connectivity
Musical Fidelity’s M6s PRX power amp is easy to integrate due to the switchable XLR and RCA inputs and can easily be partnered into a larger system via the RCA Loop output. When integrated with-in any high-end system, the M6s PRX sounds effortless, detailed and fast without a hint of harshness.
Pair with M6SPRE
If you want to guarantee the very best symbiosis and matching cosmetic appeal, the M6s PRX is ideal when partnered with the M6s PRE pre-amplifier. These big, powerful high-end electronics are a real feat of engineering, which delivers Musical Fidelity’s signature sound.
