Features
| Warranty length | 2 Years |
|---|---|
| Brand | Musical Fidelity |
Tech Specs
- SRC4392: up sampling data to 192kHz
- DAC: PCM1795 32 bit / 192kHz
- Multi-bit Sigma-Delta type
- Out Voltage: 2V RMS single (RCA)
- Out Voltage: 4V RMS bal (XLR)
- PCM THD/THD+N: <0.002%/ <0.003%
- DSD THD/THD+N: <0.003%/ <0.006%
- PCM Freq Response: –3dB, 2-90k Hz
- PCM Freq Response: –3dB, 2-40k Hz
- Channel Separation: -110dB
- Coaxial: S/PDIF (upto 24bit/192kHz)
- Optical: S/PDIF (upto 24bit/192kHz)
Inputs:
- 2x RCA coaxial SPDIF (stereo PCM)
- 2x TOSLINK optical connector
- 32-192 kbps (16-24 bit stereo PCM)
- 1x USB type ‘B’ connector
- Asynch: 24/192 PCM, DSD64, DSD128
Outputs:
- Line level RCA (single-ended)
- XLR Male (bal) to EIA RS-297-A
General
- Dimensions (WHD): 220 x 53 x 215mm
- Weight: 1.9kg (unpacked)
Product Description
Musical Fidelity MX-DAC DSD is a multi-input digital-to-analogue converter that has USB connectivity, with support for DSD, low distortion and noise levels, excellent stereo separation as well as balanced outputs for premium grade systems.
Low Noise, Low Distortion, Low Jitter
Music Fidelity’s MX-DAC with DSD has a design that produces very low distortion, minimal noise and an ultra-wide bandwidth - it’s performance rivals many other DACS on the market. The jitter is estimated at 12pps while the signal to noise ratio is minus 116dB.
Excellent Stereo Separation
The MX-DAC DSD achieves excellent stereo separation, 0.2 decibel linearity, a flat frequency response and distortion under 0.00025% (at 1kHz) and under 0.0003% at (20kHz) all of which translates to state-of-the-art audio capability, which is immaculately implemented to ensure a fully neutral and precise D/A conversion of any digital input.

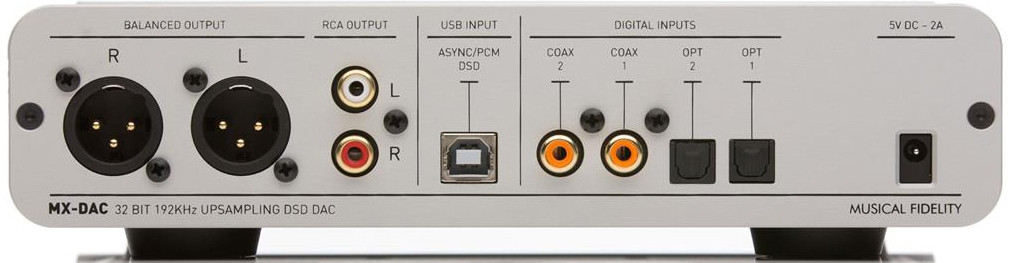

MX DAC DSD Connections
The MX-DAC DSD offers twin-coax inputs and dual optical inputs, all of which are up to 24bit 192kHz PCM. The asynchronous USB port also supports PCM format as well as DSD 64 and DSD 128. Every input from coax, optical or USB is processed in the DSD domain, which delivers warm and emotive tones to the audio that can't be replicated by simple digital conversion. The MX DAC supports both single ended and balanced outputs.

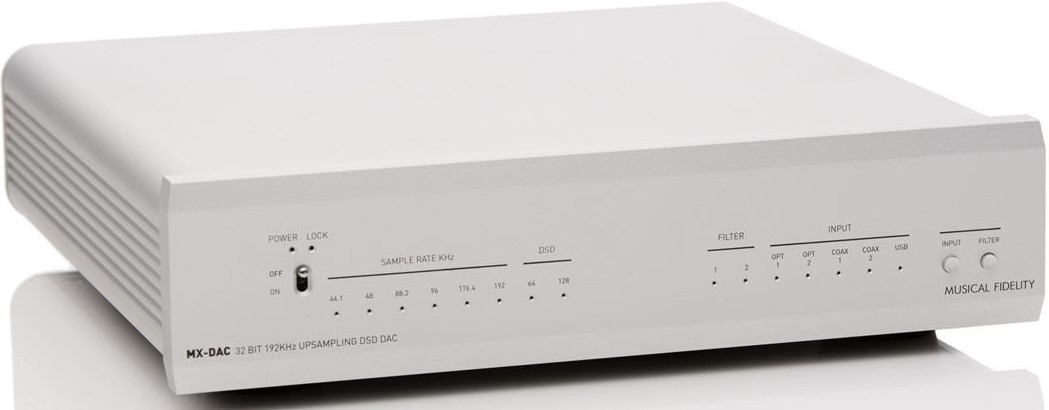

Compact Build
The MX DAC DSD is available in black or silver and is housed in a sturdy and solid housing that is manufactured from exclusive custom-made extrusions using military-spec aluminium. It’s compact design allows it to be placed in mot places without taking up to much space.
