Features
| Warranty length | 2 Years |
|---|---|
| Brand | Ortofon |
Tech Specs
- Out volt @1kHz 5cm/sec: 200 µV
- Channel balance @1kHz: < 1dB
- Channel separation @1kHz: > 20 dB
- Channel separation @ 15kHz: > 10 dB
- Frequency Range at - 3dB20-25.000 Hz
- Freq Response: FIM: 20-20k Hz +3/-1dB
- Tracking ability @315Hz: > 65 µm
- Compliance, dynamic, lateral: 8 µm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 3.0-5.0g (30-50mN)
- Tracking recommended: 4.0g (40mN)
- Tracking angle: 20°
- Internal impedance, DC resist: 6 Ohm
- Recommended load impedance: > 10 Ohm
- Cartridge Material: Grinded wood
- Coilwire: High Purity Copper (OFC)
- Cartridge colour: Black
- Cartridge weight: 30 g
Product Description

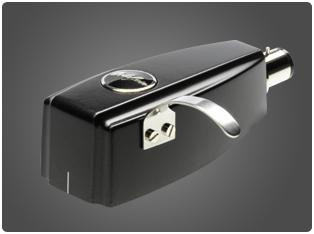

Ortofon Classic G E MkII SPU MC cartridge, differs from the standard Classic GM, by the addition of an elliptical stylus, which gives a precise and detailed sound reproduction. with expansive imagery. The SPU Classic series follows the design of the original Moving Coils and is a perfect solution for the playing early and modern stereo recordings.
SPU style cartridges have been specifically designed to fit onto old style tonearms which accept SPU cartridges, they are not designed for use on most modern tonearms and turntables. If you are in any doubt, please contact us before ordering for expert advice.
