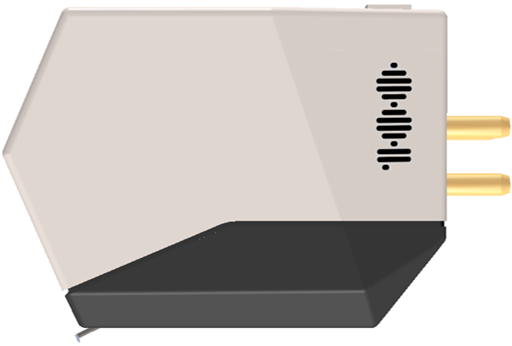

Ortofon MC Century Cartridge - Limited Edition

Ortofon MC Century Cartridge is a newly developed Anniversary moving coil cartridge which represents the absolute top of Moving Coil cartridges. This state of the art product is a true example of the highest degree of performance possible in contemporary analogue playback technology. The MC Century represents numerous Ortofon design elements and ideals.

Advancements in technology

An engineering feature adding to the damping capability of the MC Century cartridge is the Selective Laser Melting process in which fine particles of Titanium are welded together, layer-by-layer, to construct a single piece body devoid of unnecessary material. Using this technique the density of the body can be precisely controlled, allowing for extremely high internal damping.

The final result provides absolute freedom from resonances existing in the cartridge body material and allows for the MC Century to be perfectly matched with an extremely wide array of different tonearms. Because of the nature of SLM-based construction, each cartridge body is cosmetically unique and will show small dimples or lines under close examination.

Magnet/coils system and damping

The optimised geometry of the high efficiency magnet system combined with choice of materials like neodymium and iron-cobalt offers an unprecedented consistency of the flux density within the system’s air gap. Due to an increase of active material inside of the magnet system, the magnetic field strength is delivered more uniformly, allowing each coil to sense identical flux density regardless of its position. Because of this, dynamics and impulse linearity are preserved to an overwhelming extent.

Using expensive ultrapure oxygen free copper allows for zero-loss transmission of the diamonds movements via Diamond cantilever. This configuration combines low moving mass with an extremely high degree of rigidity. The MC Century also uses a new degree of control over vibrations by a way of a newly-improved wide-range armature damping system (WRD). By extending the armature beyond the coils, it can interface directly with the rubber dampers, which sandwich a small heavy disc of platinum. This offers more consistent movement, and thereby better stereo perspective and transient delineation.

Extremely high-end materials

The specially designed precision moulded non-magnetic armature achieves an extreme precision in each coil turn in all layers. The armature design allows a very well defined interface to the rubber absorbers. The material applied for the armature has very high strength and rigidity. The bottom cover has been constructed from a special proprietary TPE (Thermo-Plastic Elastomer) material, which provides extremely high damping.

As in the Exclusives series cartridges, the MC Century makes use of Ortofon’s Replicant 100 diamond, known for its thin and light profile and extraordinarily large contact surface. Since the Replicant 100 is closest to the shape of the cutting stylus, it can trace with accuracy unparalleled by any other needle in existence. Special polishing of the diamond along with the use of a Diamond cantilever offer extremely transparency, speed, and responsiveness beyond that of any other combination.

Flexibility and performance

Output impedance of 6 Ohm and a low to medium output voltage of 0.2 mV make the MC Century a perfect partner for most phono preamps and step-up transformers, including the Ortofon ST-80 SE. Ortofon high quality headshells LH-8000 and LH-9000 are recommended for the MC Century. When combined with Ortofon’s world-class knowledge in analogue sound reproduction, the new MC Century will undoubtedly provide sound which is literally unsurpassed and simply has to be experienced.

Exclusive Packaging

MC Century is delivered in an exclusive solid box featuring Ortofon Anniversary logo printed on a lid which is close-fitted by means of two hinges. The box is made in Medium Density fiberboard, with high-gloss lacquer, inside covered with black velvet. The exclusive surface was chosen in order to achieve a hard, resistant and beautiful white matte finish. MC Century Userguide and a Maintenance set in a tailored purse included the package.

Key Features

- The housing and the body of the cartridge are made in Titanium with SLM technique
- High performance iron-cobalt alloy is applied for some parts of the magnet system
- Armature damping system provides complete elimination of unwanted resonance
- Ortofon Replicant 100 diamond, thin and light with large contact surface
- Tracing accuracy unparalleled by any other needle in existence
- New Diamond cantilever with crystal structure and exceptional hardness
- Best possible interface between the stylus and the armature
- Diamond Stylus on Diamond cantilever for extremely responsive and transparent sound.
