Features
| Warranty length | 2 Years |
|---|---|
| Brand | Ortofon |
Tech Specs
- Voltage: 0.2mV (@1kHz 5cm/sec)
- Channel balance @1kHz: <0.5dB
- Channel separation @1kHz: >25dB
- Channel separation @15kHz: >20dB
- Frequency range: 10-50k Hz (-3dB)
- Freq resp: 20 Hz-kHz (+2/-1dB)
- Tracking ability: @315Hz (>90μm)
- Compliance, dynamic, lateral: 13μm/mN
- Nude Ortofon Replicant 100 on Boron Ctl
- Stylus tip radius: r/R 5/100 µm
- Tracking force range: 2.0-2.5g (20-25mN)
- Tracking force recommend: 2.3g (23mN)
- Tracking angle: 23º
- Impedance, DC resistance: 7 ohm
- Recommended load impedance: >10 ohm
- Coilwire material: Aucurum
- Body: SLM Titanium + Stainless Steel
- Cartridge Weight: 11 grams
Product Description

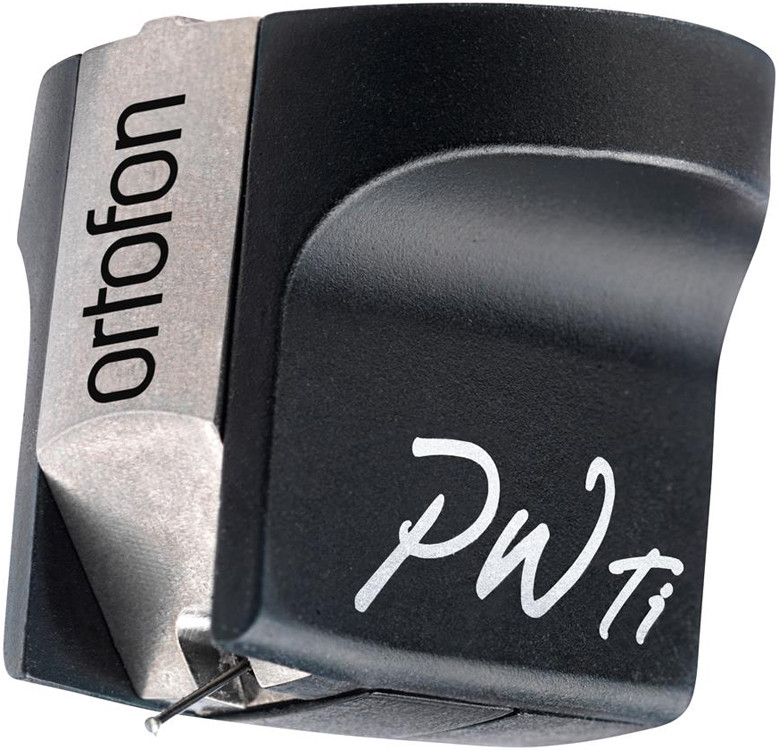

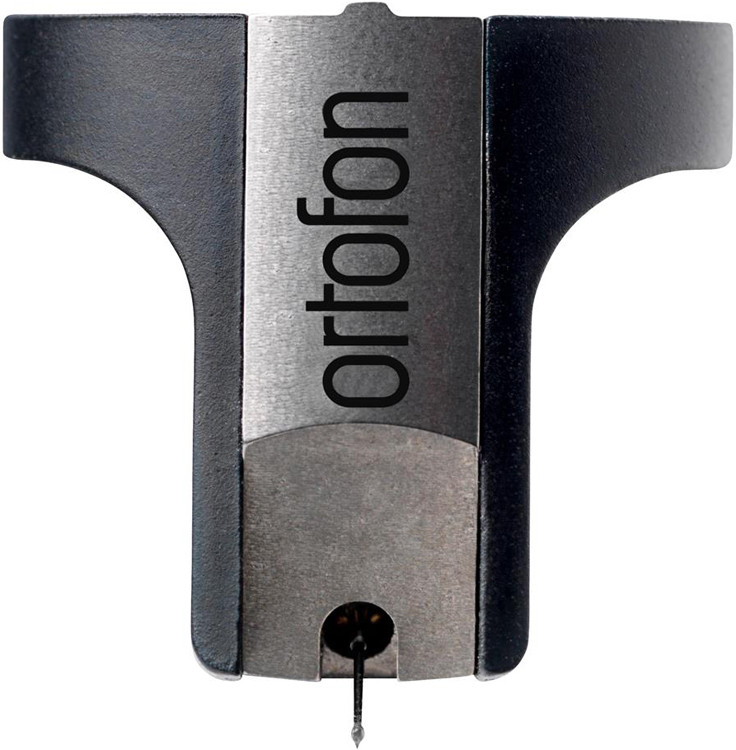

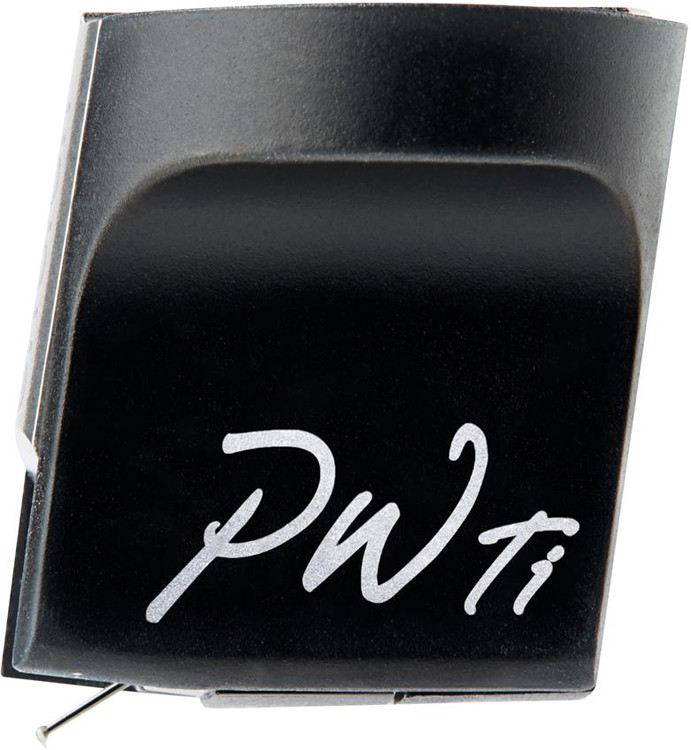

Ortofon MC Windfeld Ti is an MC phono cartridge for high-end performance, reducing extraneous noise and vibration by employing new revolutionary technologies in magnetic and mechanical design
Performance
To optimise sound quality, the cartridge manufacturer must ensure they have carefully designed the cartridge casing to ensure rigidity and ensure that it is free from resonance in the audible spectral range
The MC Windfeld Ti has been designed so that tonearm contact to the cartridge is via three well-defined contacts located on the cartridges fastening section. Therefore, the tonearm and cartridge are perfectly mechanically integrated
Flexible
The MC Winfield has been designed to be combined with the majority of contemporary tonearms, the MC Windfeld Ti is compatible with a large percentage of modern high-end turntable equipment.
With output impedance being 7 ohms and the output voltage being 0.2 mV means the MC Windfeld Ti is perfectly matched for the majority of MC preamplifiers, in addition to step-up transformers, such as the Ortofon ST-80 SE.
Construction
The MC Windfeld Ti, is constructed from a stainless steel alloy similar to earlier models, but with the addition of a new rigid internal titanium structure. Ortofon uses a Selective Laser Melting (SLM) technology for this cartridge. The SLM technology was introduced the MC A90, it aims to provide an extremely strong and highly rigid cartridge construction to the headshell. The idea is that once energy is lost, it is irrecoverable, which results in a reduction in dynamics and detail. Their exclusive SLM process combines particles of fine titanium together in layers, the result is material without any extra material. The SLM process gives precision control of the density of the material, and results in a high degree of internal damping. The final cartridge is very lightweight, quiet and even more rigid than the earlier models.
