Features
| Warranty length | 2 Years |
|---|---|
| Brand | Ortofon |
Tech Specs
Output voltage @1kHz, 5cm/sec: 200 µV
Channel balance at 1kHz: < 1 dB
Channel separation at 1kHz: > 25 dB
Channel separation at 15kHz: > 20 dB
Frequency range @-3dB: 20-60.000 Hz
FIM distortion: 20-20.000Hz +3/-1dB
Tracking ability at 315Hz: > 70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude Ortofon Replicant 100
Stylus tip radius: r/R 5/100 µm
Track force range: 2.5-3.5g (25-35mN)
Track force recommended: 3.0g (30mN)
Tracking angle: 20°
Internal impedance/DC resistance: 6 Ohm
Recommended load impedance: > 100 Ohm
Coilwire material: Goldplated Silver
Cartridge colour: Blue/Gold
Cartridge weight: 13g
Product Description
The Ortofon SPU Royal GM MkII provides a playback experience that embodies the essence of analog, with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.
100 Stylus
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience. Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
Microdynamics

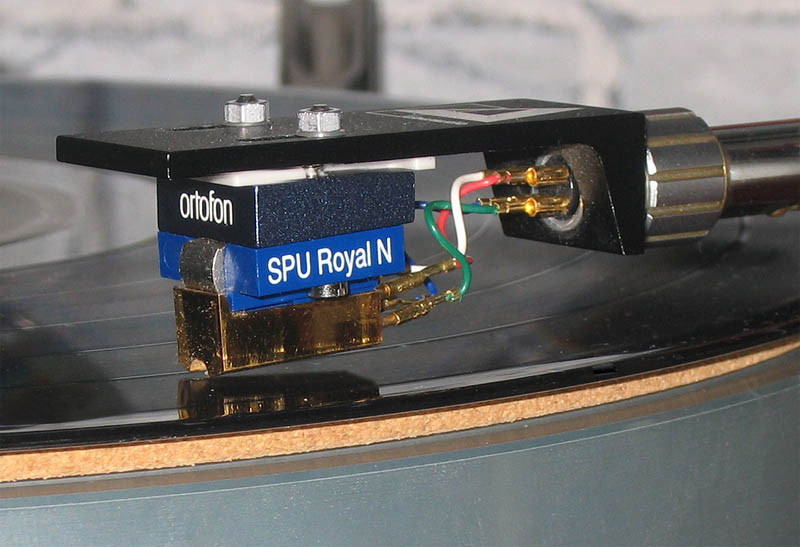

High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail. Listeners who wish to mount the SPU Royal N on a traditional headshell may do so, and those with vintage SPU-type headshells can use the Royal N to recreate an authentic and functional SPU cartridge.
Compatibility
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
