Features
| Brand | Pathos Acoustics |
|---|
Tech Specs
Digital input sample rate
- S/PDIF: 32 bit up to 384 KHz
- USB: PCM 32 bit up to 384 kHz, DSD64, DSD128
- Analog stage: Fully balanced, Class A, zero feedback
- Dynamic range: 120 dB
- S/N ratio: -110 dB
- THD: <0.01%
- Analog line output: 1 x balanced XLR, one x RCA
- Output impedance: <30 Ohm
- Max FIX output level: 3.2 V RMS
- Variable output level: 0 - 6.3 V RMS
Inputs:
- 2 x USB B
- 1 x S/PDIF RCA
- 1 xS/PDIF Toslink
- 1 x analog line RCA (only for headphone)
Headphone specifications:
- Output power: 1 W @ 16 ohm
- Output impedance: <0.2 ohm
- Output level: 7 V RMS
- Frequency response: 10 Hz – 100 KHz
- THD: < 0.02%
- Main voltage: 90-250V 50/60Hz
- Power consumption: 10W
- Dimensions: 7.87" x 8.9" x 2.75" mm
- Weight: 5.5 lb (2.5 kg)
Product Description

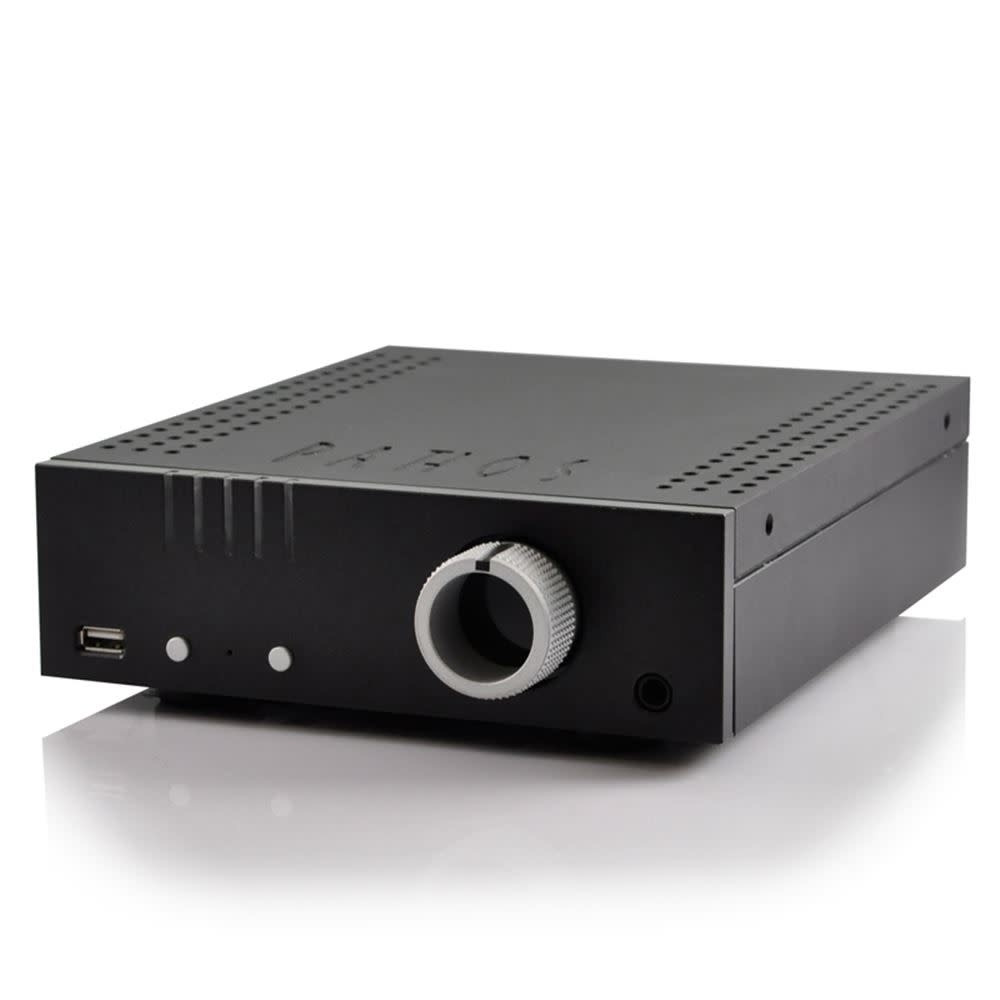

Pathos Converto Mk2 RR DAC is a preamp and headphone amplifier made using the finest quality components. Performing at 32 bit and 384 KHz due to the new ESS901K2m converter.
Fully Balanced Circuits
The Converto Mk2 RR can receiver music files using a PC or by using USB or from a digital source by S/PDIF.The Converto has fully balanced circuits with input options, analog RCA line coaxial S/PDIF, USB of type B and optic S/PDIF.
Design
Aluminum has been used for the body and paneling of the Converto Mke RR and the design has been made as simple as possible with two buttons on the front panel that enable standby mode and input selection. The Converto is available in two finished Black and Silver.
