Features
| Warranty length | 2 Years |
|---|---|
| Brand | Pro-Ject |
Tech Specs
- Tube assembly: 2x ECC83 (12AX7)
- Input impedance variable: 10-1000 Ohms, fix 47 kOhms
- Capacitance: 100 / 220 / 320 pF
- Gain: MM / MC 40 / 45 / 50 / 60 / 65 dB
- Output voltage: 500 mV/1kHz at 5mV/1kHz (at 40dB)
- Signal-to-noise ratio: 88dBA
- Subsonic filter: 20Hz @ 12dB/octave
- Input / Output: 2x RCA
- Power supply: 18V/1000mA DC
- Power consumption: 490mA DC / < 0,5 watt standby
- Dimensions WHD: 206 x 91 x 227 mm (aluminium)
240 x 93 x 227 mm (wood)
- Weight: (without power supply) 1650g (aluminium)
1930g (wood)
Product Description

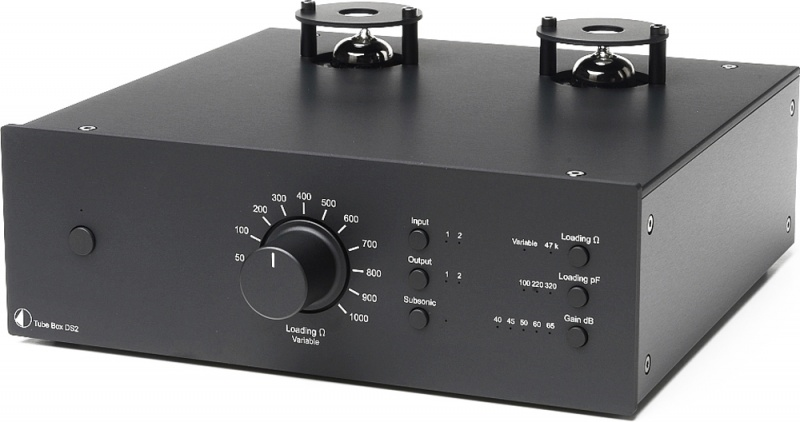

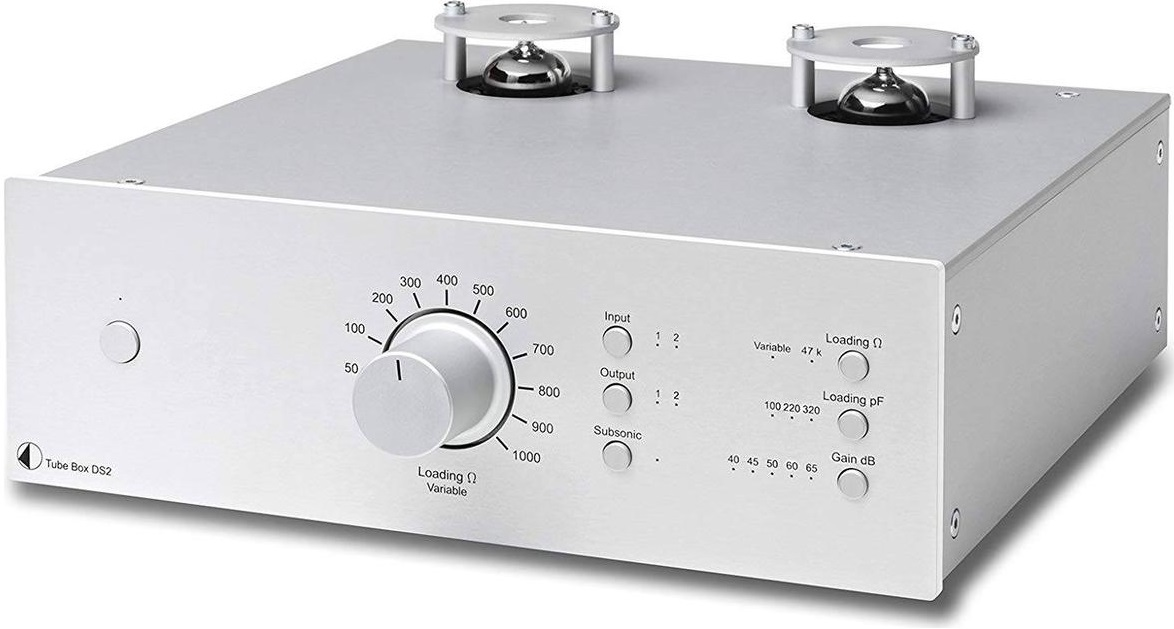

Pro-Ject TUBE BOX DS2 Phono Stage offers a breathtaking sound experience thanks to intricate circuitry, making it the ideal upgrade for vinyl enthusiasts. It's sophisticated casing perfectly places it within the upgraded DS2 family.
Ultra Connectivity

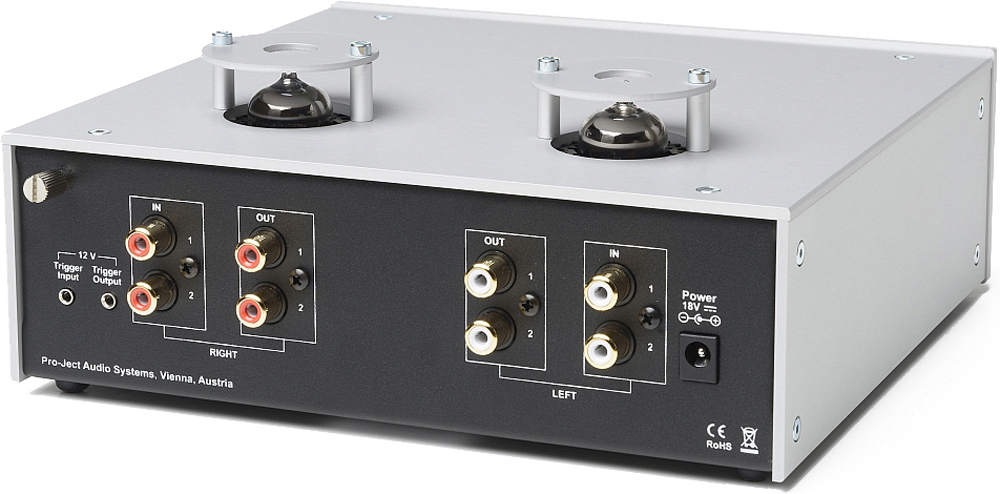

The model can be connected to two turntables, alongside two selectable line outputs and a variable selection of input impedances.
No More Low Rumbles
Your speakers and amplifier are protected from a super-low rumble below 20Hz thanks to the input capacitance for MM cartridges and switchable subsonic.
Optimum Components
Other high calibre features include dual mono circuitry for optimised channel separation; precise RIAA equalisation and selection between 2 phono inputs & 2 line outputs.
Customer Reviews
-
Kingsley Harte
13 Jul 2017
What a fab bit of kit !
There is no hum at all and its sounds amazing.
Got mine setup to
Project RPM1 Carbon with acrylic platter
Goldring 1012GX cartridge
Project CC RCA leads
Rothwell phono leads
Yamaha AV 7.1 receiver
