Features
| Warranty length | 3 Years |
|---|---|
| Brand | PS Audio |
Tech Specs
Connectors
- Audio Inputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Audio Outputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Trigger Output: 2
- USB: For USB firmware update only
Performance
- Max Gain: 12.6dB
- Frequency Response: 15Hz-150kHz, +/- 0.1dB
- Input Impedance: 50K Ω RCA / Single-Ended
- 100K Ω XLR / Balanced
- Bandwidth: 5Hz-500kHz, -3dB
- THD: < .0002% @ 1kHz, 1VRMS input
- THD+N: < .0003% @ 1kHz, 1VRMS input
- IMD: .0005% @ 1VRMS input, CCIF, 20kHz mean, 1kHz difference
- Crosstalk: -115dB, One channel driven
- Output level: 10VRMS Single-ended / 20VRMS Balanced @ 1% THD+N
- Output Impedance: 100Ω
Power Requirements
- Input Power: Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
- Power Consumption: 15W
Physical
- Unit Weight: 24.1 lbs or 10.9 kg
- Unit Dimensions: 17"W x 3.3"H x 13"D (with knob, without knob 12"D) [43.18 cm x 8.38 cm x 33.02 (with knob, without 30.48 cm)]
- Shipping Weight: 27.6 lbs or 12.5 kg
- Shipping Dimensions: 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm]
Product Description

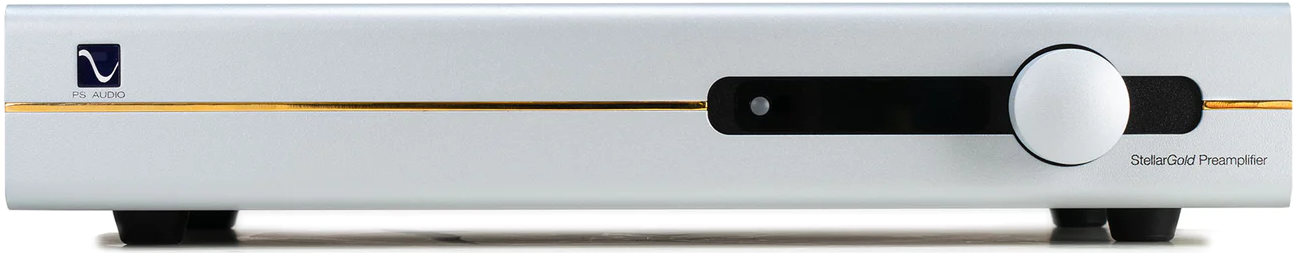

The PS Audio Stellar Gold pre amplifier was released at the same time as the Stellar Gold DAC and both models are part of the Stellar Gold range, designed to offer much higher levels of performance than the standard Stellar range.
More info to follow soon.
