Features
| Warranty length | Lifetime |
|---|---|
| Brand | QED Cables |
Tech Specs
- Type: Bi-Wire, Super flex design
- Concentric spiral geometry
- Isolated bass/treble conductor
- Quad core construction
- Multi-stranded multi-conductor
- Wire gauge: 10 AWG
- Silver plated 99.999% OFC
- Aircore Technology
- Jacket: OD 19.60mm
- Cross-sectional area: 5.5mm2
- Loop resistance: 0.006Ω/m
- Capacitance: 76pF/m
- Inductance: 0.46µH/m
- Dissipation factor: 0.0070
- Suitable: High end installation
- Ultra-thin low loss LDPE Insulation
- Concentric screen technology
Product Description

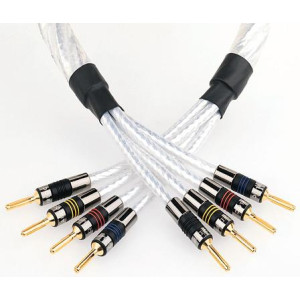

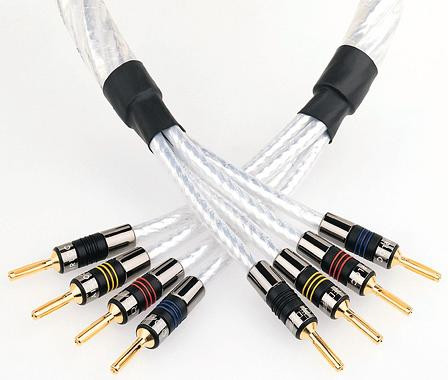

QED Genesis Silver Spiral Bi-Wire is a reference quality award-winning speaker cable, featuring an exceptionally low resistance that allows amplifiers to exert outstanding grip and control over the speakers they're driving, especially at low frequencies - price includes free UK delivery and QED's lifetime warranty.
This isn't just another speaker cable, it's a high-performance audio component! A superb match for the finest hi-fi and home cinema systems.
Aircore Technology
QED cables above 2.5mm2 cross-sectional area utilise air core technology to obviate the skin effect by bundling several separately insulated smaller cores together to make up a larger CSA. If these conductors are arranged around a hollow central core of polyethylene the self inductance exhibited by the cable can be reduced to around half that predicted by calculation.
Please Note
Price is per metre. Enter the total number of metres needed in the quantity box and click BUY. This is supplied unterminated (bare wire).
Termination Service

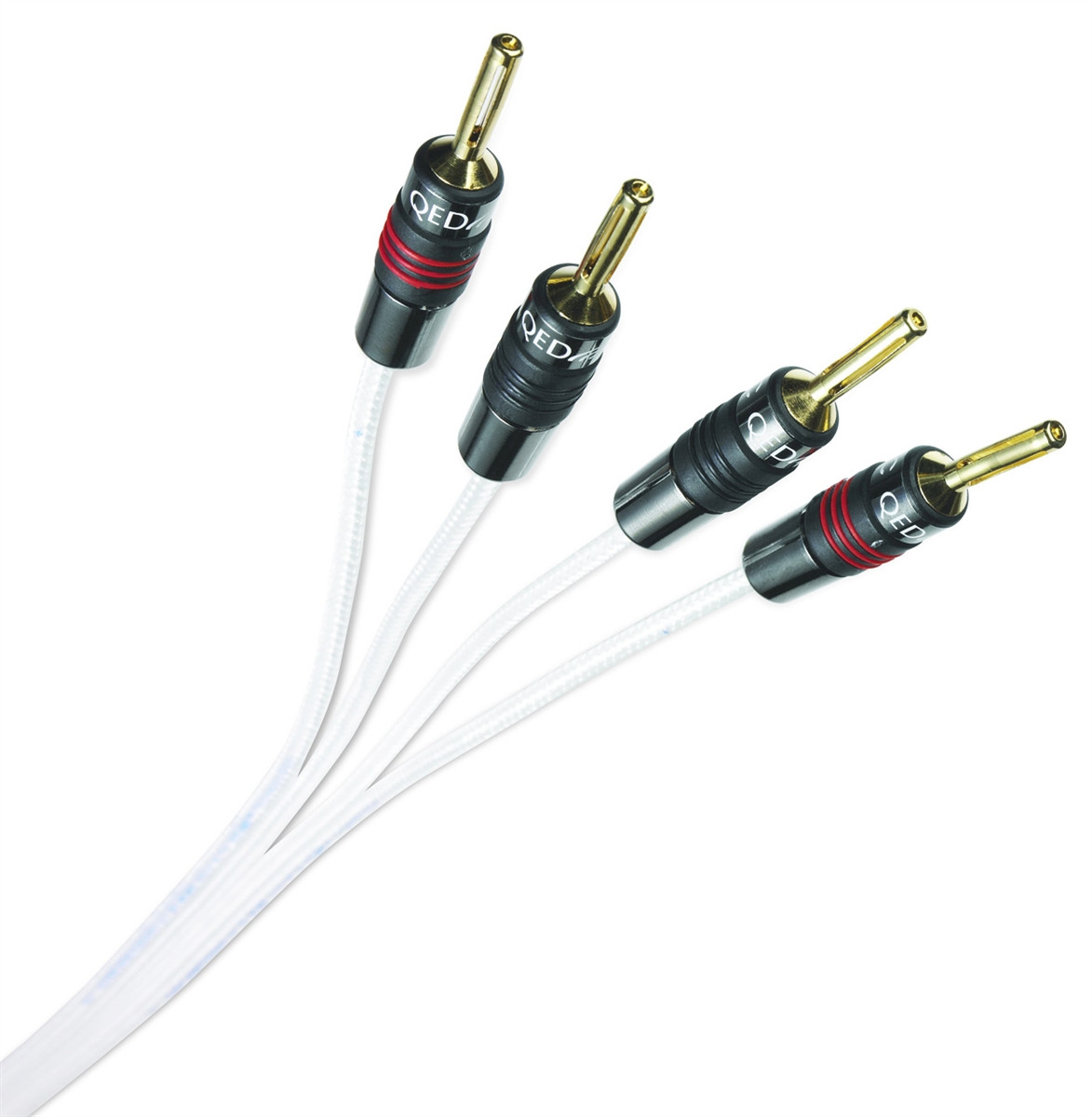

You can also order QED Termination Service, for which we use high-quality QED Airloc plugs as shown in the photo above. (If you order 4m, and order termination, we will terminate 2 x 2m lengths, if you order 10m, we will terminate 2 x 5m lengths, and so on). As this is a bi-wire cable, this termination is available as biwire (2-4) or biamp (4-4). If you have several cables you need to be terminated or if you prefer to discuss termination on the phone, you can call to order on 0121 224 7300
