Features
| Warranty length | 2 Years |
|---|---|
| Brand | Sbooster |
Tech Specs
- Output Voltage & Current: 12V - 3A, 13V - 2.25A, 13.5V - 2.1A

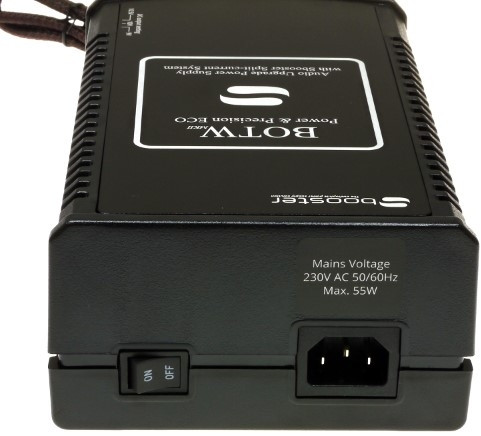

- Mains Voltage: 100 Volt AC 50/60Hz, 110 Volt AC 50/60Hz,
- 115 Volt AC 50/60Hz, 120 Volt AC 50/60Hz
- 220 Volt AC 50/60Hz, 230 Volt AC 50/60Hz
- 240 Volt AC 50/60Hz

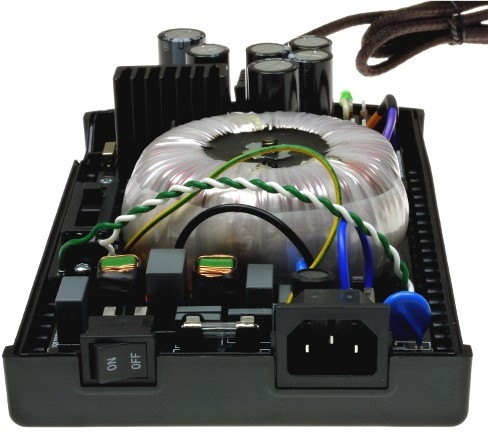

- Transformer: 50VA audio grade toroidal with electrostatic and magnetic shielding
- Mains filter: High performance dual stage mains filter with earth line choke
- Rectifier bridge: Power Schottky barrier rectifiers
- Bulk capacitors: Low Impedance High Ripple Current Capacitors
- Regulator: High-current ultra fast transient response LDO with external high precision shunt reference circuit
- Filter capacitors: Non inductive polypropylene film capacitors
- DC power cord: 95cm 16 AWG spiral shielded, additional shielding and qualitly sleeving

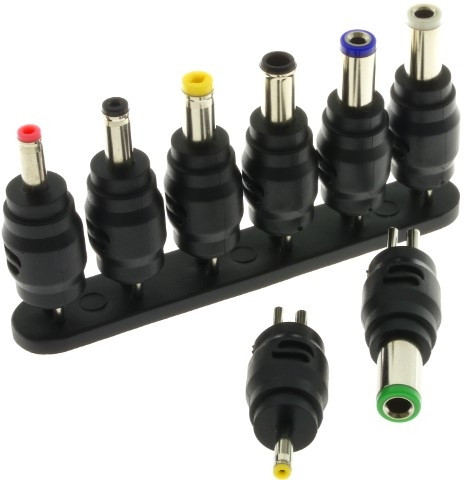

- integrated Sbooster Split-current system and interchangeable gold plated DC-plug-connector
- Mains cable: Stock supplied
- Dimension: 240*130*75mm
- Weight: 1.85Kg
- Safety approvals: CE/GS/CCC/KC/CTUVUS/FCC/PSB IEC60065 standard
Product Description

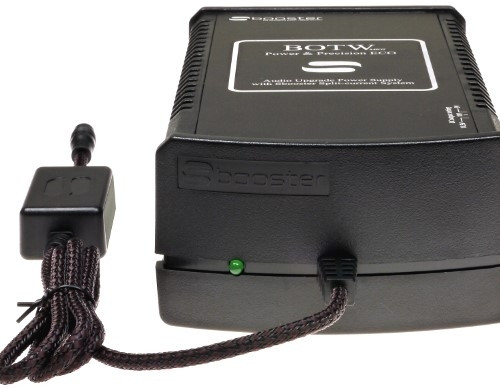

Sbooster BOTW P&P ECO MkII Upgrade Power Supply has been developed off the back of the hugely successful BOTW P&P ECO which gained its popularity after being launched in Summer 2015. This model efficiently upgrades your equipment by providing a more powerful, precise current for an optimised performance.
How does it work?
Enhance the audio quality of your equipment with the BOTW P&P ECO MkII. This upgrade power starts to purify the power supply at the point of entry, and uses a dual main filter along with an earth line choke to clean the current from noise pollution before it reaches the custom made magnetic shielded transformer.
Efficient Design
The latest Eco Power Supply features a highly efficient design. It uses 35% less energy compared to that of conventional power supplies, and 50% more output of the connected electronics.The Eco MkII Upgrade power supply provides an enhanced sound experience without the pollution of a switch mode adaptor and with nearly the same low energy consumption.
Purified Power
The BOTW P&P Eco upgrade power supply provides the unique split current system with a powerful, purified and clean power supply that will make your audio equipment perform at a higher level. The power supply is boosted, and filtered right before the voltage and current enters your audio device providing a spacious soundstage and natural listening experience.
Please Note
The BOTW P&P ECO upgrade power supplies are equipped with an interchangeable DC-tip system and have selectable output voltages. The higher output settings are intended for the use of the Sbooster Ultra power supply add-on.
The BOTW P&P ECO MKII is available in a 100/110/115/120/220/230/240V AC 50/60Hz version. With your order, please select the version that meets your local mains voltage. Additionally, you can select one of the four mains cable variants. If you prefer to use a special audio grade power cord with the BOTW P&P ECO please note that the mains cable has to be equipped with an IEC 13 connector.
The tables below list which models each version of this upgrade is compatible with. Models shown in red below are also compatible with the optional SBooster Ultra Mk2 upgrade (available separately).
| 5-6V Version | |
| Brand | Model |
| AMI Muse | AMI MUSIK DS5 |
| Audiobyte | Hydra Z |
| Channel Islands | Transient MKII USB |
| Chord | Qutest |
| DarbeeVision | Darblet DVP 5000/ 4000 /5100 CIE |
| Dynaudio | Xeo 3 & 5 USB In Version* |
| Dynaudio | Xeo 4 & 6 Aux/Line/Digital In |
| Dynaudio | Xeo 3 & 5 Aux/Line/Digital In |
| Essence | HDACC Preamp/ DAC |
| Essence | Evolve® HDMI 24/192K LPCM DAC |
| Lindemann | USB-DAC 24 bit/192 kHz |
| Logitech | Squeezebox Touch/Classic |
| Mass Fidelity | Relay Hi-Fi bluetooth DAC |
| MiniDSP | OpenDRC-DI/AN/DA/DA8 |
| MiniDSP | miniDSP (Kit) 2x4 5V - 24V DC |
| MiniDSP | U-DAC8 |
| MiniDSP | DDRC/22A/22D/22DA |
| MiniDSP | N-DAC8 |
| MiniDSP | nanoDIGI 2x8 (Kit) |
| Musical Fidelity | MX-DAC |
| NAD | D 1050 USB DAC |
| Onkyo | ND-S1 |
| Ratoc Audio Lab | RAL-24192UT1/ RAL-24192HA1 |
| Ratoc Audio Lab | RAL-A2496HA1 |
| Sennheiser | RS-180 |
| Sonore | micro-Rendu |
| Wadia | di122 digital audio decoder |
| 8-9V Version | |
| Brand | Model |
| Apogee | Mini DAC |
| iFi Audio | micro – iCAN/ iTube/ iUSBPower |
| iFi Audio | micro – iPhono |
| Koss | ESP/950 |
| Logitech | Squeezebox Duet |
| Peachtree | DAC iT |
| Pro-ject/ BOX DESIGN | Pro-Ject Stream Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject Stream Box DS net |
| Sennheiser | RS-195/185/175/165 |
| SOtM | sHP-100 |
| SOtM | sMS-100 |
| SOtM | sMS-200 Ultra |
| SOtM | tX-USB PCIe USB Audio Card |
| SOtM | dX-USB HD USB to S/PDIF |
| SOtM | sDP-1000 DAC |
| Weiss Engineering | INT202/INT203 firewire interface |
| Weiss Engineering | INT204 usb/dsd interface |
| Wyred4Sound | Recovery |
| Wyred4Sound | µDAC/ µDAC-HD |
| Wyred4Sound | µLink USB-S/PDIF converter |
| Wyred4Sound | Remedy USB Reclocker |
| Teufel Audio | Raumfeld Connector² |
| 12-13V Version | |
| Brand | Model |
| AMI Muse | AMI MUSIK DDH-1 |
| Antipodes Audio | DS Base |
| Antipodes Audio | DS EDGE |
| Antipodes Audio | DS GT |
| Arcam | airDAC |
| Arcam | irDAC |
| Arcam | irDAC II |
| Arcam | rHead |
| Arcam | rPlay |
| Audinst | HUD-DX1 |
| Audinst | HUD-MX1 |
| Audinst | HUD-MX2 |
| B.M.C. Audio | PureMedia |
| Bel Canto | DAC1.5 |
| Bel Canto | CD2 CD player 24/96 |
| Bel Canto | PHONO3VB MM/MC |
| Bel Canto | FM1 FM Tuner |
| Bel Canto | DAC3.5VB MKII |
| Beresford | TC-7110 Capella |
| Beresford | TC-7530DC/ TC-7533DC |
| Yellowsound | VAULT I |
| Bryston | BDP-π |
| Cambridge Audio | DacMagic PLUS |
| Cambridge Audio | DacMagic 100 |
| Cambridge Audio | iD100 Dock |
| Chord | Chordette DUAL |
| Chord | Chordette Gem |
| Chord | Prime stereo |
| Chord | 2Qute DAC |
| Chord | Chordette QuteHD |
| Chord | Chordette EX DSD |
| Chord | INDEX Network Music Player |
| Computer Audiophile | v3 Carbon |
| Computer Audiophile | Lagoon |
| Computer Audiophile | Topanga |
| Dangerous Music | Source |
| Digibit | Aria mini/ Piccolo |
| DSPeaker | Anti-Mode 2.0 Dual Core |
| Dynavector | P75 Mk3 |
| Dynavector | P75 Mk4 |
| Elac | Discovery Music Server |
| Empirical Audio | Off-Ramp 5 |
| Empirical Audio | Synchro-Mesh |
| exaSound Audio Design | e22 DSD256 DAC |
| exaSound Audio Design | e28 DSD256 multi-channel |
| exaSound Audio Design | Playpoint |
| exaSound Audio Design | e12 DAC |
| exaSound Audio Design | e20 DAC Mk III |
| Fidelizer Audio | Nimitra |
| HFX | Solid E4 |
| HFX | Solid V4 |
| innuOS | ZENMINI |
| JAVS | X3 HDSD |
| JAVS | X HDSD |
| JAVS | X3 HDSD HPA |
| JAVS | X5-UDA |
| JAVS | X-DCC Reserve |
| JAVS | X-DCC plus+ |
| Lead Audio | LA 100 |
| Lead Audio | LA 120 A/B |
| Lead Audio | NF-DAC 192 |
| Lead Audio | NF-DAC 384 |
| LH Labs | Geek Pulse |
| LH Labs | Geek Pulse xfi |
| LH Labs | Geek Pulse xfi |
| Lumin | D1 |
| Lumin | L1 |
| Lumin | D2* |
| Lumin | U1-mini * |
| Lumin | T2 * |
| Lynx Studio Technology | Hilo Reference |
| M2TECH | Evo Clock Two |
| M2TECH | Evo DAC Two |
| M2TECH | Evo DAC Two Plus |
| M2TECH | Hiface Evo Two |
| Magic TV | MTV1000 |
| Magic TV | MTV3300D |
| Magic TV | MTV3800D |
| Magic TV | MTV8000D |
| McIntosh | MS500 |
| McIntosh | MT2 |
| Melco | N100 |
| Melco | D100 |
| Melco | E100 |
| Meridian Audio | Media Core 200 |
| Meridian Audio | Audio Core 200 |
| Meridian Audio | Meridian Prime |
| MiniDSP | DDRC-88A |
| MiniDSP | miniDSP (Kit) 2x4 5V - 24V DC |
| MiniDSP | miniDSP 10x10 Hd |
| MiniDSP | miniDSP 2x8 |
| MiniDSP | miniDSP 4x10 |
| MiniDSP | miniDSP 8x8 (kit) |
| MiniDSP | DDRC-24 |
| MiniDSP | miniDSP Balanced (Kit) |
| Moon | 180 MiND Music Streamer |
| Music Hall | Dac15.2 |
| Musical Fidelity | LX2-HPA |
| Musical Fidelity | LX2-LPS |
| Musical Fidelity | MX-VYNL |
| Musical Fidelity | V90-BHA |
| Musical Fidelity | V90-BLU |
| Musical Fidelity | V90-DAC |
| Musical Fidelity | V90-HPA |
| Musical Fidelity | V90-LPS |
| Musical Fidelity | V-CAN |
| Musical Fidelity | V-CAN II |
| Musical Fidelity | V-DAC |
| Musical Fidelity | V-DAC II |
| Musical Surroundings | MYDAC II |
| Mytek Digital | Brooklyn DAC+ |
| Mytek Digital | Brooklyn DAC |
| Mytek Digital | Liberty DAC |
| Naim Audio | UnitiServe |
| Oehlbach | XXL® PHONO PREAMP ULTRA |
| Oehlbach | XXL® DAC ULTRA |
| Paradigm | PW LINK |
| Pathos Acoustics SRL | Aurium |
| Pathos Acoustics SRL | Converto EVO |
| Ratoc Audio Lab | RAL-DSDHA1 |
| Ripstreamer | PLAYER 64BITS ROON 1.3 |
| RME - Audio Solutions | Babyface |
| RME - Audio Solutions | MADIface Pro |
| RME - Audio Solutions | MADIface XT |
| Rotel | RDD-06 |
| Rupert Neve | 5017 |
| Rupert Neve | 5032 |
| Rupert Neve | 5033 |
| Rupert Neve | 5043 |
| SOtM | sMS-200 |
| SOtM | sMS-200-ultra |
| SOtM | sMS-200 Neo |
| SOtM | sMS-200-ultra Neo |
| Stax | SRM-212** |
| Stax | SRM-252S** |
| TEAC | PD-301DAP |
| TERRATEC | DMX 6Fire USB |
| Toany High Fidelity | TD-192 |
| Toany High Fidelity | TD-384SE |
| URBAN HIFI | microZOTL2.0 |
| YULONG | A800 Class A |
| YULONG | U100 USB |
| YULONG | U18 |
| 15-16V Version | |
| Brand | Model |
| Alpha Design Labs | Furutech Esprit DAC |
| Alpha Design Labs | GT40α USB DAC |
| Alpha Design Labs | Stratos DAC |
| Auralic | Aries LE/Femto |
| Auralic | Mini |
| Beresford | TC-7520SEG/ Caiman+ |
| Beresford | TC-7534 Caiman Mark II |
| Beresford | CAIMAN SEG TC-7535 |
| Denon | DA-300USB |
| Exogal | Comet DAC |
| FiiO | QOGIR-E09K |
| iFi Audio | micro – iPhono2 |
| iFi Audio | micro - iCAN SE |
| Linnenberg-audio | VIVACE |
| M2TECH | Marley |
| M2TECH | Joplin / Joplin-MK2 |
| M2TECH | Young / Young DSD |
| Martin Logan | ElectroMotion ESL/ ESL X |
| Martin Logan | ESL 9 Classic |
| Martin Logan | Theos |
| Nuforce | Icon HD/ Icon HDP |
| RME - Audio Solutions | ADI-2/ ADI-4 DD |
| RME - Audio Solutions | ADI-2 PRO |
| RME - Audio Solutions | Fireface UC/ Fireface UCX |
| RME - Audio Solutions | QuadMic II |
| RME - Audio Solutions | Multiface II |
| Topping | D20 DAC / D3 DAC |
| Topping | D3 DAC |
| 18-19V Version | |
| Brand | Model |
| Antelope Audio | Zodiac Gold 384 kHz DAC |
| Antelope Audio | Zodiac+ Mastering DAC |
| Antelope Audio | Zen Studio Portable |
| Auralic | Gemini |
| B.M.C. Audio | MiniMedia |
| Centrance | DACmini™ CX |
| HFX | AssetNAS D4 |
| Moon | MOON 110LP Phono Preamplifier |
| Pro-ject/ BOX DESIGN | Speed Box DS/ S |
| Pro-ject/ BOX DESIGN | Pro-Ject CD Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject DAC Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject Head Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject Phono Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject Phono Box DS+ |
| Pro-ject/ BOX DESIGN | Pro-Ject Pre Box DS |
| Pro-ject/ BOX DESIGN | Pro-Ject Stream Box DS+ |
| Pro-ject/ BOX DESIGN | Pro-Ject Tube Box DS |
| SOtM | sMS-1000 A/D/U |
| 24V Version | |
| Brand | Model |
| Creek | OBH-11 |
| Creek | OBH-15 Mk2 |
| Creek | OBH-21MK2 |
| Dr. Feikert | Woodpecker * |
| Graham Slee | Accession |
| Graham Slee | Elevator EXP |
| Graham Slee | Era Gold V |
| Graham Slee | Gram Amp 2 |
| Graham Slee | Gram Amp 3 |
| Graham Slee | Jazz |
| Graham Slee | Novo |
| Graham Slee | Reflex C |
| Graham Slee | Reflex M |
| Graham Slee | Revelation |
| Graham Slee | Solo |
| Musical Surroundings | Phonomena II+ |
| Octave | EQ.2 ** |
| Pathos Acoustics SRL | Converto |
| Rothwell | Rialto |
| Rothwell | Simplex |
| Rothwell | Headspace |
| Rupert Neve | RNHP |
| Soundsmith | MMP3 / MMP4 / MCP2 |
| Soundsmith | SG200 - SG210 - SG230 |
