Features
Warranty length | 2 Years |
---|---|
Brand | TEAC Audio |
Tech Specs
Turntable
- Type: Belt Drive, DC Motor
- Rotation Speeds: 33-1/3, 45 rpm
- Deviation of Speed: +/-2%
- Wow-and-Flutters: 0.2%
- SNR: >67dB (A-wtd), 60dB (unwtd, 20kHz, LPF)
- Turntable Platter: 30cm Aluminum Die-cast
Tonearm section
- Type Straight, Static-balanced
- Effective Length 223 mm
- Stylus Pressure Range 0 to 5 g
- Compatible Cartridge 3.5 to 6.5 g
- Anti-skating Adjustment Supported
Headshell and Cartridge
- Type: VM-type
- Output Voltage 3.5 mV (1 kHz, 5cm/s)
- Stylus Pressure 3.5g (+/-0.5g)
- Cartridge weight 5g (+/- 0.3g)
- Replacement Stylus ATN3600L
- Headshell weight: 10g (including nuts, screws, and wires)
Analogue Output
- Connectors: RCA Pin Jack x 1 pair (Chrome-plated)
- Out Voltage: Phono 4.5mV (+/-3dB), Line 120mV (-13dBV)
Bluetooth
- Range Approx. 10m
- Supported Codec SBC
General
- Operating Temperature +5˚C to +35˚C
- Operation Power AC Adapter
- Input AC 100-240V, 50/60Hz
- Output DC 12V 500mA
- Power Consumption: 1.5W or less
- Standby Power: 0.5 Watts or less
- Dimensions (WHD): 420 × 117× 356mm
- Weight (Net) 4.9 kg / 10.8 lbs
Accessories
- Felt Mat
- EP Adapter
- Counter Weight
- Headshell
- VM-type AT-3600L cartridge
- Turntable (Platter)
- Dust Cover and Hinges
- RCA Audio Cable
- AC Adapter (GPE053A-V120050)
- Owner’s Manual (+Warranty Card)
Product Description

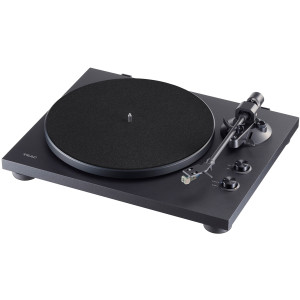

TEAC TN-280BT-A3 is not only a great sounding turntable for music enthusiastics who want to enjoy vinyl records and re-issues, it also brings you a totally new way of listening to vinyl records with its Bluetooth capability. No extra cost for hifi components or complicated wiring is required. Only Bluetooth speakers or headphones you might have for iPhones are required to enjoy the world of vinyl records.
The TN-280BT-A3 also accommodates a built in Phono EQ amplifier that provides Line output, and allows you to connect to almost any sound system regardless type of inputs. The belt drive motor on the TN-280BT-A3 reduces vibration for sweeter, more accurate sound than direct drive turntables for DJ, while an al uminum die cast platter and anti skating system provide a solid foundation for great sounding playback.
The high performance, upgradable VM, equivalent to MM cartridge, by audio technica captures every detail on your record, and the static balanced straight tone arm ensures clear sound. It’s all housed in a handsome case in black or walnut veneer. For music enthusiasts who want to hear every sensuous note of their vinyl collection
Built in Bluetooth Transmitter
The TN-280BT-A3 delivers the sound wirelessly via built-in Bluetooth transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the right-front side of the cabinet, and pairing indicator tells you the speakers/headphone is successfully connected.
Authentic 2 Speed Belt Drive Turntable
The high inertia Aluminum die-cast platter is driven by a high torque DC motor for stable rotation for both 33-1/3 and 45 rpm. A soft felt mat further reduces vibration effectively. The high accuracy of the spindle is maintained by a polished Stainless steel Spindle and highly durable bronze spindle holder. Unlike other with plastic chassis, the heavy MDF cabinet minimises vibrations and resonance for clearer sound when you playback your vinyl collection.
Built In MM Cartridge + Phono EQ Amplifier
Enjoy vinyl playback with any amplifier. The TN-280BT-A3 supports both Phono and Line outputs that allow you to enjoy vinyl records with or without phono equalizer.
Static Balanced Tonearm
A straight tone-arm is employed for high tracking accuracy. The anti-skating mechanism also ensures accurate tracking of vinyl records. A VM-type, equivalent to MM type, cartridge AT3600L by audio-technica is installed at the factory. Same as upper models, the TN-280BT’s anti-skating mechanism ensures accurate tracking.
Key Features
- 2 speed Belt drive turntable
- Built in Bluetooth transmitter
- Built in MM phono equalizer and Phono , Line, and Bluetooth outputs
- MM cartridge AT3600L by audio technica included
- Aluminum die cast platter
- Anti skating mechanism
- High density MDF cabinet for better vibration and resonance
