Features
| Warranty length | 5 Years |
|---|---|
| Colour | Black |
| Brand | Arcam |
Tech Specs
Continuous power output
- 2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W
- 1 channel driven, 8Ω bridged mode, 20-20kHz 790W
- Harmonic distortion: 80% power, 8Ω at 1kHz 0.001%
- Inputs
- RCA Type: XLR Type
- Input sensitivity: 200W / 8Ω 1.15V RMS 2.3V RMS
- Signal/Noise ratio: (A-wtd) 50W / 8Ω 110dB
-Input impedance: 10kΩ
- Frequency response: 20 - 20kHz +/-0.05dB
General
- Mains voltage: 110–120V or 220–240V, 50–60Hz
- Power consumption: (maximum) 1.5kW
- Power consumption: (idle, typical) 90W
- Weight: (net) 18kg
Product Description

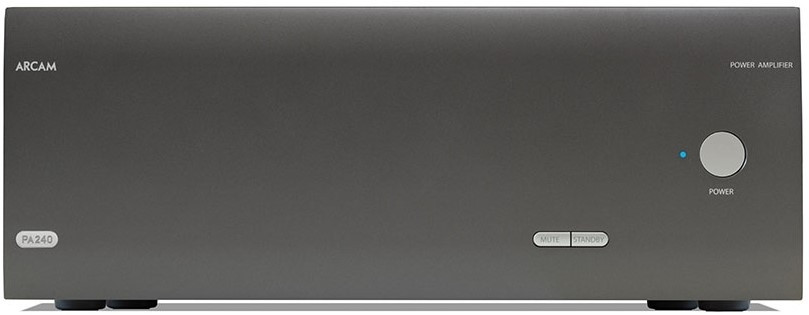

Arcam PA240 Two Channel Power Amplifier is another release in the HDA series of products designed to enhance the audio-visual experience in a home cinema setting.
Why the Arcam PA240?
Arcam PA240 delivers 380W of Class G and A amplification on each of its channels. It acts as a two channel power amplifier for driving front channels in home cinema or for stero systems.
Amplifier Design
Arcam’s PA240 power amplifier, based on the strong Arcam legacy, has been carefully crafted to produce high quality and entertaining performances.
PA240 Flexibility

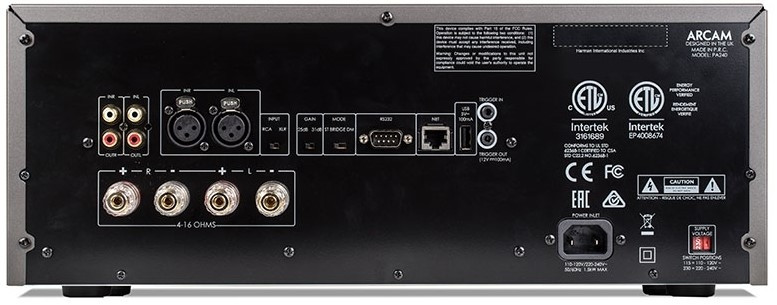

Arcam’s PA240 is fitted with a toroidal power supply; balanced XLR inputs and has RS232 control and Ethernet conneciton. The PA240 has mastered the ability to reproduce a realistic and flexible sound.
Key Features
- 2 Channel Power Amplifier
- 2 x 380W Class G amplification
- 1 x 790W Class G bridged mode
- Class G amplification with 50W of class A operation
- Toroidal transformer
- Stereo, Dual Mono or Bridged operation
- Ethernet, RS232 control
- Switchable RCA or balanced XLR inputs
