Features
| Warranty length | 6 Years |
|---|---|
| Brand | ATC Speakers |
Tech Specs
- HF Drivers: ATC 25mm Neodymium
- Mid/LF Drivers: 2x 150mm CLD
- Matched Response: +/- 0.5dB
- Freq Response (-6dB): 54Hz–22kHz
- Sensitivity: 88dB @ 1W @ 1metre
- Max SPL: 108dB
- Nominal Impedance: 8 Ohm
- Compatible Amplifier: 75-300W
- Crossover Frequency: 2.2kHz
- Dimensions (HWD): 230 x 500 x 303mm

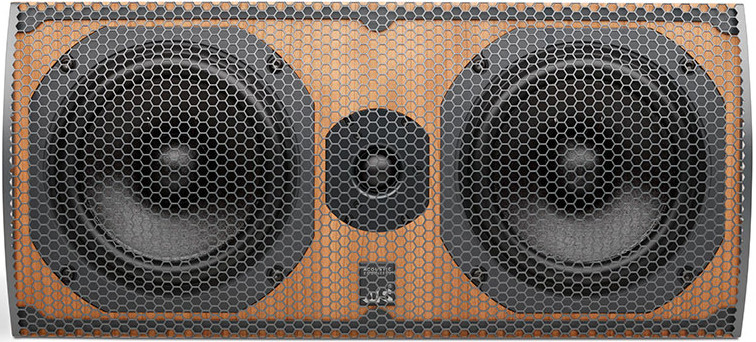

- Cabinet Grill: 28mm depth
- Weight: 18kg
Product Description
ATC C3 Centre Speaker is part of the entry series of multichannel models available in Cherry or Black Ash veneer. The perfect upgrade path to outstanding surround sound.
Entry Series
The C3 Centre speaker is designed to perfectly compliment Entry Series stereo speakers. The high dynamic range enhances the excitement and impact of modern film soundtracks while offering the outstanding vocal clarity and definition needed to fully enjoy a movie.
Drivers

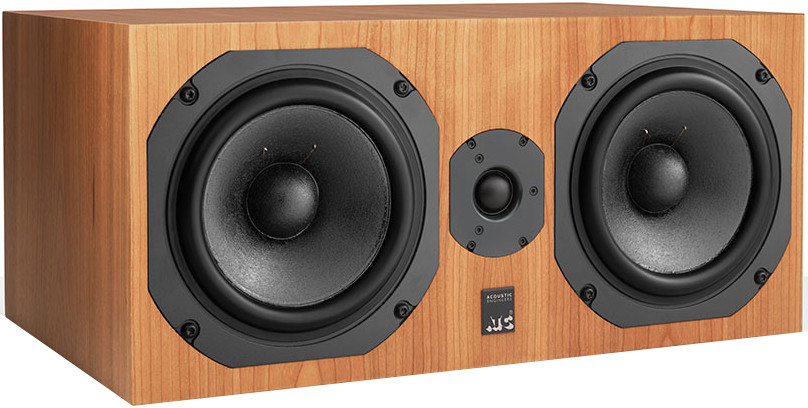

The discrete, compact design enables easy integration into a wide range of listening environments. It incorporates a newly designed and built 25mm soft dome HF unit with precision alloy waveguide along with twin ATC 150mm “CLD” mid/bass drivers.
Features
It has excellent efficiency and 8 ohm nominal impedance offering an easy amplifier load. There is a precision undercut bass pole and massive FEA optimised motor assemblies. Rounding up the design for optimum performance there is in-house, hand-wound precision flat wire coils and a flat impedance curve allowing easy load for amplifiers.
Configuration
Recommended for use on the centre channel coupled with ATC SCM11 for front Channels/rear surround plus C1 sub for the bass. To further upgrade your set up, you can add the SCM19 or SCM40 for front/rear and the larger C6 Sub for greater bass.
