Features
| Warranty length | 6 Years |
|---|---|
| Brand | ATC Speakers |
| Product Award | HiFi Choice Editors Choice |
Tech Specs
Drivers
- HF: 25mm dual suspension
- Mid/LF: ATC 150mm SL
Performance
- Matched Response: +/- 0.5dB
- Freq Resp (-6dB): 54Hz-22kHz
- Max SPL: 108dB
- Crossover Frequency: 2.5kHz
- Connectors: Male XLR
- Input sensitivity: 1V
Amplifier Output:
- LF Output: 150W
- HF Output: 32W
Dispersion
- Horizontal: ±80° Coherent
- Vertical: ±10° Coherent
Filters
- 2nd Order: critically damped
- With: phase compensation
- Overload: Active FET
- Gain: momentary reduction
Fault
- Protection: DC ptct/thermal trip
- Indication: On rear mounted LED
General:
- Dimensions (HWD): 980 x 370 x 344mm
- Weight: 31kg
Product Description

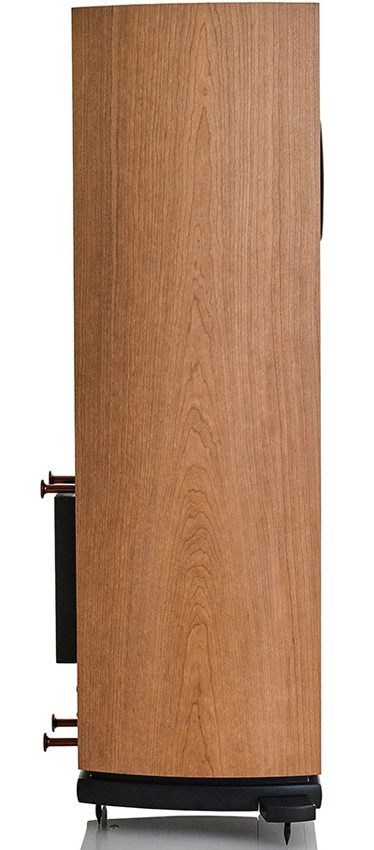

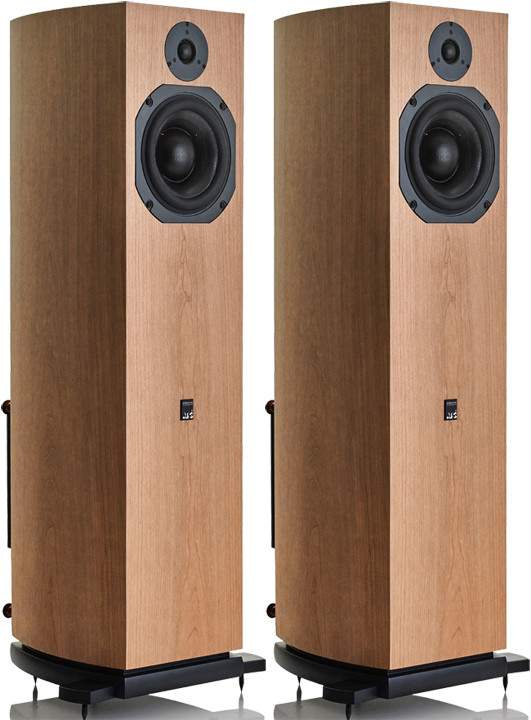

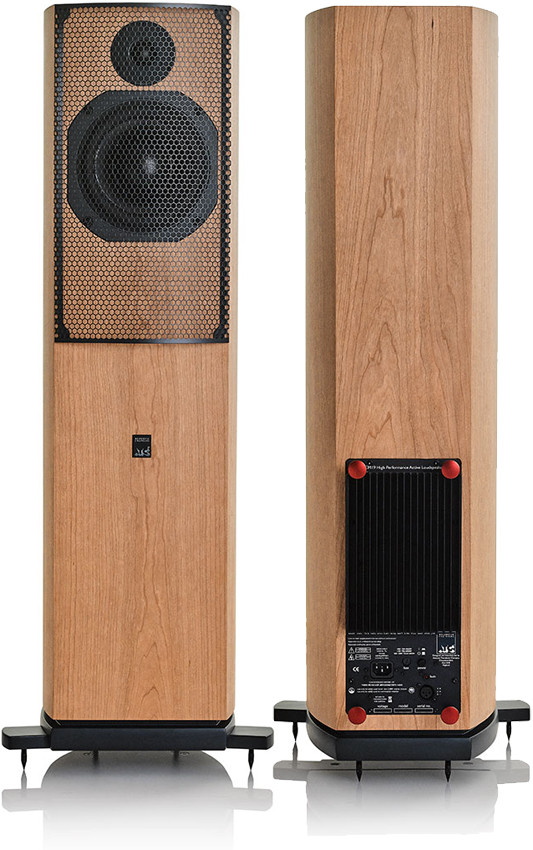

ATC SCM19A active loudspeaker is a HiFi Choice: Editor’s Choice award winner. This unobtrusive alternative to the SCM40A model features power amplifiers built-in to the speaker, reducing the possibility of any unwanted impact that can happen with a cable. Combine this pair of speakers with a pre-amp that suits your preference alto enjoy your music collection.
Entry Series Active Models
The ATC SCM19A is an extension of the entry series. It’s one of two active models within the range, made to deliver extremely high performance and instrumenting the specification and features of the professional products ATC is known for, the range was made for the audiophile. This particular model is s a two way alternative to one of ATC’s most loved models - the SCM40A.
ATC SM19A Extraordinary Performance
Similar to other ATC loudspeakers the ATC SCM19A features an incredible phase correction and magnitude response. The enhanced distortion performance paired with a vast dynamic range results in much higher performance and resolution.
Key Features

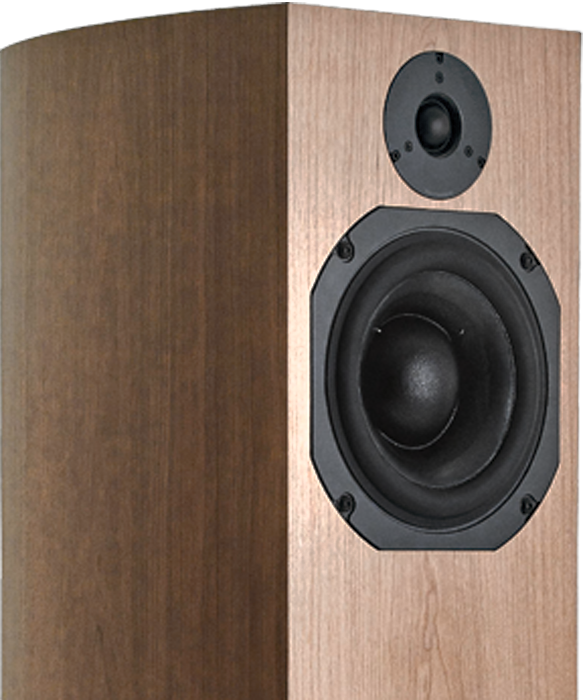

- Upgraded ATC designed and built dual suspension 25mm soft dome high-frequency unit with precision alloy waveguide.
- “SL” spec bass driver with 75mm integral Soft Dome.
- 9kg optimised short-coil/long gap motor assembly.
- Built-in 182 watt Class A/B Bi-amplifier
- Over load protection and active crossover filters
- Six year warranty.
Press Reviews
-
“Far and away its biggest asset (and this was also true of the SCM19) remains its fast, dynamic, and transparent midrange- one that anchors images, from vocals to violins, and establishes their palpable presence in the room.” (The Absolute Sound, April 2017)
-
“Particular credit goes to the newly designed tweeter, which integrates perfectly with the midrange and bass rather than sounding like a separate sound force.” (The Absolute Sound, April 2017)
-
“Image placement is fastidious; at times almost startling in the way musicians inhabit their own space with authority, clarity and specificity.” (The Absolute Sound, April 2017)
-
“Well, some may accuse me of heresy, but I won’t be passive in my appraisal of the SC-M19A. There is no two-way loudspeaker that I would recommend more highly.” (The Absolute Sound, April 2017)
