Product Video
Features
| Warranty length | 3 Years |
|---|---|
| Brand | Emotiva |
Tech Specs
Audio Specifications
Power Output (ALL channels driven):
- 90 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
- 125 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power Output (two channels driven):
- 120 watts RMS per channel; into 8 Ohms.
- 175 watts RMS per channel; into 4 Ohms.
- Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.02 dB).
- Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB.
- THD + noise: < 0.02% (A-weighted); ref rated power
- Signal to Noise Ratio (8 Ohm load):
> 112 dB; ref rated power; (A-weighted).
- Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads).
- Damping Factor (8 Ohm load): > 500.
- Input Sensitivity (for rated power; 8 Ohm load): 1.2 V.
- Gain: 29 dB.
- Input Impedance: 27 kOhms.
Input and Output Connections
- Input Connections: Unbalanced (RCA); one each per channel.
- Speaker Output Connections: Audiophile grade 5-way binding posts.
- Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
- Trigger Output: 12 VDC; can drive any load up to 120 mA.
- Power Requirements: 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
Front Panel Controls and Indicators
- Standby: push button.
- Status LEDs: one per channel; blue.
- Status LEDs change to red to indicate a fault condition.
- Standby LED: amber.
Rear Panel Controls
- AC Power Switch: rocker switch (switches AC main power).
- Status LEDs switch: disables front panel Status LEDs.
Dimensions:
- 17” wide x 4” high x 15-1/2” deep (not including connectors).
- 21” wide x 8” high x 21” deep (boxed).
Weight:
- 36 lbs (unboxed)
- 39 lbs (boxed)
Product Description

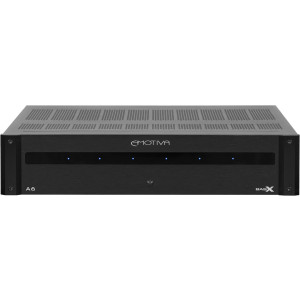

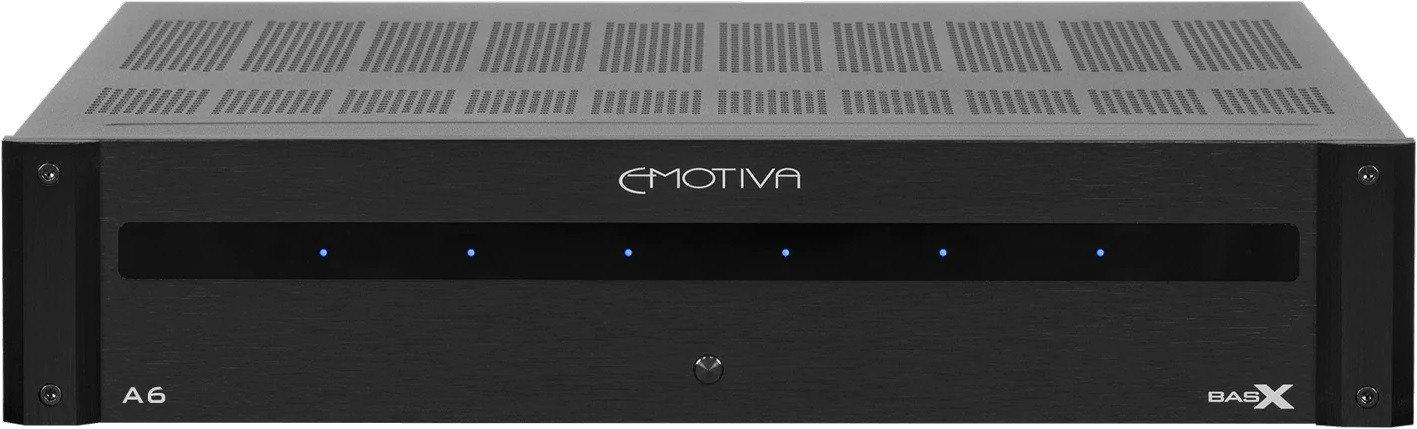

Emotiva BasX A6 is a six channel power amplifier, joining Emotiva’s range of great value multi-channel power amps previously released including the two-channel A2, three-channel A3, four-channel A4 and five-channel A5.
Classic Approach
The BasX A6 takes a classical approach to audio circuitry but with a modern twist that even the most discerning audiophile will appreciate.

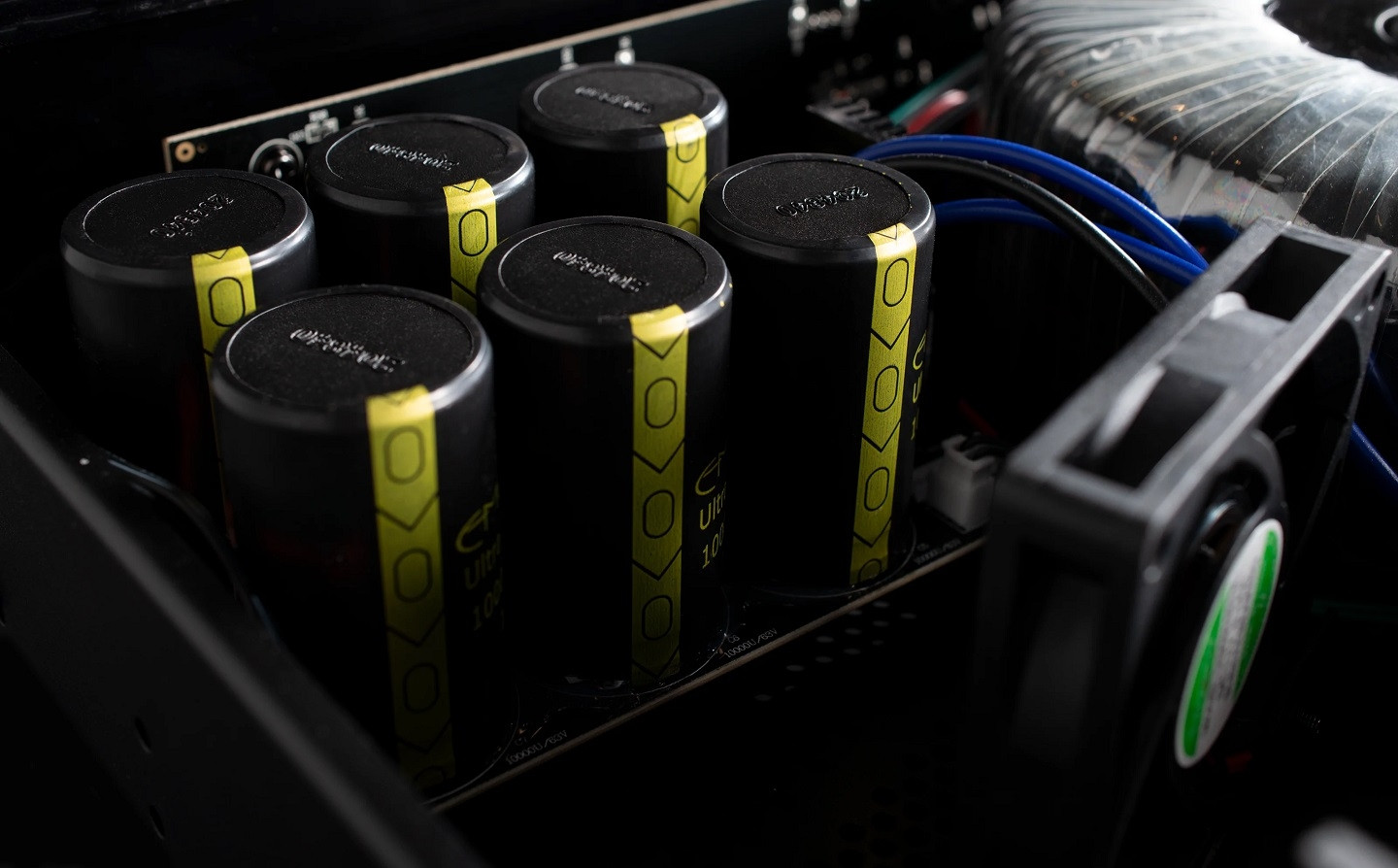

With a heavy duty linear power supply and a high current A/B output it truly allows you to truly feel and appreciate your speakers when they’re being run by this power amp.
High Quality Inputs
BasX A6 features six unbalanced RCA inputs which are designed with quality and long life in mind – allowing you to set this up once and not have to worry about signal degradation.
High Quality Outputs
On the output side of the A6, you have a set of 5 way audiophile grade binding posts which are again designed with the highest quality of signal in mind – allowing for the amplifier to perform to it's absolute optimum every single time you switch it on.
Protected
The BasX A6 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
