Features
| Warranty length | 1 Year |
|---|---|
| Colour | Black |
| Brand | iFi Audio |
Tech Specs
Zen DAC 6XX
- RCA: 3.5 (SE), 4.4mm (BAL))
- Headphone Out: 6.35 mm, 4.4 mm
- Gain: 0 dB, 6 dB,12 dB,18 dB adjust
- THD+N (A-Weighting): 0.0066% (BAL), 0.0058% (SE)
- Output Impedance (HP): BAL <2 Ohms, SE <1 Ohm
- ZOUT: Balanced line out: 200 Ohms
- SNR: 122 dB (BAL)
- Dynamic range: -122 dB (BAL)
- Frequency response: (-3dB): 10 Hz – 200 kHz
- Function Button: HD6XX adaption and/or XSpace; Bypass
- IMD: 0.01%
- Maximum power consumption: 13W/2.6A
- Dimensions: 160 x 117 x 35mm
- Weight: 0.85kg
Zen DAC V2
- USB3.0 B Socket
- USB2.0 compatible
- PCM (384/352.8/192/176.4/96/88.2/48/44.1kHz)
- DSD (256/128/64), DXD(384/352.8kHz),
- MQA (Decoder)
- Bit-Perfect DSD & DXD by Burr Brown
- Outputs: Balanced 4.4 mm
- UnBAL RCA 2V-6.2V max (var)/ 4.2V (fix)
- UnBAL RCA 1V-3.3V max (var)/ 2.1V (fix)
- Z out: <= 200 Ohm/100 Ohm
- SNR: <-117dB(A) @0dBFS (BAL/SE)
- DNR: >117 dB(A) @-60dBFS (BAL/SE)
- THD+N: <0.0011% @ 0dBFS (BAL/SE)
- No Signal Power Consumption: ~0.5W
- Max Signal Power Consumption: ~2.5W
- Dimensions (WDH): 158 x 117 x 35mm
- Weight: 505g / 1.11lbs
Product Description
iFi Audio Zen DAC Signature V2 DAC and Zen Can Signature 6XX headphone amplifier packaged together bring even purer DAC performance and takes sonic tailoring to the next level with ActivEQ. This package includes a high-performance 4.4mm Pentaconn cable to connect them together.

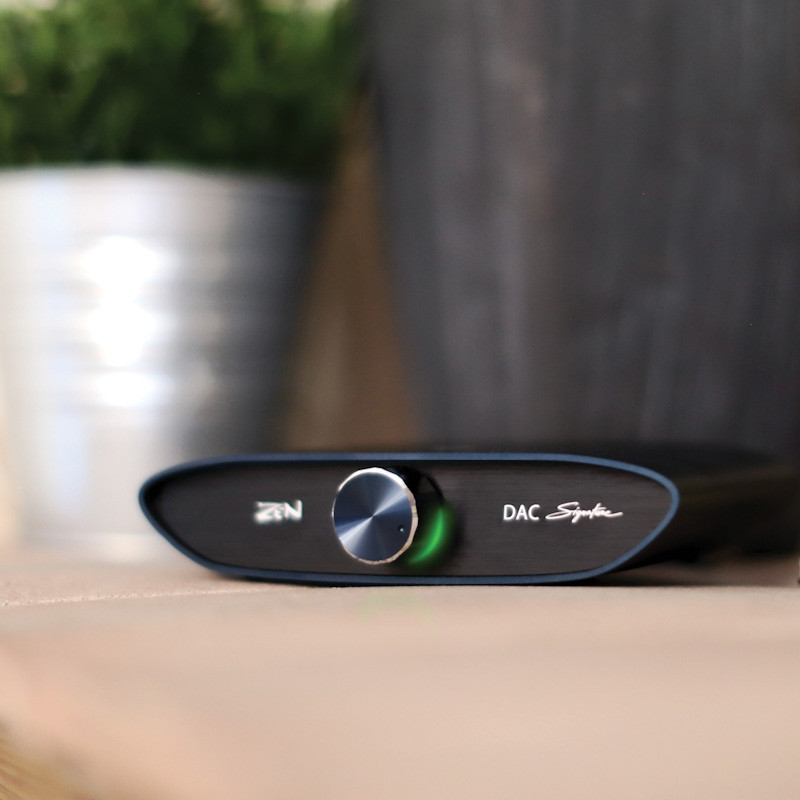

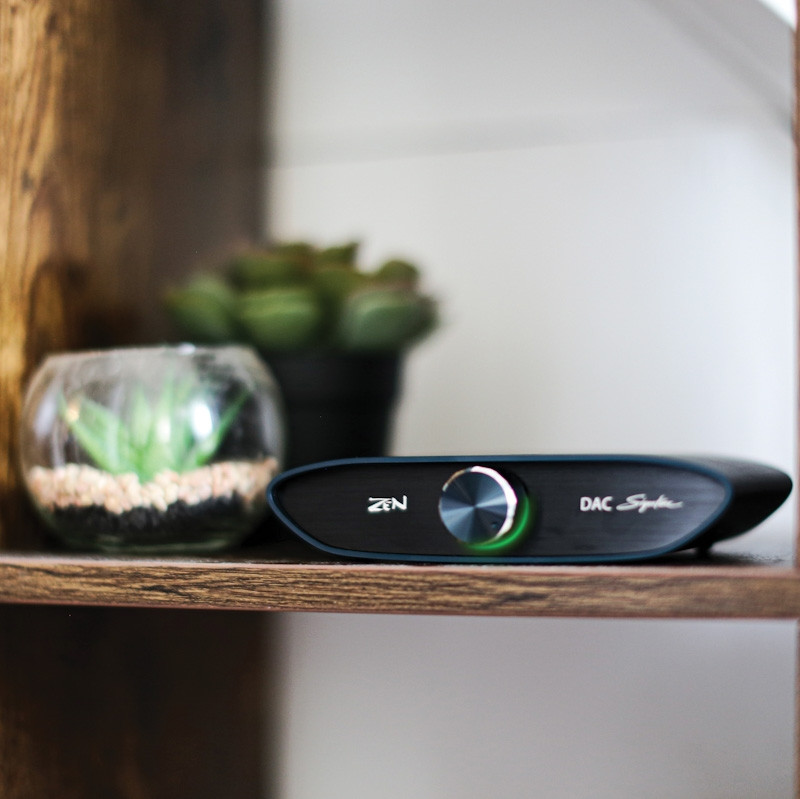

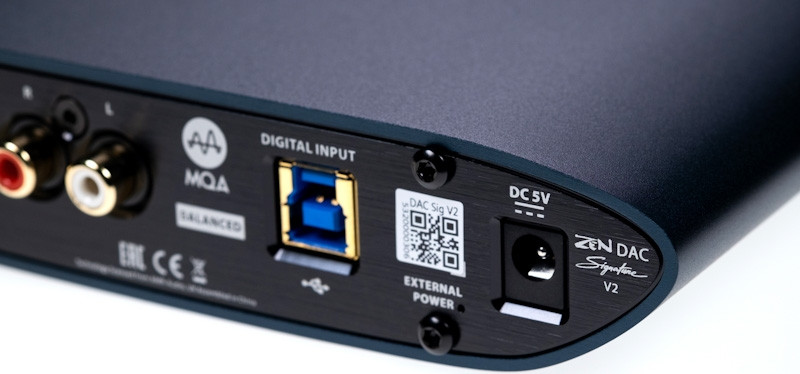

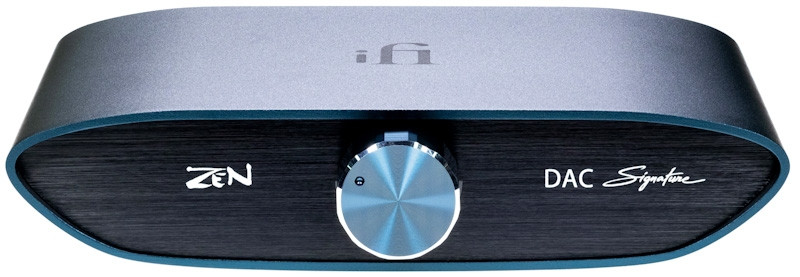

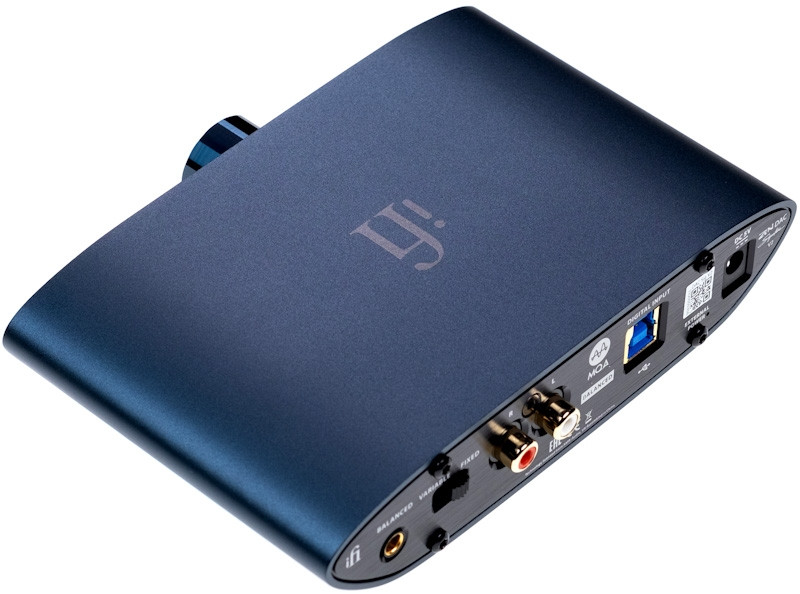

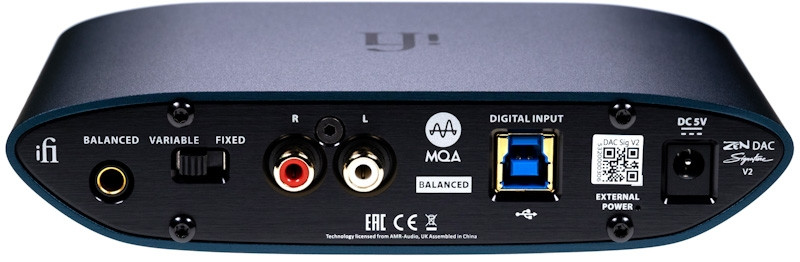

Zen DAC Signature V2
iFi Audio Zen DAC Signature V2 has been upgraded to bring you an even purer performance than the original. This fully-balanced 4.4mm output desktop DAC/preamp features full-MQA decoder, 16-XMOS chip, upgraded clock circuitry and fully-balanced differential circuitry.
Zen Can Signature 6XX
iFi Audio Zen Can Signature 6XX Headphone Amplifier is an all-analogue headphone amp that has improved features over the original Zen Can model. The Zen Can Sig 6XX retains all of the best features of the original unit, but with additional improved circuitry and customised EQ settings resulting in achieving the best performance possible out of Sennheiser headphones and can be adjusted to suit other headphones too.
More Info
- For more info, please visit our main iFi Audio Zen Can Signature 6XX page
- For more info, please visit our main iFi Audio Zen DAC Signature V2 page.
