Features

Colour	Black
Brand	JVC Projectors

Tech Specs

- D-ILA Technology: Yes
- Chip Type: 0.69-inch 4K D-ILA device
- Native Resolution: 4096 x 2160
- Number Of Chips: 3
- 8K/e-shift: Yes
- Display Resolution: 8192 x 4320

Light Source
- Laser: Yes
- Type: BLU-Escent Laser Diode
- Life Time: (Standard Mode) 20000 hours

- Brightness: 2200 lm
- Dynamic Contrast: ∞ : 1
- Native Contrast: 40000 : 1
- Dynamic Light Power contro:l Yes
- Modes: Mode 1 (gentle), Mode 2 (strong), Off
- Manual Aperture: Yes
- Range: -15 (stops down) to 0 (opens up)
- 100% REC: 709 Yes
- Color Bit Depth: 12 bit
- ISFccc Certification: Yes

HDR
- HDR10: Yes
- HDR10:+ Yes
- Frame Adapt: HDR Yes
- Theatre Optimizer: Yes
- HLG: Yes
- Auto Tone: Mapping Yes
- Mastering Info Display: Yes
- Info: data MaxCLL and MaxFALL mastering data
- HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR

Lens
- Zoom: 2 x
- Throw Ratio: 1.43-2.92:1
- Diameter: 65 mm
- Material :All-glass
- Build: 17-element, 15-group in full aluminium lens barrel.
- Lens: Shift Yes
- Range: Horizontal: ± 34 %
- Range Vertical: ± 80 %
- Motorized Zoom: Yes
- Motorized Shift: Yes
- Motorized Focus: Yes
- Projection Display: size (diagonal) 60 - 200 inch
- Memory Function: Yes
- Number of user presets: 10
- Lens: Cover Yes

HDMI
- Number of connections: 2
- Data Rate: 48 Gbps
- HDCP Version: 2.3
- 8K60P signal input: Yes
- 4K120p signal input: Yes
- 4K60P signal input: Yes
- Video Signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 24-120, 3840 x 2160p 24-120, 4096 x 2160p 24-120, 7680 x 4320p 24-60
- PC Signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
- Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range: Auto/ YCbCr4444 / YCbCr422 / RGB
- EDID Modes: A and B (older hardware may need to use B settings)

Connections
- Trigger out: Yes
- Connector: Mini-Jack (3,5mm)
- Power: DC 12V / 100mA
- 3D Synchro: Yes
- Connector: Mini DIN 3-pin
- LAN: Yes
- Connector: RJ45
- RS-232: Yes
- Connector: D-sub 9-pin
- Service: Yes
- Connector USB: (Type A) for firmware update.

3D
- 3D Capability: Yes
- 3D Versions: Frame Packing, Side-by-Side, Top & Bottom
- Frame Packing Resolutions: 720p 60/50, 1080p 24
- Side-by-Side Resolutions: 720p 60/50, 1080p 60/50/24, 1080i 60/50
- Top & Bottom Resolution: 720p 60/50, 1080p/24
- 3D Emitter (Optional): Yes, PK-EM2
- 3D Glasses (Optional): Yes, PK-AG3

Picture Settings
- Picture Modes: Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
- Color Temperatures: 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing: Depth 12 bit
- Gamma Adjust HDR: (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes
- Color Management: 6-Axis adjustable CMS
- MPC: Yes
- Low Latency Mode: Yes
- Clear Motion Drive: Yes
- Motion Enhance: Yes
- Auto Calibration: Yes
- Optional Probe needed: Yes
- Installation Mode: Yes
- Number of presets: 10
- Included settings: Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect
- Anamorphic Modes: 4 Modes (A, B, C, D)
- Control4: SDDP Yes

Power & Environment
- Power Requirement: AC100-240V, 50/60Hz
- Projector in Use: 420W
- Standby Eco Mode: 0.20W
- Network Standby: 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
- Switchover time: Approx. 15 min. (To standby or networked standby; default)
- Fan Noise: 24 dB
- Eco Mode: Yes
- Standby Timer: Yes
- Operating Temperature: 5°C to 35°C
- Operating Humidity: 20% to 80%
- Installation Angle Horizontal: +/- 5 degree / Vertical +/- 10 degree
- Installation Height: Below 2,000 m

In the box
- Remote Control: Yes, RM-MH27
- User Manual: Yes
- Power Cord: Yes
- Batteries: Yes, 2 x AAA-size batteries

Dimensions & Weight
- Product Dimensions: (WxHxD) 500 x 234 x 505 (mm)
- Product Weight: 22.5 Kg
- Package Dimensions: (WxHxD) 640 x 415 x 665 (mm)
- Package Weight: 27.9 Kg

Product Description

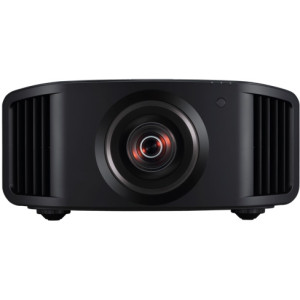

JVC DLA-NZ7 is the first projector in JVC’s DLA-NZ line, featuring 8K/e-shift technology reproducing 8K image quality and achieves a projector brightness of 2200 lumens. Additionally, it features an all glass,17-element, 15-group, 65mm diameter lens and a native contrast ratio of 40000:1.

World’s first home projector capable of inputting 8K60p/4K120p signals

The JVC DLA-NZ7 8K Projector is capable of inputting 8K60p/4K120p and utilises LSI’s that have been developed with the latest technology so they can process a vast amount of 8K input data. This results in gorgeous and realistic video images that can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

All-glass lens

JVC DLA-NZ7 8K Projector is equipped with a 17-element, 15-group all glass lens with a full aluminum lens barrel. The projector uses 5 ED lenses (extra-low dispersion glass) to project high resolution 8K images to each corner of the screen, each lens is calibrated for its own unique RGB index to achieve the perfect colour space.

4K120p input ideal for Low Latency Mode

The JVC DLA-NZ7 8K Projectors 4K120p input signal latency is minuscule, which makes it effective when displaying high frame-rate gaming content. The Low Latency Mode also reduces the delay in displaying the signals coming from consoles and PCs and improves the response to the user inputs.

BLU-Escent Laser Diode

The JVC DLA-NZ7 8K Projector uses the latest blue laser diode BLU-Escent for its light source. BLU-Esent technology allows the projector to achieve exceptional brightness and a longevity of 20,000 hours and its laser diode allows for dynamic control of the brightness to reproduce images that are even closer to human perception.
