Features
| Warranty length | 2 Years |
|---|---|
| Brand | Luxman |
Tech Specs
Turntable Platter
- Drive system: Belt drive system
- Motor: Brushless DC motor with PID control
- Material: Machined aluminum, Surface finish: Diamond cutMaterial
- Revolution: 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
- Wow and flutter: 0.04% or less (W.R.M.S.)
- Revolution adjustment range: ±6% (each rotation speed adjustable independently)
- Weight 4.0kg (Platter)
Tonearm section
- Type: Static balanced, S shaped, universal type
- Bearing: Concealed knife edge
- Effective length: 222.5mm
- Overhang: 18mm
- Tracking error angle: ±3° or less
- Adjustable height range: 15mm
- Applicable cartridge weight 4 to 10g (including headshell 17 to 23g)
- Anti-skating: 0 to 4g
Main unit
- Power source: 230V～50Hz / 115V～60Hz
- Power consumption: 6W
- Net weight: 15.8kg (main unit), 17.2kg (with dust cover)
- Accessories: Platter, Headshell, Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment, phono cable (DIN→RCA : already installed in theunit), Power cable
- Dimensions: 465(W) × 133(to the upper surface of the platter) (H)×393(D) mm
Product Description

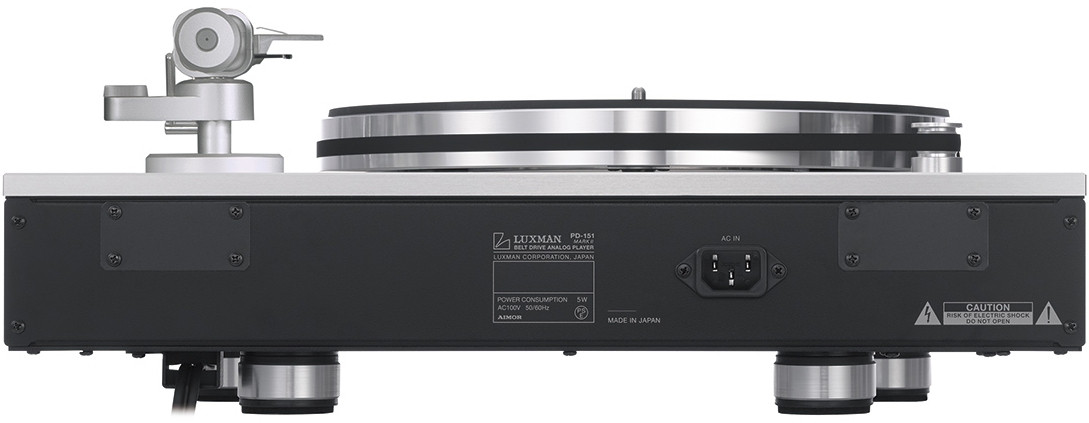

Luxman PD-151 MK II turntable is an updated and improved version of the original PD-151. Luxman have taken what was an already impressive turntable and reimagined the internal construction to elevate the PD-151 to a new level of performance whilst retaining the same Luxman DNA that made the original so highly regarded.
You also have the option to order with the Luxman LMC-5 MC phono cartridge.
Analogue Purity
The PD-151 MK II is a pure analogue turntable designed using the PD-171A / AL and the first generation PD-151 as a starting point with the aim of improving the internals and making it more accessible than ever before.
Featuring a 10mm aluminium top panel and a 4kg top platter with an all new S shaped tonearm – taken from the LTA-309 this only starts to scratch the surface of new features that this incredible turntable can offer.
New Motor
A major player in the improvement to the PD-151 MK II is the introduction of an all new brushless DC motor that is more power efficient than its predecessor that enables a more precise and smooth drive train that will deliver your vinyl as you would want it.
Underslung Chassis
Luxmans team of master engineers designed a underslung, suspended enclosure that brings all the components together under one piece of 10mm thick aluminium that retains rigidity whilst eliminating unrequired vibration.
This enables a separation from power & motor using rubber dampening that enables the MK II to take what was learnt from the first generation into this new model.
Separate pitch adjustments
The PD-151 MKII already takes the near surgical level of refinement of playback to a new level with easy adjustments for 33-1/3, 45 and 78rpm (with suitable cartridge swap), allowing you to enjoy this beautiful turntable with your entire vinyl collection.
