Features
| Brand | Ortofon |
|---|
Tech Specs
- Output voltage at 1000 Hz, 5cm/sec: 5 mV
- Channel balance at 1 kHz: < 1 dB
- Channel separation at 1 kHz: > 27 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20.000 + 2 / - 1 dB
- Tracking ability @315Hz, tracking force: 80 µm
- Compliance, dynamic, lateral: 22 µm/mN
- Stylus type: Nude Shibata
- Stylus tip radius: r/R 6/50 µm
- Cantilever material: Boron
- Tracking force range: 1.5-1.7 g (15-17 mN)
- Tracking force, recommended: 1.6 g (16 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.2 kOhm
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge colour, body/stylus: Black/Black
- Replacement stylus unit: 2M Black LVB 250
- Interchangeable styli: 2M Black and 2M Bronze
Product Description

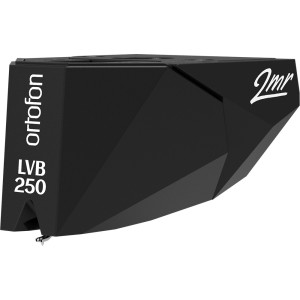

Ortofon 2MR black LVB 250 moving magnet MM phono cartridge is essentially a less tall version of the excellent 2M black LVB, designed for turntables from brands like Rega where a low-form factor cartridge is needed and/or where VTA is not adjustable and the standard 2M model is too high.
This shorter height is also useful if you wish to upgrade your turntable with a thicker turntable mat or platter upgrade and need to account for this with a shorter height cartridge, again rather than adjusting VTA on the tonearm.
Key Features
- All-purpose cartridge that delivers an open, dynamic sound
- Tipped Elliptical diamond stylus profile
- Overhead mounting cartridge for installing into a headshell
- Moving magnet cartridge with removable stylus
- Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
- Can be upgraded with other styli from the Ortofon 2M range
- Anti-resonant Hopelex body
- Reduced-height 2MR cartridge body
