Features
| Warranty length | 2 Years |
|---|---|
| Brand | Ortofon |
Tech Specs
- Frequency: 10-100 kHz +/- 1 dB
- Step up: 12dB (1 kHz) CA/CG 25/65 Di MkII
- Input impedance: 5 Ω - 50 Ω
- Load impedance: > 47 kΩ // 200 pF
- Dimensions (WHD): 65mm × 39mm × 98mm
- Weight: 410 g
Product Description

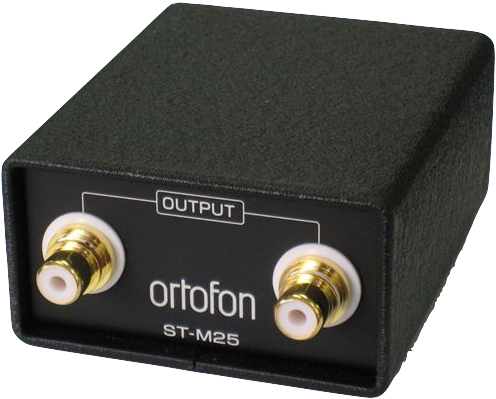

Ortofon ST-M25 is a MC transformer designed exclusively to raise the voltage output for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII cartridges.
Why the ST-M25?
The voltage output of the SPU Mono CG 25 Di MkII and the SPU Mono CG 65 di MkII cartridges are too low to connect to the MM-INPUT terminal of amplifiers or phono-EQ because it results in a lower sound volume. That’s why the ST-M25 MC transformer is here, to increase voltage by 12dB to match that of a moving-magnet (MM) input.
These two cartridges provide the same monaural sound from both L & R channels; therefore the L & R channels of the cartridges should be connected through the ST-M25 transformer, then the amplifier, then to the final output (L & R speakers) to enjoy the top performance of monaural sound coming from your speakers.
