Features
| Warranty length | 2 Years |
|---|---|
| Brand | Pro-Ject |
Tech Specs
TURNTABLE
Drive principle: belt drive
Tonearm 9” cc EVO (Carbon)
Platter: MDF/vinyl Sandwich (300mm)
Mains bearing: inverted stainless steel
Bearing with: ceramic ball/plate
PERFORMANCE
Speed: 33, 45 (electronic speed change)
Wow & flutter: 33: +/- 0.10% 45: +/- 0.10%
Speed drift 33: +/- 0.10% 45: +/- 0.06%
Signal to noise - 73dB
Effective arm length: 230 mm
Effective arm mass: 8.0 g
Overhang: 18mm
Tracking force 10 - 35mN
POWER
External supply: 15 volts DC / 800mA
Connect: 110/120 or 230/240V (50/60Hz)
Consumption 6W (max)/< 0.3w (standby)
COUNTERWEIGHTS
5-7.5 / 7-10 / 9-11 / 10-14g
GENERAL
Dimensions (HWD): 460 x 183 x 365mm
Weight: 11.0 kg net
Product Description

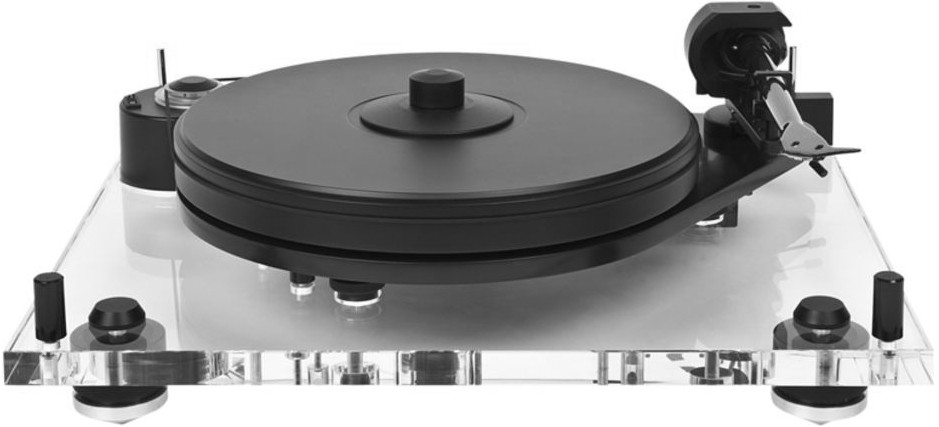

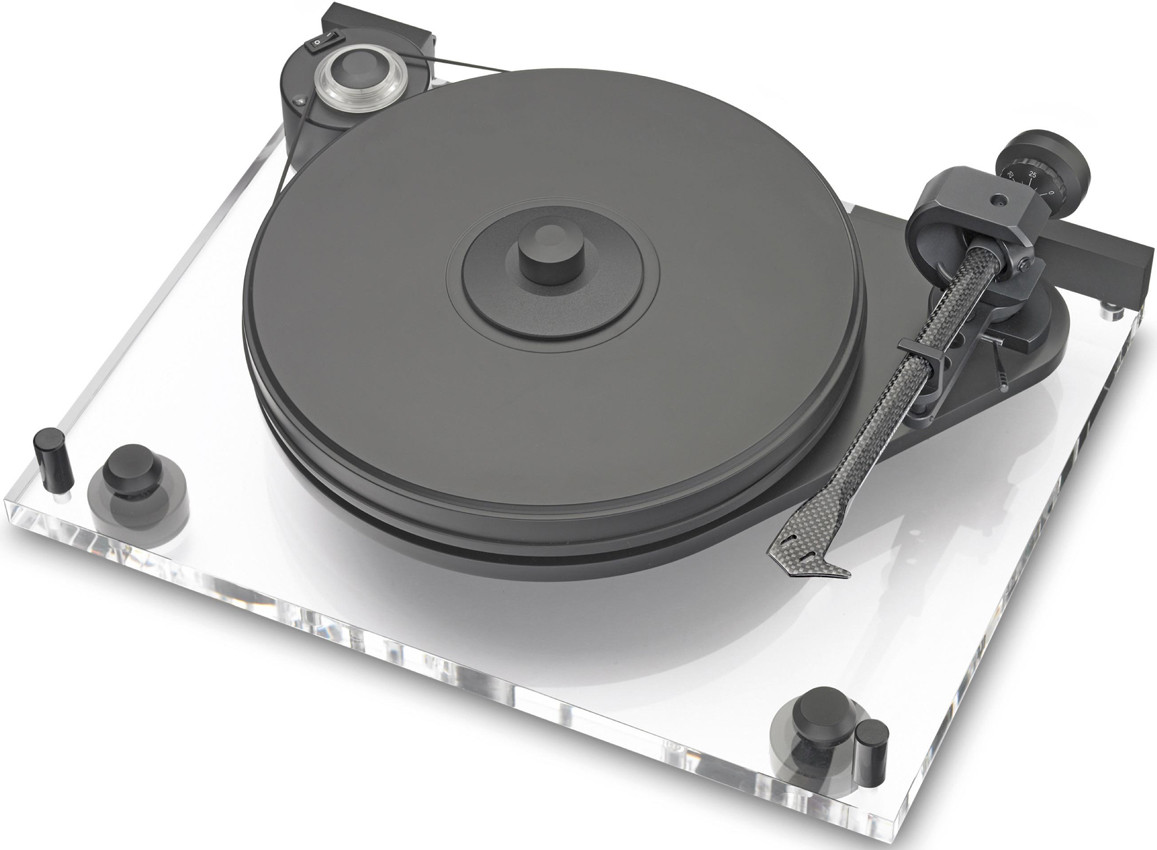

The Pro-Ject 6 Perspex SB turntable is designed for the modern vinyl listener, and features an acrylic chassis, dust cover and pre-mounted Pro-Ject 9" 9cc Evolution tonearm.
Subchassis
The transparent acrylic plinth stands on three individually height-adjustable TPE-damped aluminium cones and carries the motor and the sub-chassis. The sub-chassis, made of Corian, rests on three magnetic fields. A magnetic sub-chassis suspension system avoids parasitic noise normally caused by conventional spring mechanism. A supplied spirit level allows easy adjustment of the sub-chassis. A quiet running AC motor unit drives the platter's outside edge via a belt. It does incorporate an advanced DC-driven motor control, that ensures perfect speed stability and electronic speed change.
Resonance Optimised
The resonance-optimised platter is a sandwich construction utilising a fine-balanced medium density fibre platter and a 4mm thick flat-ground layer of vinyl and a screw-down metal record clamp. It runs on an inverted bearing with stainless-steel axle carrying a ceramic ball/plate bearing.
Carbon Fibre
The headshell and armtube of high-end tonearm 9cc Evolution are fashioned from a single piece of carbon-fibre. A conical armtube avoids standing wave reflections. Inverted tonearm bearing comprises four hardened stainless tips in ABEC 7 spec ballraces. Supplied counterweights are suitable for cartridges weighing between 5-7.5/ 7-10/ 9-11 or 10-14g.
Connection
A top-grade connection cable `Pro-Ject Connect it E´ iwith RCA connectors is supplied (123cm). A dust cover is included.
Features
- Acrylic Plinth
- Sub-chassis made from Corian with magnetic suspension
- Acoustically inert sandwich construction Platter
- combination of MDF and vinyl layer as mat
- Inverted main bearing with ceramic ball/plate
- Belt drive with AC motor with DC driven AC generator
- Electronic speed control with 33/45 rpm switching
- Pre-mounted 9" tonearm 9 cc Evolution
- Tonearm bearings with ABEC 7 ball-races
