Features
| Warranty length | 3 Years |
|---|---|
| Brand | PS Audio |
Tech Specs
- Location: Indoor use only
- Duty Cycle: Suitable for continuous operation
- Moisture Sensitivity: Not sealed against moisture
- Operating Humidity: <80%rh
- Storage Temperature: -40C to +40C
- Operating Temperature: 0C to 40C
- Max Operating Altitude: 12,000' (3500m)
- Electrical Supply Nominal Rating: 230V 10A 50/60Hz
- Nominal Input Voltage: 200 - 285 VAC
- Maximum Continous Load: 2000VA
- Maximum Peak Load: 3600VA
- Voltage Regulation: >1V
- Output Distortion (Resistive Load): <0.5%
- Output Distortion (Reactive Load): <0.5% (0.1% Typical)
- Output Impedance: <0.005 Ohm
- Noise Reduction: 100kHz - 2MHz > 80dB
- Efficiency @ 300VA: >85%
- Input Frequency: 45 - 65 Hz
- Under Voltage Limit: Continous -10% of setting 15 sec, duration -15% of setting
- Over Voltage Limit: Continous 5% of setting 15 sec, duration 10% of setting
- Energy Dissipation: 5040J
- Peak Current Surge: 180,000A
- Clamp Level: 775V
- DC Trigger Configuration: Tip Positive
- DC Trigger Voltage: 5 - 15Vdc
- Unit Dimensions (W x D x H): 17" x 14" x 11" (43cm x 36cm x 27.9cm)
- Unit Weight: 96lbs (43.5kg)
- Shipping Dimensions (W x D x H): 23" x 22" x 17" (58cm x 55.8cm x 43cm)
- Shipping Weight: 105lbs (47kg)
Product Description

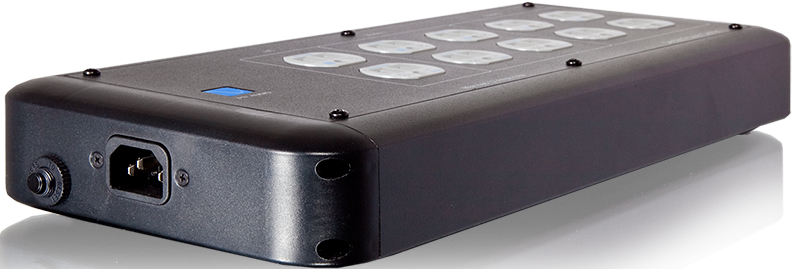

PS Audio Dectet Power Centre is the top of it's class entry level model from PS Audio's range of high performance power blocks. It is an active power centre with three zones and 10 outlets that can produce clean, AC power for a complete audio system.
Revive your Music
Retrieve musical details that have previously been missing due to defected power supplies. The Dectet Power centre filters the power for each part of your audio system, reviving your audio completely. The Dectet prides itself on providing guaranteed enhancements to the musicality, dynamic range, harmonics and soundstage of your audio making for a spacious and stimulating performance.
Isolated Zones
This power centre is equipped with three isolated zones to handle your equipment; one for high current units such as large power amplifiers subwoofers and receivers, one for analogue and a third isolated zone for digital and video components. Two of the isolated zones filter both common mode and differential mode noise. Isolating the interaction between the digital components allows each musical instrument and vocal to be heard with the most clarity, and separation.
Noise Filtering
The Dectet Power Centre provides efficient filtration of common mode and differential mode noise. Through 2 double filtration zones called IsoZones, the power centre is able to filter out the unwanted noise caused by the power supplies in electronic devices and RFI. What this results in is a better sounding system and a dynamic performance.
Internal Voltage Protection
The Dectet's internal voltage measuring system continually monitors the ten receptacles and automatically shuts down if the voltage ever exceeds 20% or falls below the nominal 25% voltage. This ensure full protection of all devices connected to the power centre. Once power levels recover to normal, the Dectet's power is restored which protects all connected devices from possible damage.
Power Your Entire System
Whether you have an entire home cinema system or just a few components, the Dectet is designed to bring clean, safe and limitless AC power to your equipment at a great value. Power plant regenerators can often be costly, so the Decter Power Centre provides the best next thing for high end protection and power.
Key Features
- 3 isolated zones
- 10 receptacles
- Individually hand wired outlets
- Common and differential mode filtering
- Over/under voltage protection
- Surge protection
- Spike protection
- Handles an entire system
