Features
| Warranty length | 3 Years |
|---|---|
| Brand | PS Audio |
Tech Specs
- Location: Indoor use only
- Duty Cycle: Suitable for continuous operation
- Moisture Sensitivity: Not sealed against moisture
- Operating Humidity: <80%rh
- Storage Temperature: -40C to +40C
- Operating Temperature: 0C to 40C
- Electrical Supply Nominal Rating: 230V 10A 50/60Hz
- Nominal Input Voltage: 200 - 270 VAC
- Maximum Continous Load: 300VA
- Maximum Peak Load: 1000VA
- Voltage Regulation: <0.2%
- Typical Output THD: <0.3%
- Output Impedance: <0.008 Ohm
- Efficiency @ 300VA: >85%
- Input Frequency: 45 - 65 Hz
- Energy Dissipation: 850J
- Peak Current Surge: 60,000A
- Max Surge Voltage: 6,000V
- Clamp Level: 800V
- DC Trigger: None
Product Description

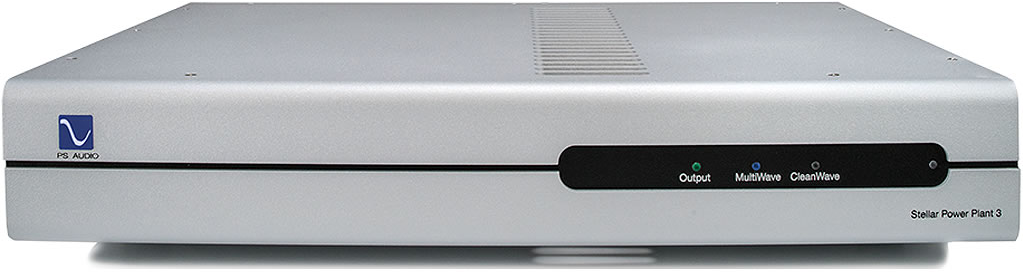

PS Audio P3 power plant regenerator is a power generating system designed to regenerate incoming AC power and convert it into clear and distortion free currents to power your precious hi-fi or audio visual equipment.

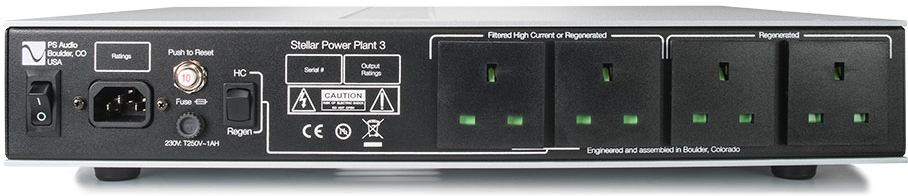

This model features 4 outputs. These can be configured as 3 regeneration plus 1 high pass conditioner, or can we configured as 4 regeneration outputs.
This model is an excellent choice for small systems (class D amplifiers) or for front end sources only. For more powerful amplifiers we recommend choosing a P12.
For the best performance, use this in conjunction with PS Audio mains cables.
Power your Whole System
This power generator is the smallest model from PS Audio, yet is capable of powering even the largest high-end components. This unit takes the old AC and delivers regenerated power to all source equipment as well as a high current filtered output to drive units such as large power amplifiers.
How does it work?
Once taking in the AC power and converting it into DC, the P3 Power Plant then uses exclusive PS Audio technology to regenerate and produce new sine-wave-perfect, regulated high current AC power. During this process of regenerating the power, any problems detrimental to the performance of your equipment are eliminated such as distorted waveforms, low voltage, lagging power and unwanted noise.
Regenerated Power
The quality of power is instrumental to the quality of sound you will get from your high end audio equipment. P3 Power Plant Regenerator employs a large power amplifier which is powered from a low distortion sine wave generator that can be controlled from the touch screen panel on the front of the Power Plant. The result is a distortion free power current that makes your equipment sound so much better.
Key Features
- 750 VA output
- Built in Boulder
- Whisper cooling fan
- 100% regenerated AC
- Two filtered High Current outlets
- Control over the web or network
- Adjustable output voltage
- MultiWave
- CleanWave
- Pure Sine Wave
- Remote Control
