Features
| Warranty length | 2 Years |
|---|---|
| Brand | Q Acoustics |
Tech Specs
- Audio Sources: DAB / DAB+ / FM with RDS
- Bluetooth: Version 5.0, A2DP
Analogue Input
- Type: 3.5mm stereo
- Sensitivity: 350mV
- Max level: 1.5V
- Impedence: 10k ohm
Optical Input
- Type: mini TOSLINK
- Resolution: 16bit 48kHz
- Speaker Outputs: Left & right, stereo or dual mono
Analogue Output
- Type: 3.5mm stereo
- Modes: Fixed or variable
- Max level: 670mV
Amplifier
- Type: Class D
- Continuous power: 2 x 25W @ 6ohm
- THD: 0.07% @ 1W / 0.2% @ rated power
- SNR: >75dB @ Rated power
- Frequency response: 20Hz - 20kHz +/- 1dB
IP Ratings
- E120 wall panel: IP54
- Splash proof remote: IP67
- Control: Touch sensitive buttons, Infra-red remote control, Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name
- Alarms: x2 once, daily, weekdays, weekends
Power Supply
- Input: 100 - 240V AC 50/60 Hz
- Output : 22V DC 1.5amps
- Dimensions (HxWxD): 30mm x 50mm x 115mm
Power Consumption
- Typical: 10W
- Standby: <1W
- Deep standby: <0.5W
Wall Panel
- Net weight: 0.251kg
- Dimensions (HxWxD): 91mm x 151mm x 33mm
Speaker Cable Supplied
- Gauge: 19 AWG
- Lengths: 2 x 7m
Power Cable Supplied
- Gauge: 16 AWG
- Lengths: 5m
- Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female
Product Description
Q Acoustics E120 wireless audio system is designed to deliver clean and precise control to your speakers without any unnecessary bits - a clean and simple solution.
Free Yourself
As soon as you install the E120, you free yourself from wires and stream directly to your in-situ speakers from a multitude of sources such as your laptop, iPad, phone or any item with Bluetooth built-in thanks to the Bluetooth 5.0 capabilities of E120. You shouldn’t fall out of range.
If you prefer to stream your favourite radio station, then you can take advantage of 5 programmable presets to dial in your DAB or FM station to ensure that everyone is kept happy.
Take It To The Next Level
You can truly take your listening experience to another level, with digital and analogue connections built into this unit. Q Acoustics has truly made a game changer in the home audio market allowing for a even bigger soundstage for your TV system, a Subwoofer or even a further E120 unit to create a whole home system that is beyond comparison.
Put It Where You Want It

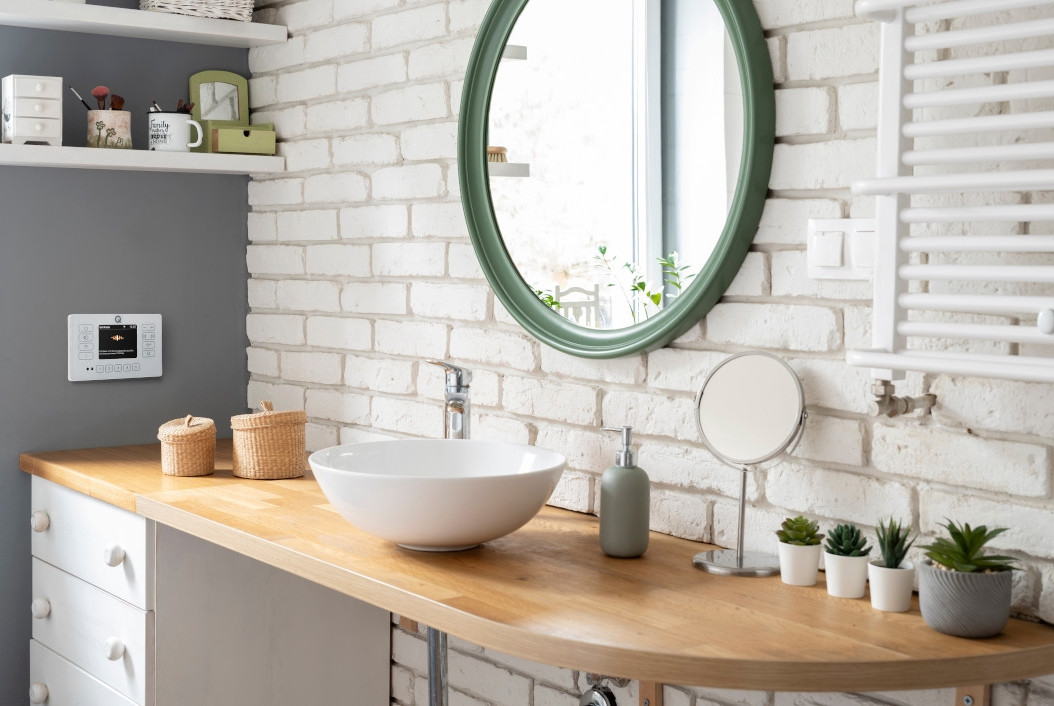

The E120 boasts an IPS4 rating designed to enable you to find freedom in installing the unit in any room where there is moisture for example the kitchen, which when you combine with a splash proof remote (or the accompanying app) you can enjoy your favourite piece of music, podcast or radio station whilst you enjoy something to eat.
Super Smart

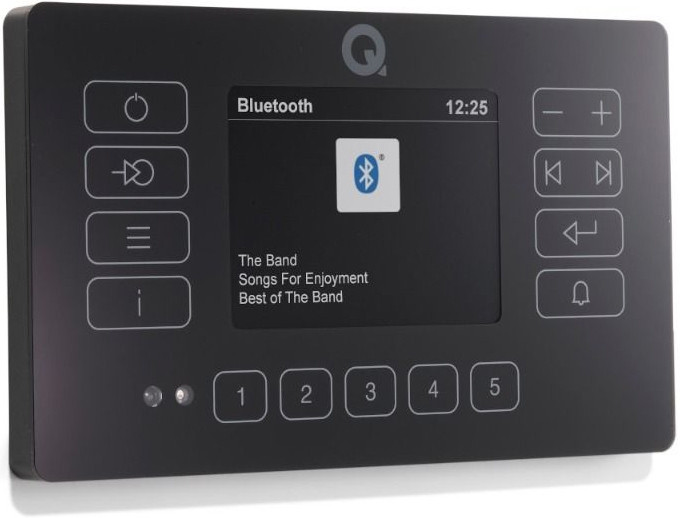

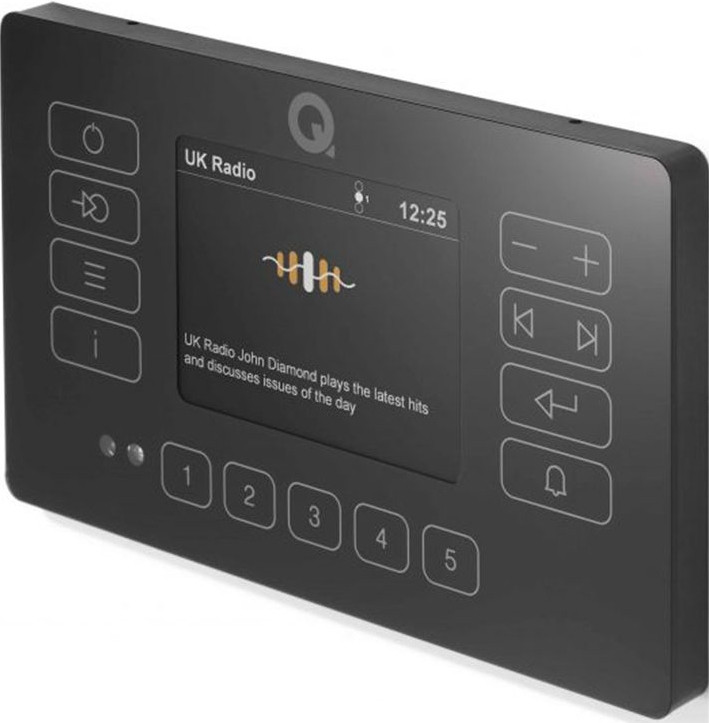

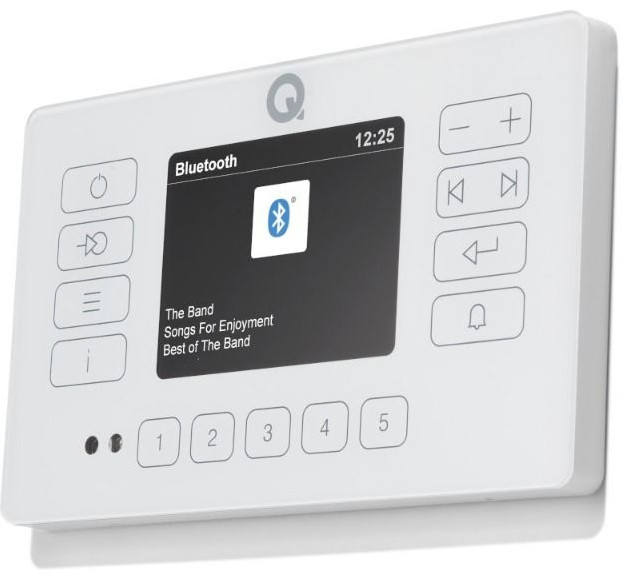

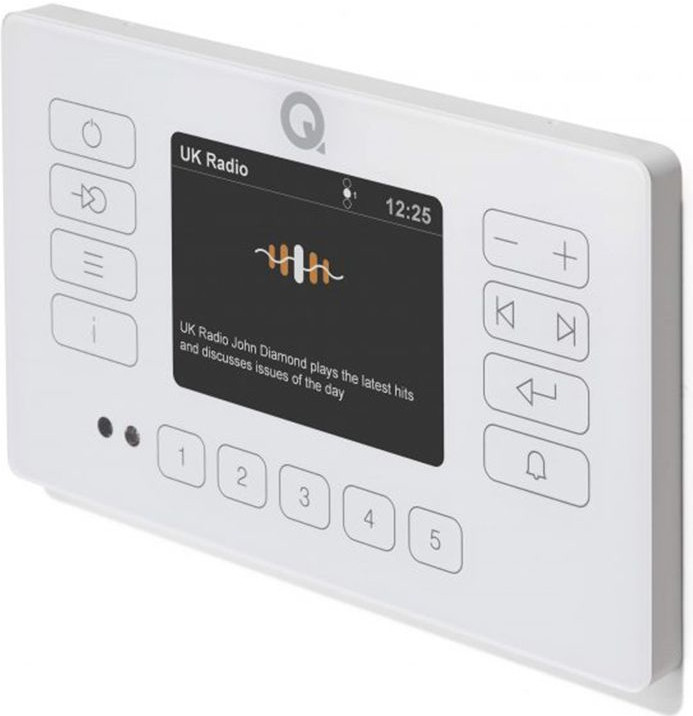

The display on the E120 is something to behold, featuring an impressive 3.2” colour display and touch-sensitive controls, Q Acoustics has developed a system that truly enhances your home setup to a new height.
Plays Nice
Q Acoustics have tried to make the E120 compatible with any speakers thanks to a fantastic class D amplifier which outputs 2 x 25W of power (which is tuned in for Q Acoustics own in-ceiling range) at 6 ohms, whilst you can plug in your own setup that can be driven at 6 – 8 ohms making this unit a one-stop solution to your home setup needs.
