Features
| Warranty length | 1 Year (2 Years on registration) |
|---|---|
| Brand | Unison Research |
Tech Specs
- Stage: Dynamic Class A Power
- BJT Double Complementary Pair
- “Super-Symmetric” Configuration
- 100/180/290W p/Ch (8/4/2Ω)
- Filter Capacitance: 80000µF
- Biasing: Dynamic Class A
- Valves: 2 x ECC83 (12AX7)

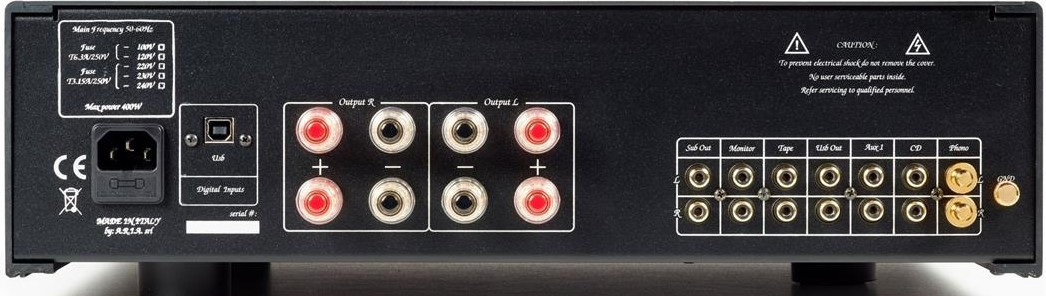

- In: 2x Anlg Line (RCA), USB, Tape
- Analogue Phono In (RCA): MM
- Fixed RCA Anlg Line Out: Tape, DAC
- Var RCA Anlg Line Out: Stereo Sub
- Speaker Outputs: 4 + 4 (Bi-Wirable)
- Dimensions (WDH): 43.5 x 43 x 13cm
Product Description

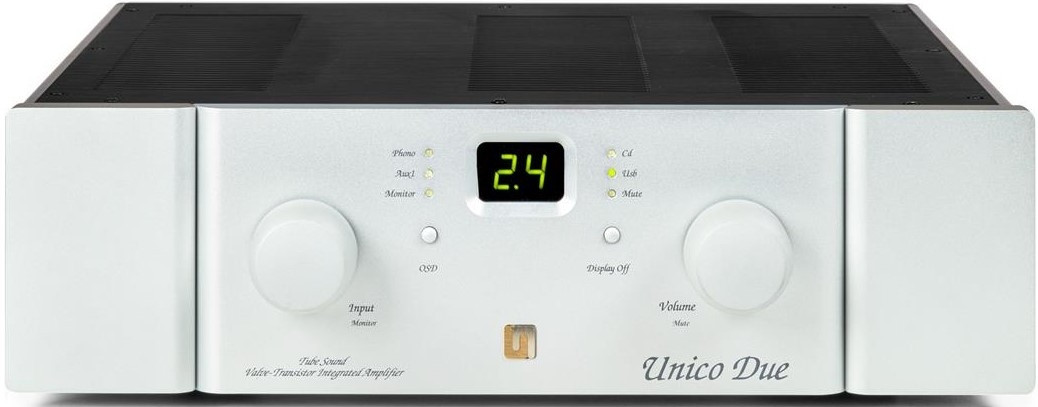

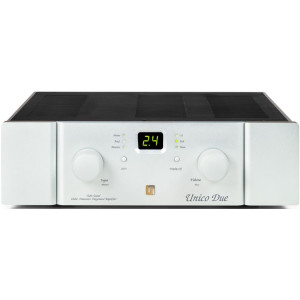

Unison Research Unico Due is a high-performance integrated amplifier that combines a valve pre-amplifier with a solid-state output stage for a class-leading performance that draws heavy inspiration from the flagship Unico 90 and Unico 150 models.
Circuitry
The electronic circuitry of the Unico Due has been completely redesigned from the ground-up. By working to the same brief as previous Unico models, Unison Research have introduced changes in the circuitry, the power supply method, the pre-amp stage, the power amp stage and with the variety of settings and inputs. All based on generously sized 105µm tracks and using only the finest possible components, the circuit board is fed by a sophisticated power supply method that features a specially designed encapsulated transformer for increased efficiency and superlative sound.
Minimal Interference
The heart of the preamplifier stage is based around two ECC83 double triodes (one per channel), which were purpose-chosen after hours of listening tests. Configured as a gain stage followed by a cathode-follower, the circuit’s low output impedance efficiently drives the power stage that follows for minimal electrical interference.
Power Amplifier
The power amplifier stage itself features a sophisticated implementation of MOSFET transistors resulting in 100W per-channel output (8Ω). The net result of which is a clean, powerful output with incredibly low levels of distortion. By reducing distortion so significantly in this stage, Unison Research have ensured that only the sonic character of the valves remain – staying true to the fundamental purpose of the Unico line.
Modern System Hub
The Unico Due stands out as a modern system hub not just thanks to its multiple line-level inputs, but also as a result of its built-in USB DAC and phono stage. The USB input features an ESS Sabre DAC ES9018K2M with jitter eliminator circuit, offering support for audio files up-to 32-bit/384kHz PCM and DSD256. Elsewhere, the integrated phono stage module is pre-set to accept Moving Magnet (MM) cartridges, but can be modified by a service engineer to cater for Moving Coil (MC) devices.
Convenience
Additionally, the Unico Due has settings for AV passthrough, subwoofer output, DAC output, a TAPE loop and to adjust channel balance. The Unico Due is a powerful, easy to accommodate amplifier with a wide range of features and a sonic presentation that boasts all the benefits of valve technology with none of the shortcomings.
Key Features
- High-performance integrated amplifier
- Hybrid technology combines a valve pre-amp with solid-state power stage
- USB input for high-quality playback from a PC or laptop
- Built-in phono stage for easy turntable integration
- Powerful 100W output (8Ω)
- Multiple Inputs and Outputs for easy system building
- AV passthrough input
Customer Reviews
-
Wajid
3 May 2021
I always miss this amp. It sounds so lovely. It has enough power to render large orchestral works well, but where it really shines is for vocal, acoustic or chamber music. There is joy, there is mystery, there is drama, and it doesn't bite my head off. I'm not in love with the DAC implementation, but that's a side quest. It doesn't have the most clinically revealing sound but its no slouch either. Bass is reproduced with realism and sound stage is beautifully done. A nice rainy weekend, a cigar, a nice drink, this amp in my setup and I'm good.
