Features
| Power Per Channel (8ohms) | 70W |
|---|---|
| Warranty length | 3 Years (5 Years on parts after registration) |
| Colour | Black |
| Brand | Naim Audio |
Tech Specs
AUDIO INPUTS
Analogue Inputs: 1 x 4-pin DIN
Input Impedance: 18kΩ
AUDIO OUTPUTS
Gain: +29dB
Frequency Response: -3dB at 3Hz - 50kHz
Power Outputs: Naim pre-amplifier
SPEAKER OUTPUTS
Speaker Outputs: L & R, 4mm “banana” sockets
Power Output: 60W/channel, 8Ω
Transient: 260VA
POWER
Mains Supply: 100V, 115V, 230V; 50 or 60Hz
Power Consumption (quiescent): 10VA
PHYSICAL
Dimensions: 70 x 432 x 301mm (H x W x D)
Weight: 7.5kg
FINISH
Front: Brushed and black anodised
Case: Black powder coated
Product Description

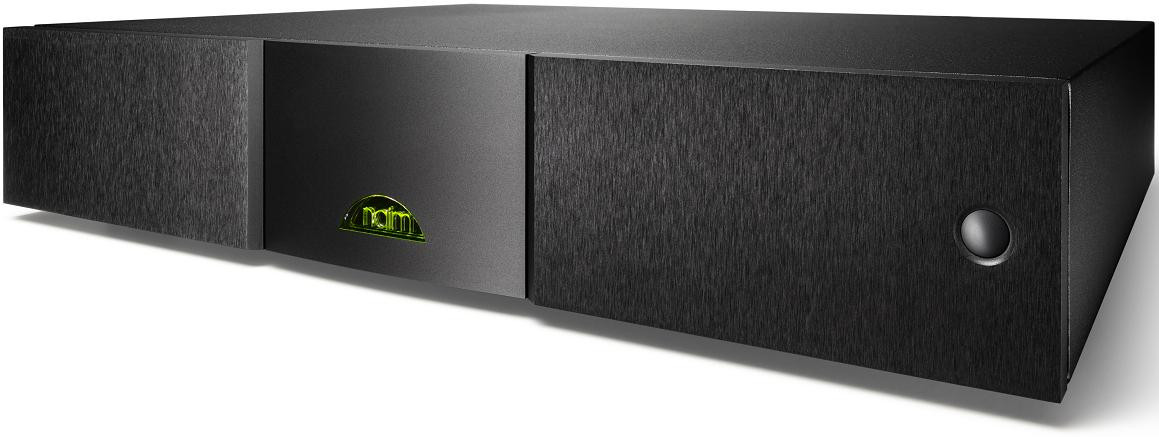

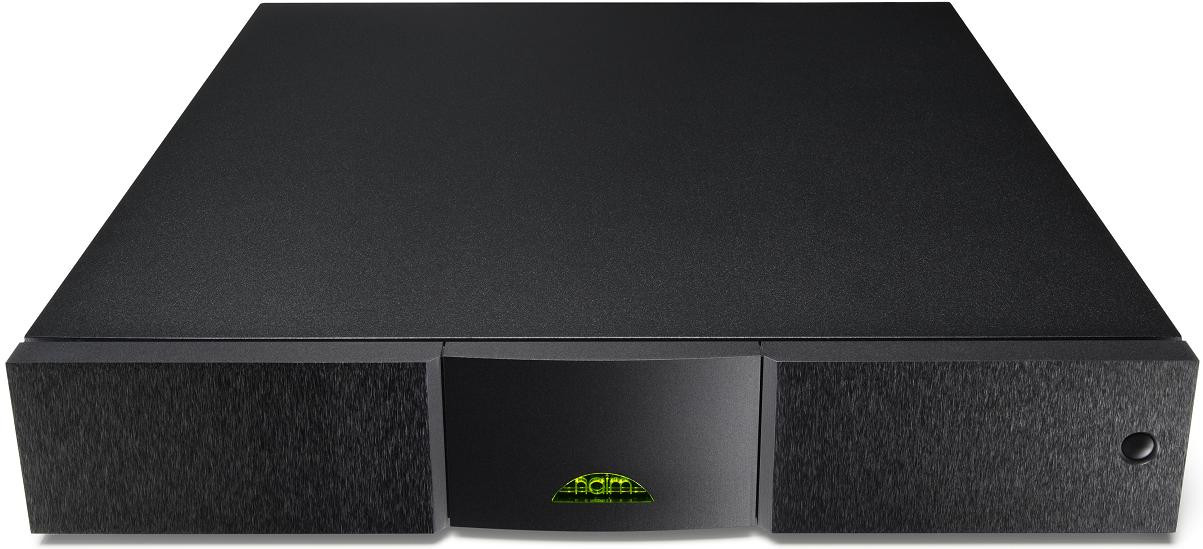

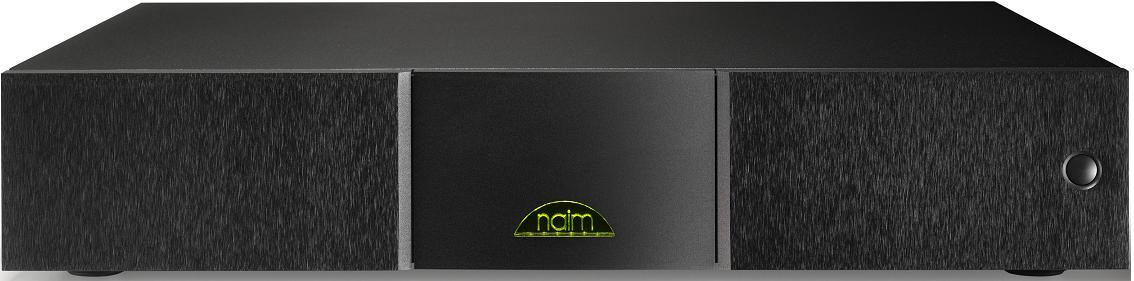

Naim NAP 200 power amplifier was first designed by Naim founder Julian Vereker in 1971, and is a special power amp with a long heritage that has Naim musicality written into its DNA. An excellent power amplifier at an even more attainable price than the NAP 250 DR.
First Production Amp
As their first production amplifier, no single product encapsulates our philosophy better. Its design is simple and uncompromising, with a single-minded focus on one thing: creating an enduring musical connection with the listener. More recently the NAP 200 has benefitted from the years of research that went into the NAP 500 amplifier. Many of the developments from the 500 Series project have helped to revitalise its electronic design and componentry bringing significant and hard-earned gains to performance. Beneath this new technology however, it retains the values which helped to make it an icon: simplicity, focus and sheer musicality.
Recently Updated
The NAP 200 has been recently revitalised and reintroduced with the addition of a Naim DR (Discrete Regulator) module to power its partnered Naim preamplifier. This comes alongside small improvements to some internal componentry and layout that combine to lift its musical performance even further than the original. Like the flagship NAP 500, the NAP 200 uses a new circuit design with improved earthing arrangements built on a very high quality, anti-resonance main audio circuit board. Anti-vibration, resonance-controlling feet serve to protect the sensitive internal components from microphonic vibration and unwanted external interference.
Premium Quality
A new, top-quality 430VA toroidal transformer provides more than 300VA of transient power. Separate windings provide dedicated left and right channel rectified power supplies with two smoothing capacitors per channel. The NAP 200 also has a separate winding providing a preamplifier power supply. This enables it to be used in a two-box amplifier configuration with a Naim preamplifier such as the NAC 202. The Naim NAP 200 is stable into any load and can drive a 2-ohm load for long periods of time.
We are here to help find the right system for you. As a suggested starting point, you may want to consider partnering the NAP 250 with the following:
Separates System:
- ND5 XS2
- NAC 202
- CDX2
Upgrade Paths:
- Power-Line
